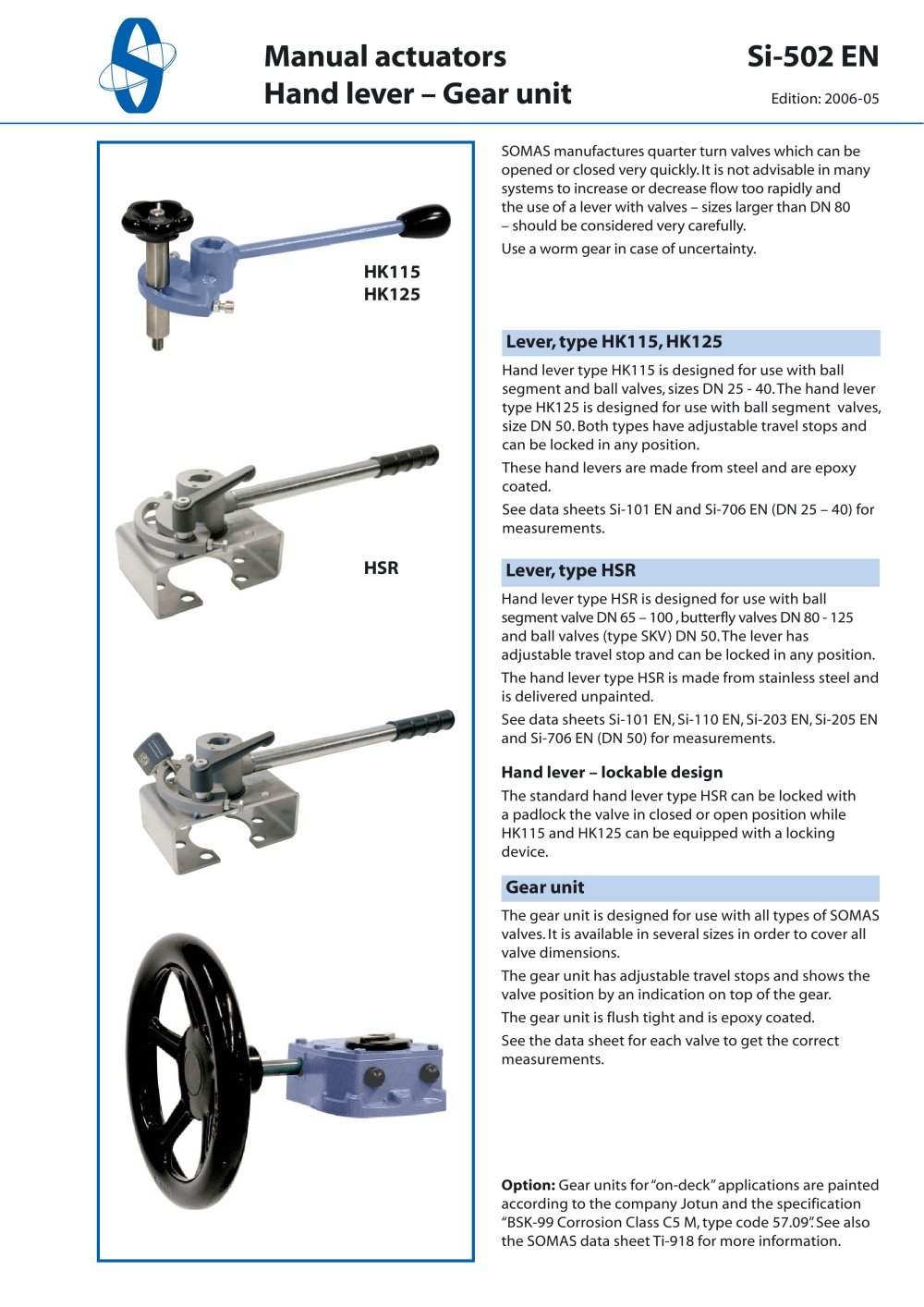

Edition: 2006-05SOMAS manufactures quarter turn valves which can be opened or closed very quickly. It is not advisable in many systems to increase or decrease flow too rapidly and the use of a lever with valves ֖ sizes larger than DN 80 should be considered very carefully. Use a worm gear in case of uncertainty. > Hand lever type HK115 is designed for use with ball segment and ball valves, sizes DN 25 - 40. The hand lever type HK125 is designed for use with ball segment valves, size DN 50. Both types have adjustable travel stops and can be locked in any position.These hand levers are made from steel and are epoxy coated. See data sheets Si-101 EN and Si-706 EN (DN 25 ֖ 40) for measurements. > Hand lever type HSR is designed for use with ball segment valve DN 65 100 , butterfly valves DN 80 - 125 and ball valves (type SKV) DN 50. The lever has adjustable travel stop and can be locked in any position.The hand lever type HSR is made from stainless steel and is delivered unpainted.See data sheets Si-101 EN, Si-110 EN, Si-203 EN, Si-205 ENand Si-706 EN (DN 50) for measurements. > The standard hand lever type HSR can be locked with a padlock the valve in closed or open position while HK115 and HK125 can be equipped with a locking device. > The gear unit is designed for use with all types of SOMAS valves. It is available in several sizes in order to cover all valve dimensions.The gear unit has adjustable travel stops and shows the valve position by an indication on top of the gear. The gear unit is flush tight and is epoxy coated. See the data sheet for each valve to get the correct measurements. Option: Gear units for on-deckӔ applications are paintedaccording to the company Jotun and the specification BSK-99 Corrosion Class C5 M, type code 57.09Ӕ. See also the SOMAS data sheet Ti-918 for more information. >

Open the catalog to page 1

Gear unit lockable designGear unit with limit switch > The gear units can be equipped with locking device in order to lock the valve in any position.The picture shows the hand lever in the position closed valveThe locking device can be mounted afterwards on existing units. > The gear units can be equipped with limit switches and transmitters for electrical indication.Check with SOMAS to get more information about the selection of switches. > The standard mounting for hand lever and gear unit is perpendicular to the pipeline as shown in position A (see figure). Position C is available on...

Open the catalog to page 2
