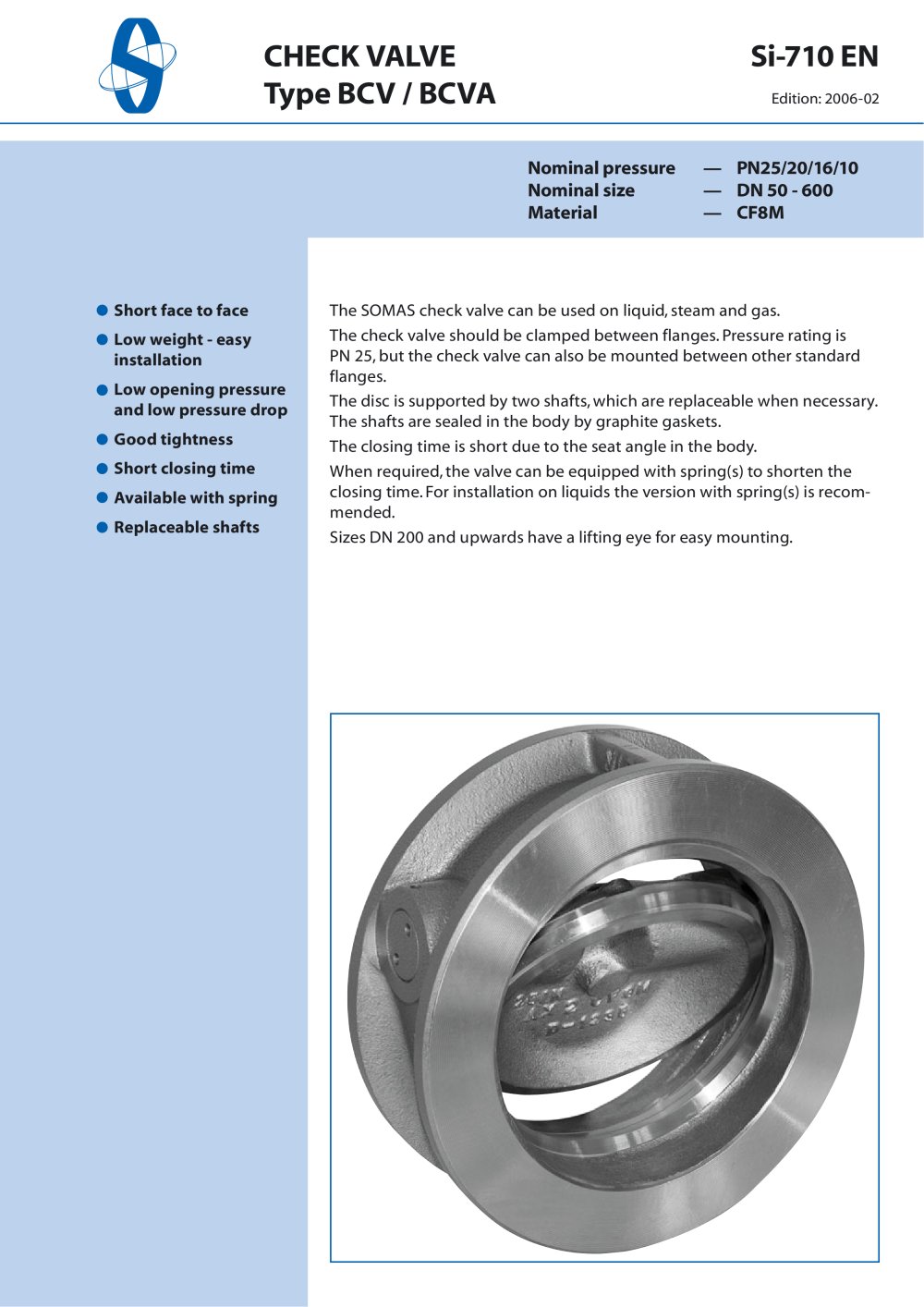

Short face to faceLow weight - easy installationLow opening pressure and low pressure dropGood tightness Short closing time Available with spring Replaceable shafts The SOMAS check valve can be used on liquid, steam and gas.The check valve should be clamped between flanges. Pressure rating is PN 25, but the check valve can also be mounted between other standard flanges.The disc is supported by two shafts, which are replaceable when necessary. The shafts are sealed in the body by graphite gaskets.The closing time is short due to the seat angle in the body. When required, the valve can be equipped with spring(s) to shorten the closing time. For installation on liquids the version with spring(s) is recom- mended.Sizes DN 200 and upwards have a lifting eye for easy mounting. >

Open the catalog to page 1

2 Tightness class > Corresponding to ANSI B16.104 Class V at actual pressure test. Working pressure and temperatures > Max working pressure bar (E) at working temperature C Pressure test 20а 50 70а 100 150а 200 250а 300 350а 400 Open valve Closed valve 25 23 22 20,5 19 18 17,5 16,5 16 15,5 38 25 PN 25 (1) bar (E) water 20аC Diagram showing pressure drop > With spring, vertical pipeWith spring, horizontal pip Without spring, vertical pipe Without spring, horizontal pipe Pressure dropm wc Q m3/h size="-2">

Open the catalog to page 2

BCV = With spring A = CF8M N = 1.4460, Nickel coated BCVA = Without spring > A = CF8M 1 = Without bearing A = Wafer type > Z = Integrated seat 1 = Graphite 5 = PN 25 >

Open the catalog to page 4
