SolaHD offers surge protection and filtering devices to protect telecommunication, networking, computing, and production equipment from transient spikes, noise, and harmonic distortion. A comprehensive protection strategy involves multi-stage protection to ensure maximum productivity by clamping high-energy surges and filtering noise.
High-energy transients threaten electronic equipment. Emerson Network Power recommends installing Surge Protective Devices (SPDs) on key panels to limit high-voltage spikes. These devices are installed at service entrances, distribution panels, and points of use.
Active Tracking Filters protect microprocessor-based equipment from low-energy transients and high-frequency noise using a multi-stage hybrid design to attenuate impulses that standard devices cannot handle.
With the rise of automated controls and telecommunications, low-voltage surge protection is crucial. Protecting low-voltage cable routes is as important as protecting equipment from high-energy impulses.
The STV 200/400K Series offers protection from voltage transients and electrical noise. It features a modular design for installation flexibility and robust construction for severe exposure locations. It includes patented circuitry for monitoring protection modes and remote monitoring capabilities. These devices meet UL and ANSI/IEEE standards and are available in various configurations.
The STV 100K series is designed for service entrance, branch panel, or dedicated sensitive electronic load installations. It provides all-mode protection, LED and audible alarm status indication, and high safety levels with thermal fusing.
This series offers point-of-use protection at the equipment level, ideal for electronic control cabinets in harsh industrial environments.
SolaHD's range of surge protection and filtering devices ensures the reliability and performance of sensitive electronic equipment across various industrial environments.
- Offers 50,000 amps of surge protection with sinewave tracking and LED status indication.
- Designed for control cabinets, industrial automation, and building automation systems.
- Features include compact design, low clamping levels, and easy installation.
- UL recognized to Standard 1449, 2nd Edition, with a 10-year warranty.
- Filters low voltage/high frequency noise using a low-pass or L-C filter.
- Attenuates noise to a minimum of 40dB in the frequency range of 50 kHz to 50 MHz.
- Designed for branch and control panels, factory automation, and telecommunications equipment.
- Non-degrading series filter technology with a 10-year warranty.
- Combines Active Tracking® filtration with surge protection for high energy transients.
- Attenuates high frequency noise to a maximum of 90dB in the range of 100 kHz to 50 MHz.
- Designed for single-phase applications up to 30 Amp with a 10-year warranty.
- Combines Active Tracking® technology with UL Listed surge protection.
- Attenuates normal mode noise to a minimum of 90dB in the frequency range of 100KHz to 50MHz.
- Designed to meet UL 1449, UL 1283, cUL recognized, and CE standards.
- Input Voltage: Ranges from 120 Vac to 480 Vac depending on the model.
- Operating Temperature: -40°C to +60°C.
- Response Time: Less than 0.5 nsec for surge protection devices.
- Warranty: 10 years across all products.
These devices are suitable for use in industrial automation, building automation systems, telecommunications, and other commercial equipment requiring protection from electrical surges and noise.
- Designed for single-phase applications with input voltages of 120V or 240V.
- Features include DIN Rail mounting, UL listed surge current capacity of 45,000 Amps, and transient protection in all modes (L-N, L-G, N-G).
- Operating temperature ranges from -40°C to +50°C, with a derating to 60% at +70°C.
- Includes LED status indication and Form C contact for remote monitoring.
- Complies with UL 1449, UL 1283, cUL, and CE standards.
- Designed for data/signal line surge protection in industrial environments.
- Includes models for Power-over-Ethernet (PoE), DIN Rail mountable protection, and coaxial protection for CCTV applications.
- Utilizes three-stage hybrid technology with gas tubes and silicon avalanche components for over-voltage transient protection.
- Features resetable fuses (PTCs) for sneak and fault current protection.
- Complies with UL 497B and NFPA 780 standards.
- Control panels, factory automation, industrial equipment, and programmable logic controllers.
- Networked industrial facilities requiring error-free data transmission.
- Protection for communication lines, CCTV systems, and telephone connections.
- High surge current capability and fast response time for effective protection.
- Easy installation with DIN Rail mounting and screw terminal connections.
- Long-term reliability with minimal maintenance requirements.
- Comprehensive warranty coverage for up to 5 years.
- Utilizes silicon breakover devices for overvoltage protection and resettable fuses (PTCs) for fault current mitigation.
- Features include <1 nanosecond response time, low capacitance, and line-to-line/line-to-ground protection.
- UL 497A listed with a 5-year limited warranty.
- Applications include telephone and data lines.
- Provides superior voltage regulation of ±1% using patented ferroresonant transformer technology.
- Offers surge protection, harmonic filtering, and galvanic isolation.
- Ideal for applications sensitive to voltage changes, such as industrial automation and sound systems.
- 25-year typical Mean Time Between Failure (MTBF) with no maintenance required.
- Offers noise filtering and surge protection with ±3% output voltage regulation.
- Provides harmonic filtering and galvanic isolation for circuit protection.
- Suitable for environments with dirty power, protecting equipment from impulses, swells, sags, and brownouts.
- 25-year typical MTBF with no maintenance required.
- Input voltage range: +10% to -20% of nominal for continuous load, with temporary surge/sag tolerance of +20% to -35%.
- Output line regulation: ±1% for CVS, ±3% for MCR 60 Hz, and ±5% for MCR 50 Hz units.
- Noise attenuation: 120 dB common mode, 60 dB transverse mode.
- Efficiency up to 92% at full load.
- Operating temperature range: -20°C to 50°C, storage temperature up to 85°C.
- Industrial automation, laboratory equipment, sound systems, and broadcast equipment.
- Protection for computers, printers, telephone systems, and security systems.
For technical support, contact Technical Services at (800) 377-4384 or visit www.solaheviduty.com.
The document outlines the specifications for various power protection and conditioning products, including noise levels ranging from 35 dBA to 65 dBA, and approvals for 60 Hz models such as UL10121 and CSA. The warranty is specified as 10 + 2 years.
Selection tables for single-phase MCR Portable Series are provided, detailing catalog numbers, voltage input/output, dimensions, ship weight, and receptacle types. The document also includes a comparison of BTU output for CVS and MCR series, with VA ratings ranging from 30 to 15000 VA.
The CVS power conditioners maintain output voltages to ±1.0% with input variations of ±15%. The document discusses input characteristics, frequency, power factor, and efficiency, highlighting a fast response time for transient changes in supply voltage.
Details on overload and short circuit protection are provided, with the ability to operate indefinitely at short-circuit conditions. The document also covers temperature stability, phase shift, and transient protection, emphasizing the advantages of ferroresonant power conditioners.
This section describes the features of the SOLATRON™ Plus Series, including rugged design, high overload capability, and surge protection. Mechanical and environmental specifications are listed, along with electrical specifications such as power ratings and efficiency.
The document concludes with noise suppression performance specifications and protection specifications, including under voltage and over temperature protection, as well as common and normal mode noise attenuation.

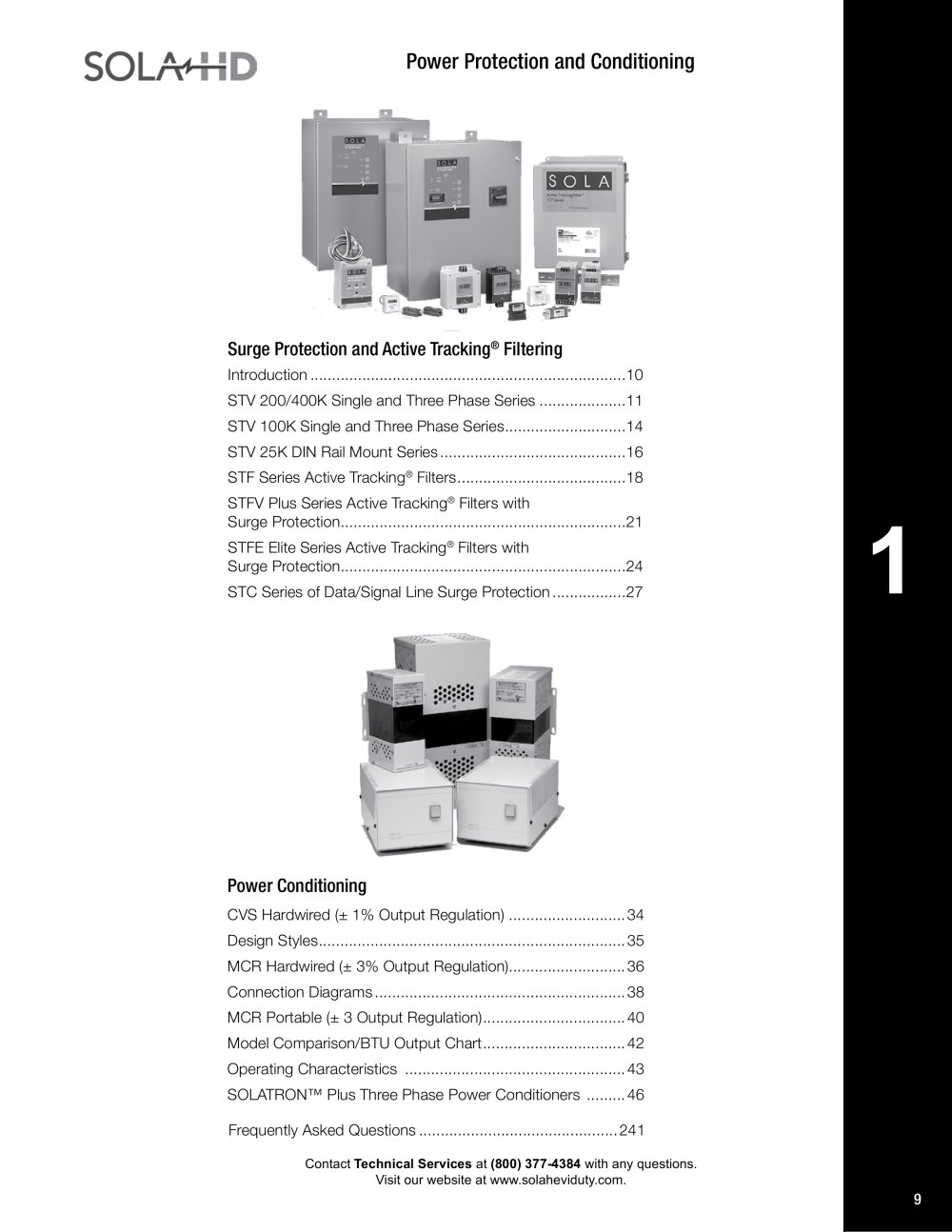

Catalog excerpts
Surge Protective Devices > Today's industries depend on their telecommunication, networking, computing and production equipment for optimized manufacturing performance. SolaHD's proven surge protection and filtering devices protect these critical operations across facilities from the continuous threat of transient spikes, noise and harmonic distortion. Employing an entire facility protection strategy will safeguard the electrical system against most transients. Multi-stage protection involves clamping the initial high energy surge, filtering any remaining noise or transients to the protected...
Open the catalog to page 2
Catalog NumberInput VoltageSTV 400K-10Y 120/208 VThree Phase Wye 4 wire + Ground STV 200K-10Y 120/208VThree Phase Wye 4 wire + Ground STV 400K-27Y 277/480 VThree Phase Wye 4 wire + Ground STV 200K-27Y 277/480 VThree Phase Wye 4 wire + Ground STV 400K-48D 480 VThree Phase $ 3 wire + Ground STV 200K-48D 480 VThree Phase $ 3wire + Ground >
Open the catalog to page 3
DescriptionCatalog NumberSTV 200K-10YSTV 200K-27YSTV 200K-48DSTV 400K-10YSTV 400K-27YSTV 400K-48DInput Vac 120Y/208 V277Y/480 V480 V120Y/208 V277Y/480 V480 VThree Phase Wye, 4 W + GThree Phase Wye, 4 W + GThree Phase Delta, 3 W + GThree Phase Wye, 4 W + GThree Phase Wye, 4 W + GThree Phase Delta, 3 W + G Maximum Continous Operating Voltage (MCOV) 120 V = 125%, All others voltages 115% Line Frequency 4763 Hz Connection/ Mounting Type Internally connected/Wall Mounted (Mounting hardware 1/4 in.) Enclosure NEMA 12 (NEMA 3R, 4, 4x optional) Modes of Protection All Modes: L-N, L-L, L-G, N-G Saftey...
Open the catalog to page 4
STV 200/400K SeriesCatalog NumberDimensions (in/mm)Weight lbs (kg)Suggested Breaker SizeSuggested Wire Size (AWG)Allowable Breaker RangeAllowable Wire RangeABCDEFSTV 200K 1614816.7512.3141 (18.60)40 A#815 A100 A#14֖#2 STV 400K 2016921.2510.4456 (25.40)100 A#215 A100 A#14֖#2 STV 200/400K Series with Rotary DisconnectCatalog NumberDimensions (inches)Weight lbs (kg)Suggested Breaker SizeSuggested Wire Size (AWG)Allowable Breaker RangeAllowable Wire RangeABCDEFSTV 200K 1614816.7512.3141 (18.60)40 A#815 A175 A#14֖2/0 STV 400K 2016921.2510.4456 (25.40)100 A#215 A175 A#14֖2/0 >
Open the catalog to page 5
Catalog NumberInput VoltageSTV 100K-10S 120/240 VSingle Phase 3 wire + Ground STV 100K-10Y 208Y/120 VThree Phase Wye 4 wire + Ground STV 100K-10N 120 VSingle Phase 2 wire + Ground STV 100K-24L 240 VSingle Phase 2 wire + Ground STV 100K-23Y 380Y/220 VThree Phase Wye 4 wire + Ground STV 100K-27Y 480Y/277 VThree Phase Wye 4 wire + Ground STV 100K-24D 240 VThree Phase $ 3 wire + Ground STV 100K-48D 480 VThree Phase $ 3 wire + Ground STV 100K-10D4 240/120 CTThree Phase $ 4 wire + Ground STV 100K-24D4 480/240 CTThree Phase $ 4 wire + Ground >
Open the catalog to page 6
Warranty 10 years DescriptionCatalog NumberSTV 100K-10SSTV 100K-10NSTV 100K-24LSTV 100K-10YSTV 100K-23YSTV 100K-27YSTV 100K-24DSTV 100K-48DSTV 100K-10D4STV 100K-24D4Input Vac 120/240 V120 V240 V208Y/120 V380Y/220 V480Y/277 V240 V480 V120/240 CT240/480 CTSingle Phase 3 wire + GroundSingle Phase 2 wire + GroundThree Phase Wye 4 wire + GroundThree Phase 125% of the nominal level for 120 V; 115% for all other input voltages $ 3 wire + GroundThree Phase $ 4 wire + Ground Maximum Continuous Operating Voltage (MCOV) Line Frequency 47-63 Hz Connection/Mounting Type Parallel/Flange Enclosure Metal, NEMA...
Open the catalog to page 7
This series provides point-of-use protection, at the dedi- cated equipment level, against damaging transients. Ideal for installation in electronic control cabinets found in harsh in- dustrial environments such as the factory floor or at remote locations. These devices provide 50,000 amps of surge protection, sinewave tracking, LED status indication and form CӔ dry contacts. This DIN Rail series also provides protection on all electrical paths and comes with a standard ten year product warranty. The STV 25K DIN Rail series surge protective devices are UL recognized to Standard 1449, 2 Selection...
Open the catalog to page 8
DescriptionCatalog NumberSTV 25K-10SSTV 25K-24SInput Voltage 120 Vac, Single Phase 0-135 VRMS240 Vac, Single Phase 0-260 VRMS Maximum Continuous Operating Voltage (MCOV) 120 Vac - 150 VRMS240 Vac - 275 VRMS Line Frequency 47-63 Hz Connection/Mounting Type DIN Rail Mount (Chassis Mount Bracket Optional order SDN-PMBRK2) with screw terminals for #12 AWG. Input Current Rating 20 Amps Phase Configuration 2 wire + GND Weight - lbs (kg) 3 lbs/1.36 kg Dimensions (H x W x D) 4.87 x 2.5 x 4.375 (12.37 x 6.35 x 11.11) includes mounting bracket Modes of Protection All Mode: L - N, L - L, L - G, N-G Safety...
Open the catalog to page 9
Low voltage/high frequency noise is caused by everyday events such as turning on machinery, motors, or equipment. Although noise is less dramatic than high voltage transients, the long term effects of these frequent disturbances can be as damaging. Filtering systems such as SolaHD Active Tracking > Filters provide clean AC power by eliminating lower voltage noise.The SolaHD STF Series offers the original active tracking technology to guard against commonly occurring but very damaging, lower energy transients. Offering excellent noise reduction, the filter continuously tracks the input AC power...
Open the catalog to page 10
Description120 Vac Models240 Vac Models480 Vac ModelsInput Voltage 0-150 VRMS0-275 VRMS0-520 VRMS Line Frequency 50/60 Hz Transient Attenuation Response Time Instantaneous Mean Time Between Failure (MTBF) > 100,000 Hours (Mil Std. 217F) Single phase units through 30 Amps housed in black, high impact plastic case, Vacuum impregnated magnetics, epoxy encapsulated; single phase greater than 30 Amps, 480 Vac, and three phase units housed in NEMA 12 enclosures Packaging Operating Temperature -40C to +45аC Derate Linearly to 60% at +70C 10m sec: 5 x Nominal1 sec : 3 x Nominal5 sec: 2 x Nominal Load...
Open the catalog to page 12
Related Products Applications Power ConditionersՕ Uninterruptible Power System Power Supplies Օ Branch and Control Panels Factory Automation Installations Օ Point of Use Industrial Service Equipment Programmable Logic Controllers Օ Dedicated Industrial and Machine tools Telecommunications and IT equipment > The SolaHD STFV Plus Series combines Active Tracking > ή filtration for low energy noise and surge protection for high energy transients. It continuously tracks the input AC power line responding instantly into action upon detecting extrane- ous high frequency noise and high voltage transients...
