Specifications/ Low Voltage Electrical Connections

Product catalog summary

Overview: This document provides technical specifications for Buck–Boost Transformers, detailing various models with different primary and secondary voltage configurations. It includes specification tables, design styles, and electrical connection instructions.

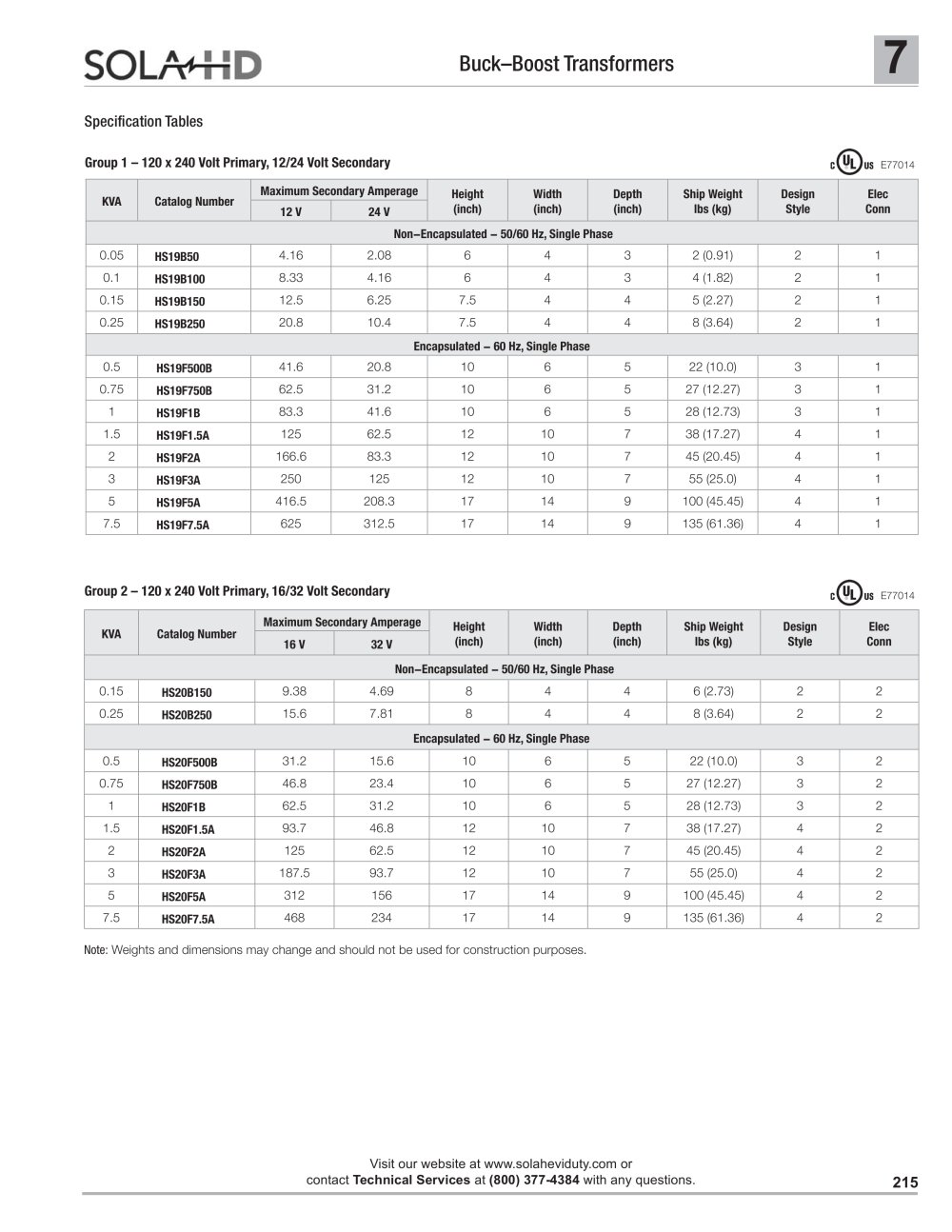

Specification Tables: The document lists transformers categorized by primary and secondary voltages:

Group 1: 120 x 240 Volt Primary, 12/24 Volt Secondary. Models range from 0.05 KVA to 7.5 KVA, with details on maximum secondary amperage, dimensions, weight, design style, and electrical connections.
Group 2: 120 x 240 Volt Primary, 16/32 Volt Secondary. Similar details are provided for models ranging from 0.15 KVA to 7.5 KVA.
Group 3: 240 x 480 Volt Primary, 24/48 Volt Secondary. Specifications are given for models from 0.15 KVA to 7.5 KVA.

Design Styles: Transformers are available in non-encapsulated and encapsulated designs, suitable for 50/60 Hz and 60 Hz single-phase applications, respectively.

Electrical Connections: Instructions for interconnecting primary and secondary voltages are provided for each group, detailing which lines to connect for specific voltage outputs.

Key Considerations: The document notes that weights and dimensions may change and should not be used for construction purposes. No taps are available for the specified voltage configurations.

Catalog excerpts

Specifications/ Low Voltage Electrical Connections-2

= Earth Ground 120 X 240 Volt Primary, 12/24 Volt Secondary Taps: None120 X 240 Volt Primary, 16/32 Volt Secondary Taps: None240 X 480 Volt Primary, 24/48 Volt Secondary Taps: None >

Open the catalog to page 2
