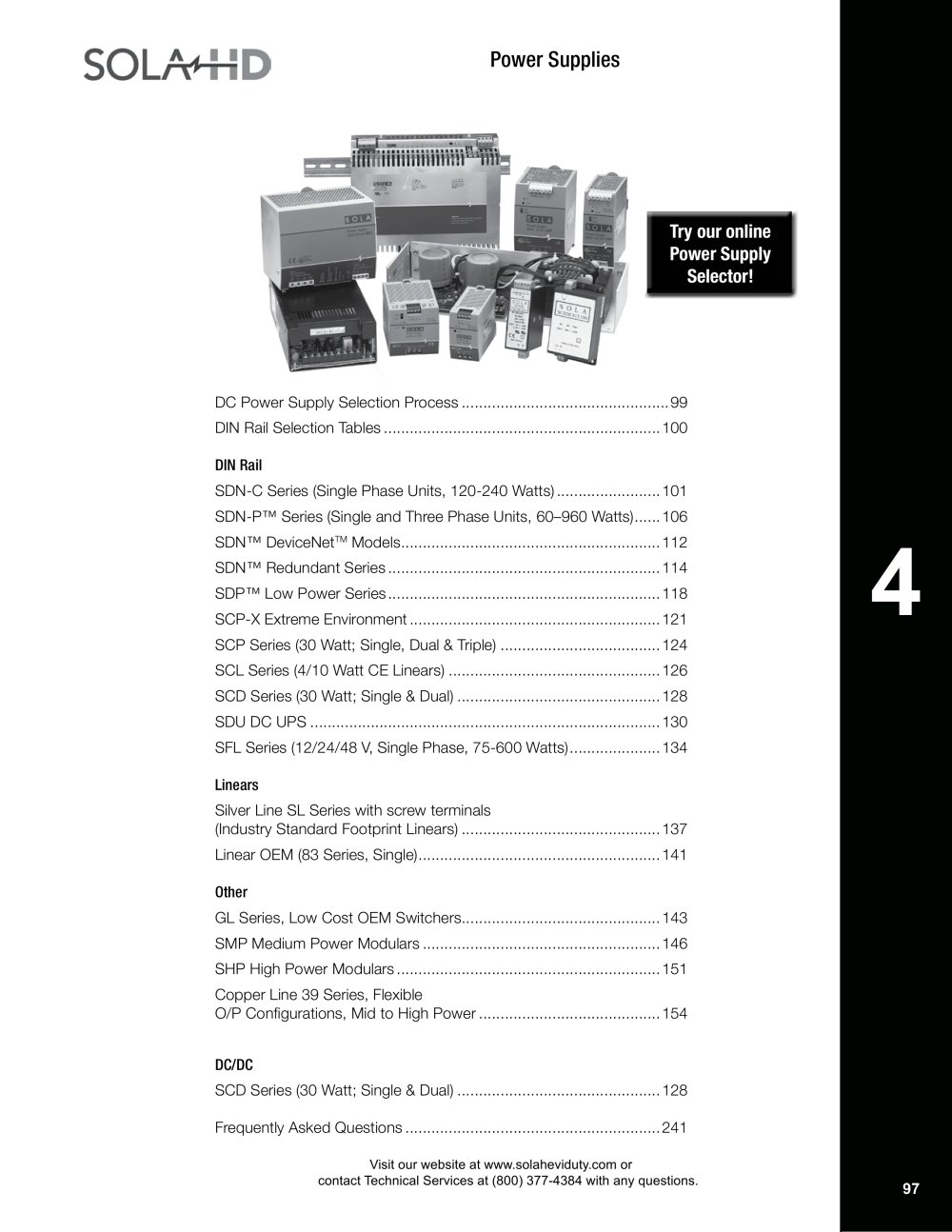

Overview: SolaHD offers a diverse range of power supplies for industrial applications, including DIN Rail and linear-based models with global inputs and three-phase options for efficient AC-DC conversion. They also provide a DC UPS for backup power during outages.

Linear vs. Switching Technology: SolaHD's power supplies include both linear and switching technologies. Switching power supplies are more efficient (over 80%) and compact, ideal for DIN Rail mounting. Linear power supplies, though less efficient (about 50%), provide tight regulation and clean DC output, suitable for specific applications.

DC Power Supply Selection Process: Selecting a power supply involves determining input voltage, wattage, number of outputs, and amperage. Users can calculate the required wattage and choose models from the Power Supply Selection Chart, ensuring compatibility with specifications and safety approvals.

SDN-C Series Features: The SDN-C DIN Rail power supplies are efficient, compact, and feature diagnostic LEDs, Sag Immunity, Power Factor Correction, and universal voltage input. They are rugged and user-friendly, suitable for various industrial applications.

Technical Specifications: The SDN-C series supports a wide input voltage range (85-264 Vac), high efficiency (>90%), and features PowerBoost™ overload capability. It is designed for easy installation with a patented DIN rail mounting clip and complies with EMC and safety standards.

Specifications: Detailed specifications for the SDN series include dimensions, weight, input/output characteristics, and efficiency. The power supplies are not UL listed for DC input, and input current ratings are conservatively specified. They have a high MTBF and are designed for industrial applications.

Procedures: Mounting procedures for the SDN series include DIN rail and alternative panel mounting options, with step-by-step instructions for secure installation and detachment.

Standards and Approvals: The SDN series complies with standards like UL508, EN60950, and ATEX for hazardous locations, meeting EMC and low voltage directives.

Features and Recommendations: The SDN series includes power factor correction, auto-select input voltage, and high efficiency. Recommendations include using the SDN-PMBRK2 accessory for panel mounting and ensuring adequate ventilation.

Applications: Suitable for industrial/machine control, process control, and conveying equipment, designed to handle high inrush loads.

Accessories: Related products and accessories include the chassis mount bracket (SDN-PMBRK2) for alternative mounting options.

Specifications and Standards: Compliance with standards like UL60950, cRUus, CE, EN61000-3-2, and UL60079-15, suitable for Class 1, Zone 2 Hazardous Locations.

Temperature and Environmental Conditions: Storage temperature ranges from -25°C to +85°C, operational temperature from -10°C to 60°C at full power, with operation up to 70°C possible with derating.

MTBF and Warranty: MTBF specified under various conditions, with a standard MIL STD 217F @ 30°C. Warranty period is 5 years.

Protection and Safety: Protected against continuous short-circuit, overload, and open-circuit, with Protection Class 1 and IP20 rating.

Installation and Mounting: Features a snap-on system for DIN Rail or chassis mounting, with IP20-rated screw terminals.

Dimensions and Weight: Various models have different dimensions and weights, with detailed specifications provided.

Power Supply Features: Includes power factor correction, SEMI F47 Sag Immunity Standard, and suitability for Class 1, Div. 2 Hazardous Locations.

DeviceNet Series: Designed for DeviceNet applications, meeting ODVA specifications and NEC Class 2 and UL 1310 requirements.

Redundant Options: Supports redundant operation with external modules for increased reliability.

Applications: Suitable for industrial control, process control, building automation, and DeviceNet applications.

Contact Information: For further inquiries, visit the website or contact Technical Services.

Overview: Detailed specifications and features of various power supply models, including the SDP™ Low Power DIN Rail Series and the SCP-X Extreme Environment Series.

SDP™ Low Power DIN Rail Series: Compact, lightweight power supplies with output voltages from 5 to 48 Vdc and power ratings up to 100 Watts, designed for industrial environments.

SCP-X Extreme Environment Series: Rugged power supply for extreme environments, with IP66/67 and NEMA 4X ratings, providing 24 Vdc output.

General Specifications: Input voltage ranges from 100 to 240 Vac and 100-353 Vdc, with power factor correction of 0.95.

Installation and Connections: Units are chassis mounted with built-in mounting tabs, allowing for removal and replacement from the front of the panel.

Overview: Detailed specifications and features of various power supply series including SCP, SCL, SCD, and SDU Series.

SCP Series: Includes 30 Watt power supplies available in single, dual, and triple outputs, designed for industrial control and instrumentation devices.

SCL Series: Offers 4 and 10 Watt encapsulated linear power supplies with dual and triple outputs, suitable for sensitive electronics.

SCD Series: Consists of encapsulated DC to DC converters with a wide input range, suitable for environments without AC power.

SDU Series: A 24 Vdc uninterruptible power supply system designed for critical industrial applications.

Standards and Compliance: All series comply with international standards such as UL60950, EN60950, and CE.

Applications: Suitable for a wide range of industrial applications including machine control, automation, telecommunications, and remote site operations.

Overview: Detailed specifications and options for the SDU DC UPS power modules and battery modules, as well as the SFL series of DIN Rail switching power supplies.

SDU DC UPS Power Modules: Models include SDU 10-24 and SDU 20-24, requiring battery modules, with input voltage of 24 Vdc.

SFL Series Power Supplies: Available in 12, 24, and 48 Vdc outputs with selectable input voltages of 115/230 Vac.

Installation and Mounting: SDU Modules feature a snap-on system for DIN Rail or chassis mounting.

Additional Information: Includes selection tables for various models, detailing specifications, dimensions, and mounting options.

Overview: Detailed specifications and features of various power supply models, including linear OEM single output, GL series switchers, and SMP series modular power supplies.

Specifications: Volt models are factory set for 12 Volt operation, with 15 Volt operation being field adjustable.

Features: Low noise output, remote sensing, and short circuit protection are common features across models.

Applications: Suitable for microprocessor circuits, instrumentation, process controls, CNC machinery, and noise-sensitive circuits.

Selection Tables: Catalog numbers and output specifications are listed for different models.

General Parameters: Input voltage ranges, frequency, and protection features are detailed.

Notes: All dimensions are subject to change and should not be used for construction purposes.

Specifications: All AC input units maintain regulation within specifications for at least 16 msec at 60 Hz and 20 msec at 50 Hz from nominal 230 line voltage.

Mechanical Dimensions: Various models have different dimensions and weights, with mounting options via threaded M4 holes.

Power Supplies Selection Tables: Power supplies are categorized by series with varying outputs and maximum power ratings.

SHP Series Features: Offers modular power supplies from 1500 to 2000 watts, capable of up to 12 outputs.

General Specifications: Input voltage ranges from 86 to 264 Vac for single-phase and 180 to 264 Vac for three-phase.

39 Series Copper Line: Offers adjustable output voltage and current, with universal input and parallel operation capabilities.
