Low Temperature Rise Transformers

Product catalog summary

Overview: The document provides detailed specifications and options for SolaHD low temperature rise transformers, which feature a 220°C insulation system and offer temperature rises of 80°C or 115°C under full load. These transformers are designed for critical applications requiring extra overload capacity, reduced losses, and cooler operation.

Specifications: The transformers have a 35°C thermal reserve on 115°C rise units and a 70°C reserve on 80°C rise units, allowing them to operate as 150°C rise units with a short-term overload capacity of 15-30% without affecting life expectancy.

Design Options: Available accessories and design styles include wall mounting brackets, weather shields, stainless steel enclosures, totally enclosed non-ventilated designs, open core and coil designs, and copper wound designs. Compliance with NEMA TP-1 standards is noted.

Selection Tables: The document includes detailed selection tables for single-phase and three-phase transformers with both 80°C and 115°C rises. Each table lists the kVA rating, catalog number, dimensions, weight, design style, electrical connections, and primary and secondary amperage for various configurations.

Key Data: The tables provide critical data for selecting the appropriate transformer based on specific requirements, including primary and secondary voltage configurations, physical dimensions, and electrical characteristics.

Notes: Weather shields must be ordered separately, and additional technical notes regarding the capacity of center taps are referenced.

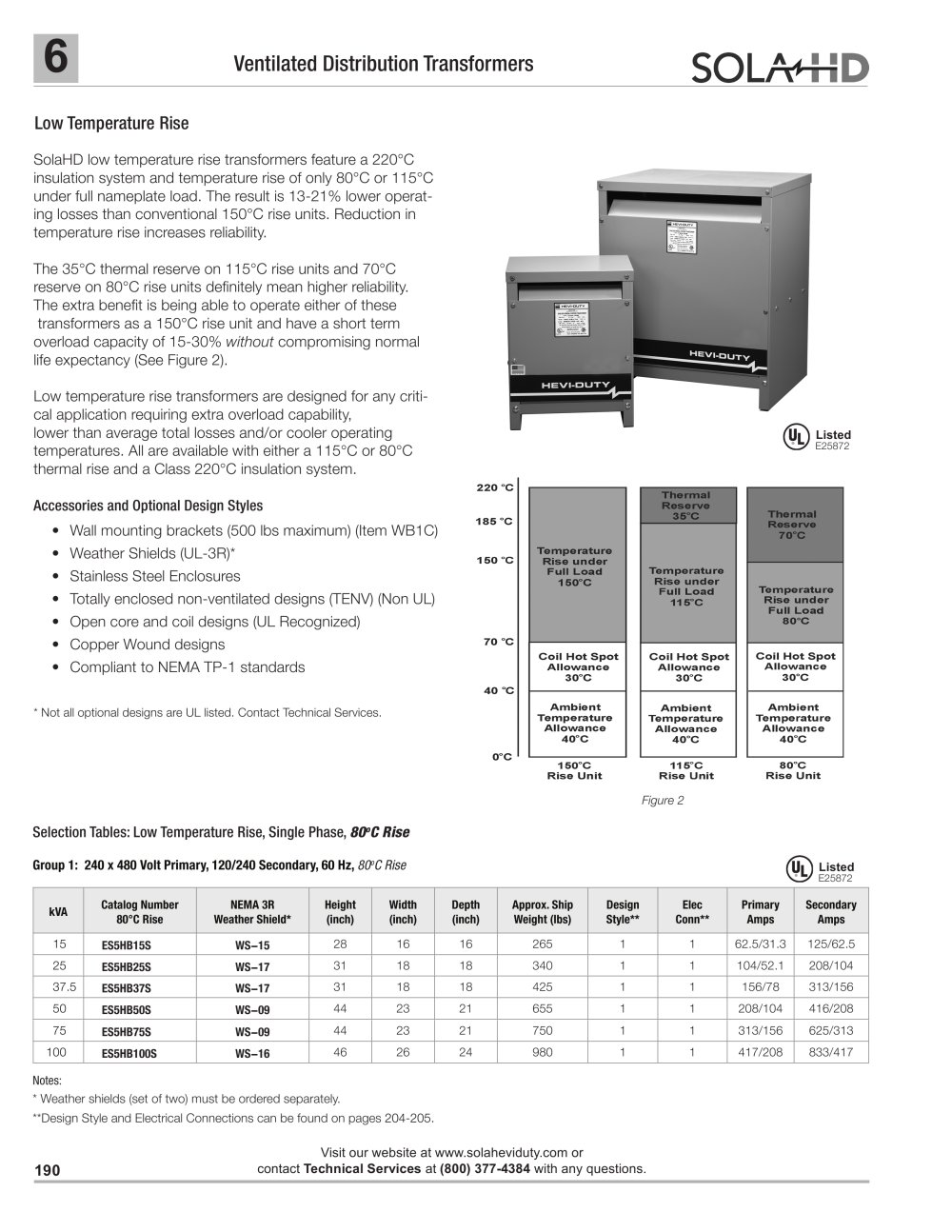

Catalog excerpts

Listed > E25872 kVACatalog Number 80C RiseNEMA 3R Weather Shield*Height (inch)Width (inch)Depth (inch)Approx. Ship Weight (lbs)DesignStyle**Elec Conn**Primary AmpsSecondary Amps > Listed > E25872 kVACatalog Number 80C RiseNEMA 3R Weather Shield*Height (inch)Width (inch)Depth (inch)Approx. Ship Weight (lbs)DesignStyle**Elec Conn**Primary AmpsSecondary Amps >

Open the catalog to page 2

Listed > E25872 kVACatalog Number 115C RiseNEMA 3R Weather Shield*Height (inch)Width (inch)Depth (inch)Approx. Ship Weight (lbs)DesignStyle**Elec Conn**Primary AmpsSecondary Amps 15 ES5HF15SWS-15 2816162101162.5/31.3125/62.525 ES5HF25SWS-15 28161624511104/52.1208/104 37.5 ES5HF37SWS-17 31181834011156/78313/15650 ES5HF50SWS-17 31181842511208/104416/20875 ES5HF75SWS-09 44232161011313/156625/313100 ES5HF100SWS-09 44232175011417/208833/417 > Listed > E25872 kVACatalog Number 115аC RiseNEMA 3R Weather Shield*Height (inch)Width (inch)Depth (inch)Approx. Ship Weight (lbs)DesignStyle**Elec Conn**Primary...

Open the catalog to page 3
