NET05X

Product catalog summary

Overview: The NET05X 3D Station is a high-precision instrument designed for engineering, construction, industrial measurement, and surveying applications. It features 0.5” angle accuracy and sub-millimeter EDM, making it the most precise in its class.

Applications:

Engineering and Construction: Used for precise setting out, on-site positioning of framework members, and periodic tunnel convergence measurements.
Industrial Measurement: Offers sub-millimeter accuracy for measuring dimensions and geometry, with a mobile system for large object measurement.
Surveying: Provides high precision for control point surveys and long baseline measurements.

Specifications:

Telescope: Magnification of 30x, resolving power of 2.5”, and minimum focus of 1.3m.
Angle Measurement: Utilizes absolute rotary encoder scanning with a display resolution of 0.1” / 0.5”.
Distance Measurement: Features a modulated laser with a measuring range up to 3,500m with a prism and 100m without a reflector.
Interface and Data Management: Operates on Windows CE with a touch screen display, supports various data storage options, and includes Bluetooth communication.
Environmental Protection: IP65 rated for dust and water resistance, suitable for harsh environments.

Key Features:

0.5” Angle Accuracy: Achieved through advanced rotary encoders and the Independent Angle Calibration System (IACS).
Sub-millimeter EDM: Offers high precision with reflective sheet targets and prisms.
Superior Telescope: Provides high resolving power and brightness.
Advanced User Interface: Features a visible touch screen and illuminated keyboard for ease of use in low-light conditions.
Bluetooth Communication: Allows wireless data transfer up to 200m.

Conclusion: The NET05X 3D Station is equipped with innovative features that make it ideal for demanding surveying and measurement tasks requiring high precision.

Catalog excerpts

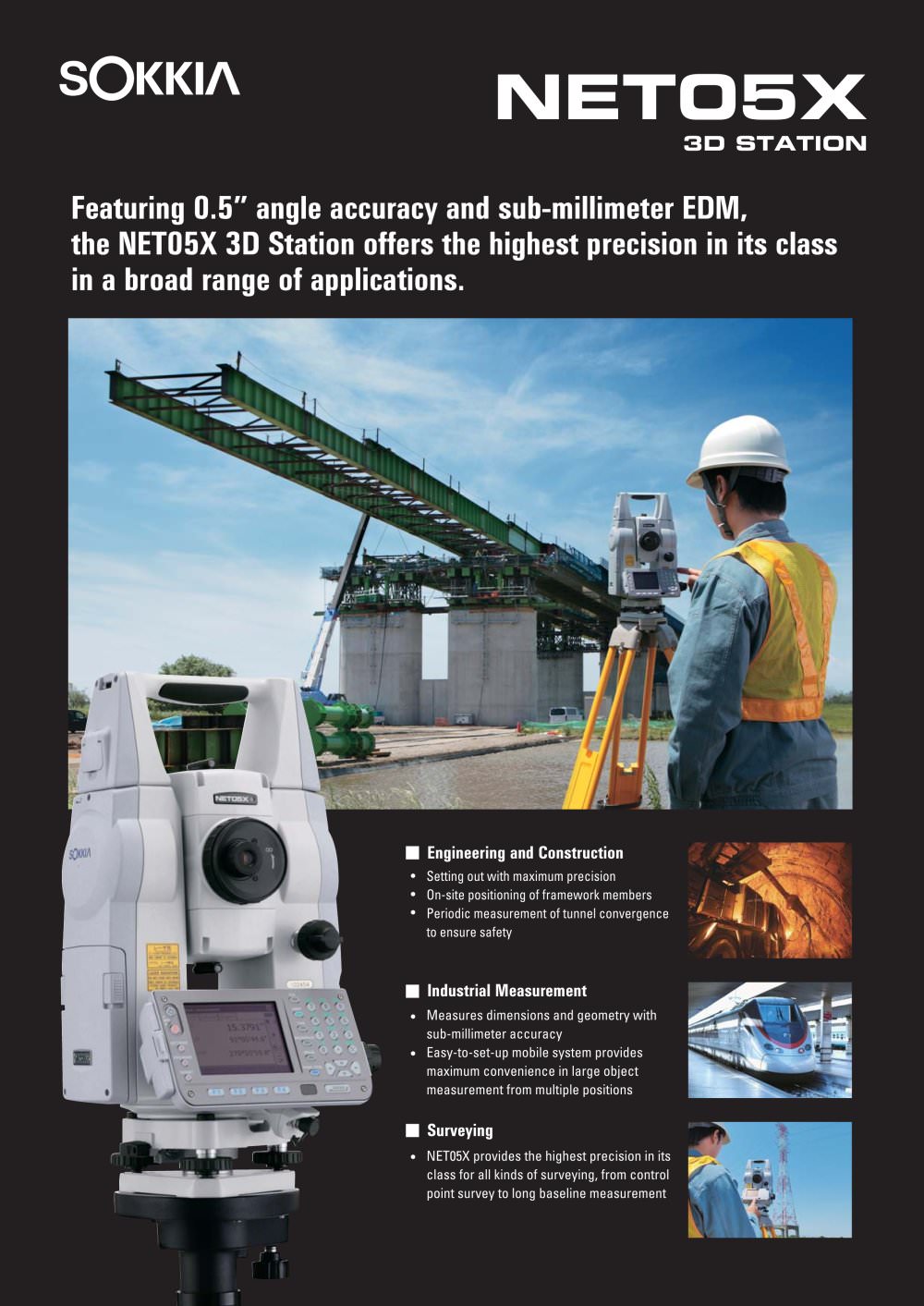

SOkkia NET05X 3D STATION Featuring 0.5" angle accuracy and sub-millimeter EDM, the NET05X 3D Station offers the highest precision in its class in a broad range of applications.

Open the catalog to page 1

Equipped with a variety of innovative features, the NET05X provides ideal solutions for the most demanding surveying and measurement tasks that require the highest in precision. 0.5" Angle Accuracy The combination of market-proven absolute rotary encoders and advanced Independent Angle Calibration System (IACS) provides the industry's highest angle accuracy. Sub-millimeter EDM SOKKIA's cutting-edge distance measurement technology ensures unmatched comprehensive performance. "0.5mm+1ppm" accuracy with reflective sheet targets in the range of 200m (650ft.). "0.8mm+1ppm" with a standard prism up...

Open the catalog to page 2
