SOKKIA
LP415_Brochure

LP415_Brochure

Product catalog summary

Overview: The LP415 is a compact and rugged self-leveling laser designed for construction applications, offering superior reliability at an affordable cost. It features a 300-meter working range, high-speed self-leveling, and a visible red laser for easy detection.

Specifications:

Horizontal Accuracy: 15 arc seconds (2.2mm/30m, 7.3mm/100m).
Self-leveling Range: ±3°.
Typical Measuring Range: Diameter of 300m (1,000 ft.), Radius of 150m (500 ft.).
Beam Diameter: 7mm at projection point.
Rotation Speed: 600 rpm.
Light Source: Laser diode, 650nm wavelength.
Beam Output: 0.8mW or less, Class 2 laser.
Dust and Water Protection: IP56.
Operating Temperature: -20 to +50°C (-4 to +122°F).
Size and Weight: 192.5 x 167 x 189 mm, approx. 2kg.
Power Supply: 4 x R14 (C) batteries, approx. 60 hours of continuous use.

Features:

H.I. Alert: Shuts off the laser beam if the instrument is tilted or jarred to prevent false readings.
Compact and Lightweight: Weighs 2 kg and conforms to IP56 for dust and water resistance.

LR200 Advanced Detector: The LR200 detector is designed for versatility and functionality in various construction applications. It features high accuracy detection sensitivity, triple guides (LCD, LED, and buzzer), and a rugged, compact body.

LR200 Specifications:

Detection Sensitivity: ±0.5mm or ±2mm.
Detection Range: 50mm.
LCD Display: 9 channels on both sides.
LED Colors: Orange, Green (center), Red.
Dust and Water Protection: IP66.
Operating Temperature: -20 to +50°C (-4 to +122°F).
Size and Weight: 76 x 26 x 146 mm, 190g.
Power Supply: 2 x R6 (AA) batteries, approx. 100 hours of continuous use.

Catalog excerpts

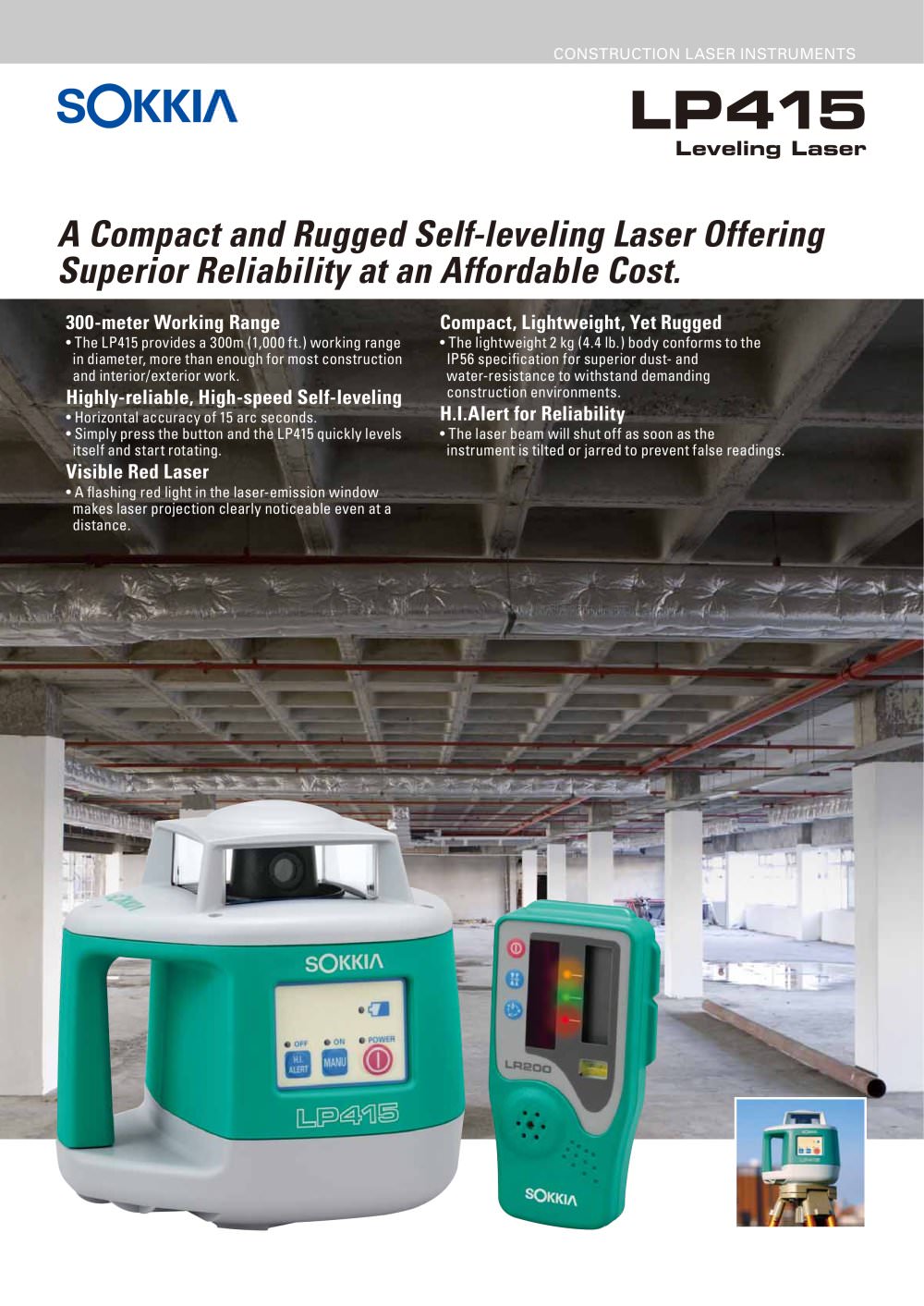

CONSTRUCTION LASER INSTRUMENTS 300-meter Working Range Compact, Lightweight, Yet Rugged > The LP415 provides a 300m (1,000 ft.) working range in diameter, more than enough for most construction and interior/exterior work. Օ The lightweight 2 kg (4.4 lb.) body conforms to the IP56 specifi cation for superior dust- and water-resistance to withstand demanding construction environments. Highly-reliable, High-speed Self-leveling > Horizontal accuracy of 15 arc seconds. Օ Simply press the button and the LP415 quickly levels itself and start rotating. H.I.Alert for Reliability > The laser beam will shut off as soon as the instrument is tilted or jarred to prevent false readings. Visible Red Laser > Օ A fl ashing red light in the laser-emission window makes laser projection clearly noticeable even at a distance. size="-2">

Open the catalog to page 1
