GYROX

Product catalog summary

Overview: The document introduces Sokkia's Automated Gyro Stations (GYRO1X, GYRO2X, GYRO3X) designed to determine true north with high precision and efficiency. These stations eliminate the need for traditional methods like backsight, traverse, and solar observation, making them suitable for various environments and applications.

Key Features:

Precision and Speed: The Gyro X can determine true north in 19 minutes with an azimuth accuracy of 15” (5mgon/0.074 mil), significantly faster and more precise than conventional methods.
Ease of Use: Designed for unskilled operators, the Gyro X requires only three simple steps for operation, reducing stress and fatigue.
Applications: Suitable for directional controls in tunnel construction, internal baseline setups in enclosed spaces, and directional controls for parabola antennas.
Auto-Pointing Capability: Incorporates a gyroscope unit on auto-pointing total stations, enhancing efficiency and productivity in survey projects.

Technical Specifications:

Gyroscope: Operates at temperatures from -20 to +50°C and up to latitude 75°, with a half period of approximately 60 seconds.
Power Supply: Utilizes a BDC7A Battery with a 5-hour operating time at 20°C.
SRX Total Station: Features include a 30x magnification telescope, dual-axis compensator, and a range of distance measurement capabilities with various accuracy levels.

Comparison with Other Solutions: The Gyro X offers advantages over other technologies like RTK-GPS/GNSS, magnetic compasses, and astronomical methods, with no restrictions by location or weather and high accuracy and speed.

Standard Equipment and Accessories: Includes the SRX main unit, gyroscope unit, battery, charger, cables, and other tools. An optional Y Cable (EDC140) is available.

Catalog excerpts

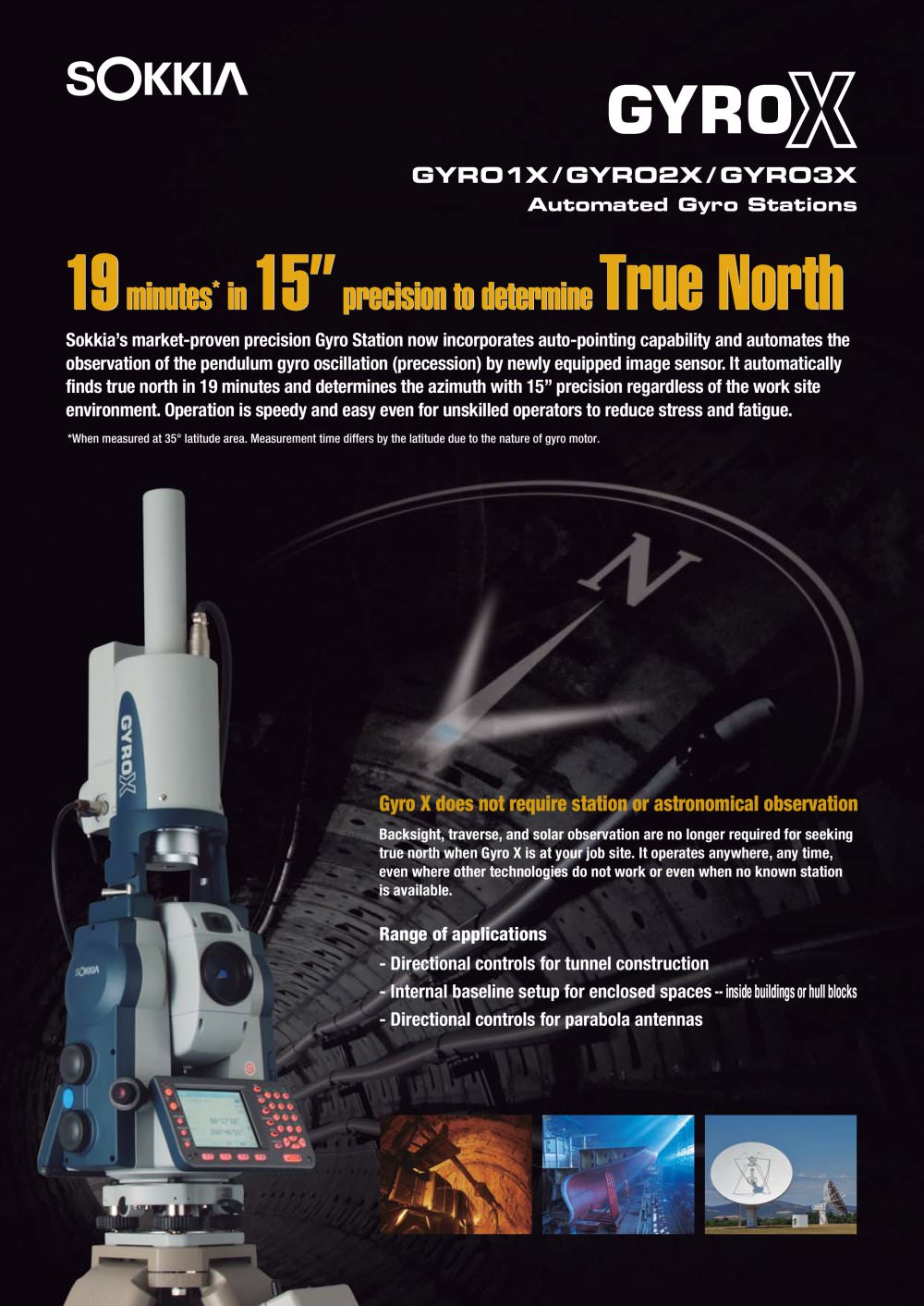

SOKKIA GYRO^ Automated Gyro Stations minutes'il15" prcision to detenrinePIIB NOPfll Sokkiasmarket-proven pr鎩cision Gyro Station now incorportes auto-pointing capability and automates the observation of the pendulum gyro oscillation (procession) by newly equipped image sensor 11 automatically finds true north in 19 minutes and dtermines the azimuth with 15" pr⩩cision regardless of the work site environment Opration is speedy and easy even for unskilled operators to reduce stress and fatigue. ■Wien measuredat 351 latitude area. Measurement time differsby the latttude due to the nature of gyro motor.

Open the catalog to page 1

AUTOMATED GYRO STATIONS Acquiro truc north anytime and anywherc Spcifications GYRO X uses a suspended gyromotor tha oscill鯢tes arounrj the earth merldsan (true north) due to the ptlndple of procession caused by rotation of the earth. This pnnciple reaJIzes taster and more prcise measuromont than other solutions. Comparlson wtth Ottier Solutions Gyroscope Accurjvrv of ajtrr«jt鯯 detemi rtaion" l5"/5mopfV0074mi ( «andvd devtatton ) Rurring-upifrr* Appro- 60 second* HHf ptrtod (■( mlddte latitudes) ApOrox. 3 mmutM Opmdng tompmnjr* -20 to #50'C(-4tO+lWr> Ocmunom U>toHttude75* S*o WH5 * Die61 miomm...

Open the catalog to page 2
