Overview: The document provides detailed specifications and features of the GSR2650 LB GPS surveying instrument by SOKKIA, highlighting its versatility, accuracy, and rugged performance.

Specifications: The GSR2650 LB is a dual-frequency GPS L-Band system capable of GIS and RTK applications. It supports OmniSTAR HP, OmniSTAR VBS, and WAAS corrections, delivering centimeter-level accuracy in RTK mode. The receiver is lightweight (1.1 kg) and designed to withstand harsh environments, with water and dust resistance (IPX4, IPX7) and shock resistance (1.0 m drop).

Performance: The system features a high-performance SK-600 LB antenna with Pinwheel™ Technology for exceptional multipath rejection. It offers a quick time to first fix (50 seconds cold start) and supports a data rate of 20 Hz. The receiver operates in temperatures ranging from -40°C to +75°C.

Power and Connectivity: The GSR2650 LB uses camcorder batteries for 8-12 hours of operation and includes multiple external ports (3 x RS232, 1 x power, 1 x antenna). It supports standard input/output formats like RTCA, RTCM, CMR, and NMEA-0183.

Data Collection Software: The system includes SDR Level 5 and IMap data collection software. SDR Level 5 supports topographic surveying, stakeout, and COGO, while IMap offers comprehensive GIS mapping tools with an intuitive interface.

Conclusion: The GSR2650 LB is a versatile and reliable GPS system suitable for various surveying applications, providing high accuracy and ease of use, supported by SOKKIA's commitment to quality and customer support.

Catalog excerpts

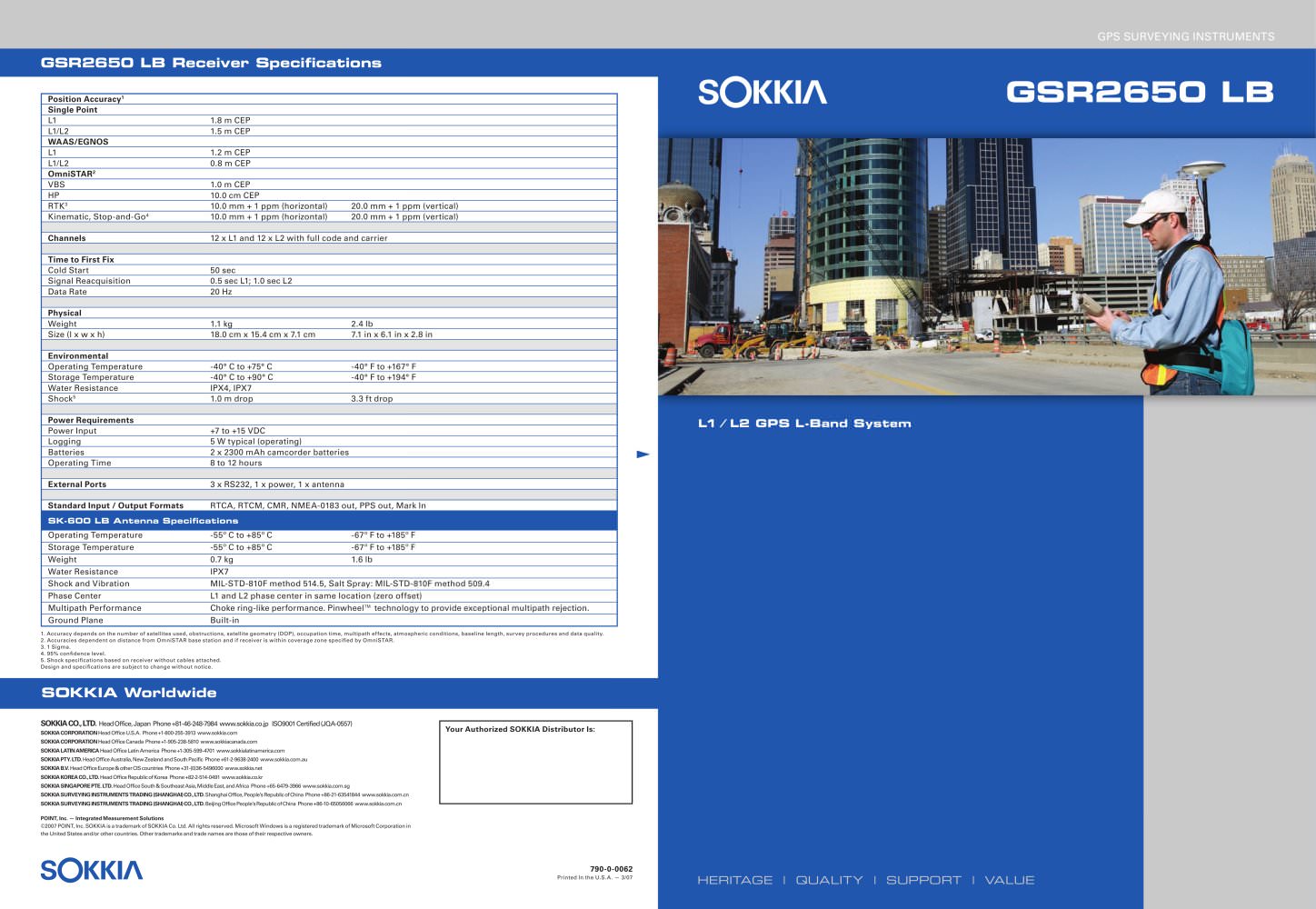

The GSR2650 LB is a unique GPS system that offers the ability to perform GIS and RTK applications within one system. The receiver is capable of utilizing OmniSTAR HP, OmniSTAR VBS and WAAS corrections and can deliver centimeter-level results in RTK mode. The flexibility of the GSR2650 LB allows you to switch from GIS to RTK modes without having to switch equipment. The system, with its modular design, is extremely easy to set up and even easier to use and is durable enough to withstand even the harshest environments. > High-performance, dual-frequency GPS receiverՕSK-600 LB dual-frequency GPS...

Open the catalog to page 2
