GIR1600

Product catalog summary

Overview
The GIR1600 is a compact, sub-meter accuracy Differential GPS (DGPS) receiver designed for versatility and ease of use. It features a lightweight, wearable design with a detachable antenna, making it suitable for various surveying and mapping applications.

Key Features

Wearable Design: The GIR1600 is the industry's smallest and lightest DGPS receiver, featuring a detachable antenna weighing only 100g (3.5oz).
High-Performance GPS: Integrated with real-time corrections using SBAS (WAAS, EGNOS, MSAS) and an optional MF beacon receiver for sub-meter accuracy.
Bluetooth Connectivity: Supports wireless connections with Bluetooth-enabled devices for data transfer.
Multi-Faceted Applications: Suitable for GIS data collection, asset maintenance, mobile mapping, marine and environmental surveys, and agriculture GIS.

Technical Specifications

GPS-SBAS Unit: 12 channels (10 GPS, 2 SBAS), L1 frequency (1575.42MHz), sub-meter position accuracy, update rate options (1Hz, 2Hz, 10Hz, 20Hz).
Beacon Unit: Frequency range 283.5 to 325.0kHz, 2 channels, manual or automatic MSAS/beacon selection.
General: RTCM SC-104 protocol, BDC46B battery with over 6 hours of operation, external power input range +6 to +40V, IP55 environmental protection.

Environmental Conditions

Operating Temperature: -30°C to 70°C (-22°F to 158°F).
Storage Temperature: -40°C to 80°C (-40°F to 176°F).
Humidity: 100% condensing.
Protection: IP57 dust and water protection.

Accessories

Standard: GPS antenna, pole/antenna adapter, interface cable, rechargeable batteries, quick charger, power cable, setup software, and operator's manual.
Optional: Trekking set, car mount magnet, and AC adapter.

Contact Information
SOKKIA provides global support with offices in Japan, USA, Canada, Latin America, Australia, Europe, Korea, Singapore, and China. For more information, visit their respective websites.

Catalog excerpts

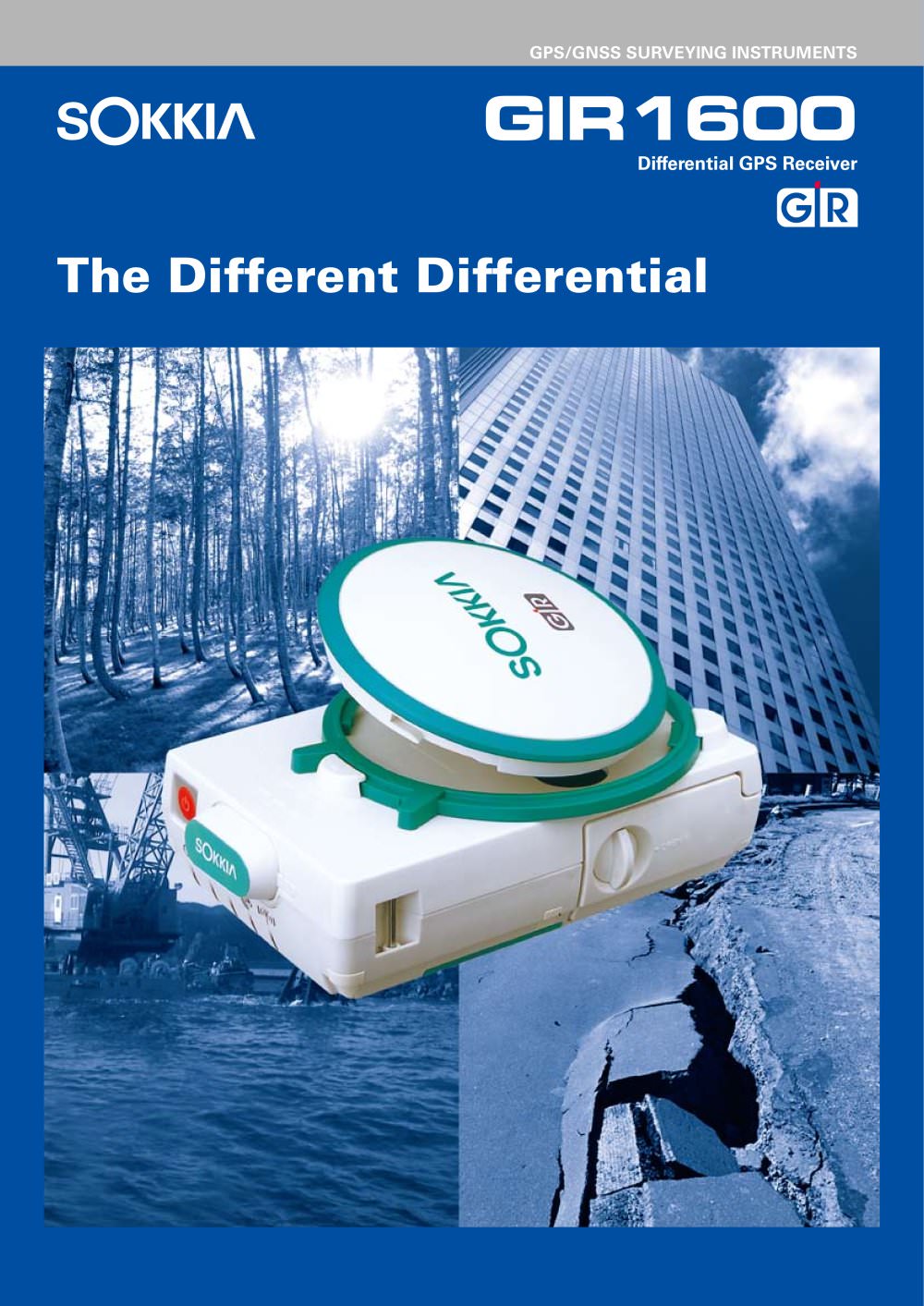

VEYING INSTRUMEN GIR1600 Differential GPS Receiver The Diffrent Differential

Open the catalog to page 1

The Diffrent Differential GIR1600 is a versatile compact sub-meter accuracy DGPS receiver. Its innovative design offers unprecedented usability. Wearable DGPS GIR1600 has the industry's smallest and lightest design*. An innovative design makes GIR1600 a revolutionary "Wearable GPS". *Detachable antenna DGPS receivers as of November 2006 (Source: SOKKIA) Dtachable Antenna The industry's lightest (100g, 3.5oz) and versatile detachable antenna allows you to comfortably take measurements wearing the lightweight trekking set and enjoy the added benefit of unrestricted hand movement. Mobile mapping...

Open the catalog to page 2

AcTual*l7f> Power Button Communication/Power Port Easy opration. One Dush and you are 'eady lo go. Senal data transmission and axternal power connection vai ."il:- ■"■ in single port Battery Status LEDs GIR1600 cornes with two rechargeable Li-ion BDC46B batteries, the same as SOKKIA total stations and otogital levels Threaded P鯴le Mount See GPS and correction signal status at a gbnce. Standard camer a-mou nt 1/4' thrnads Pole/Antenna Adapter Attach either the GIFUGGO or the removable antenna to a surveying range ple.

Open the catalog to page 3
