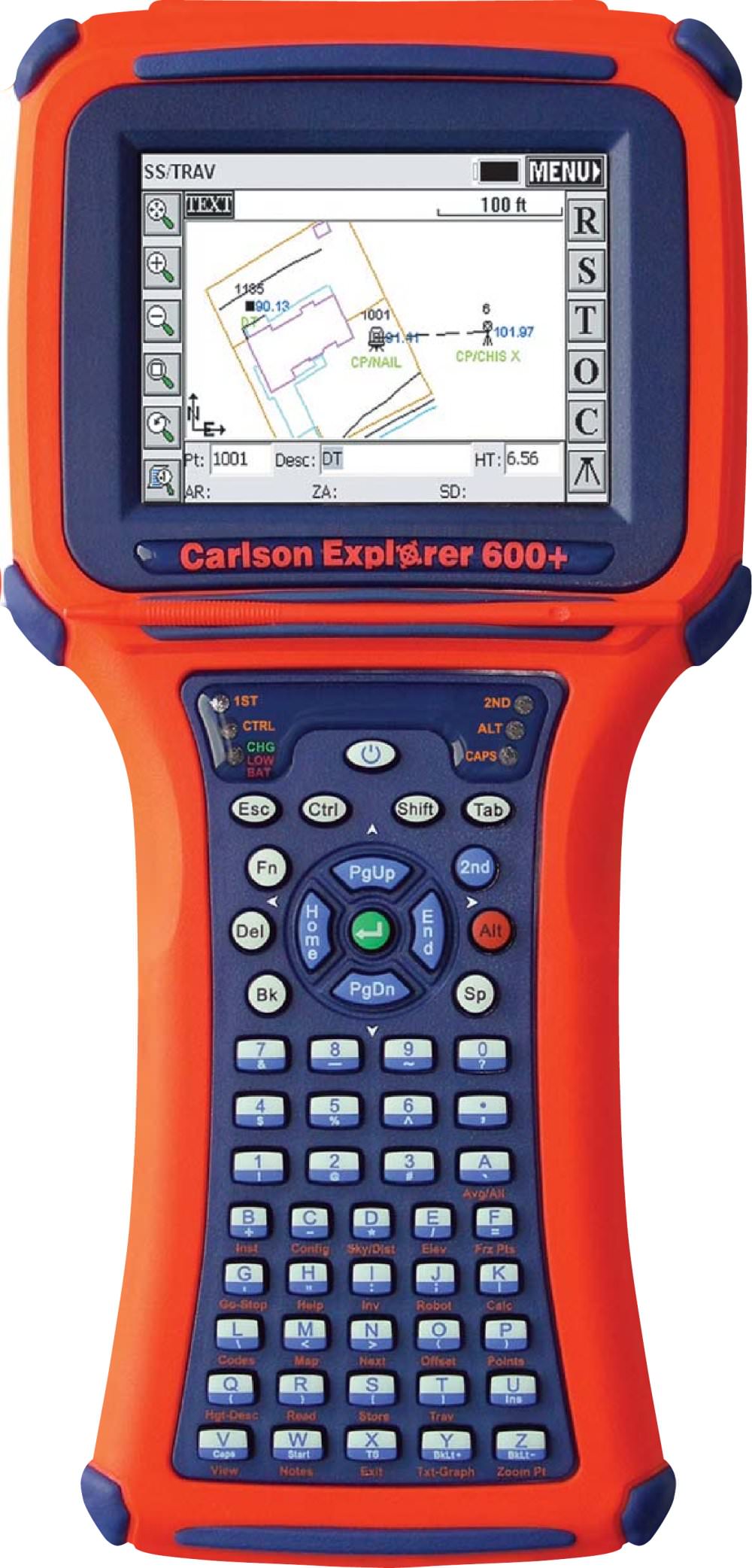

Carlson600+_Product_Brochure
Carlson600+_Product_Brochure
- Processor: Intel PXA270 with Xscale technology, 624 MHz.
- Memory: 128MB SDRAM, 512MB internal compact flash, and a compact flash card slot.
- Display: QVGA-TFT color, sunlight-readable touch screen with a resolution of 320 x 240 pixels.
- Power: Nickel Metal Hydride rechargeable batteries (1500 mAH, 7.2V) and AA Alkaline batteries. Recharge/Line Power: 11 to 18 VDC, 1.5A. Minimum operating time of 8 hours.
- Environmental: Operating temperature from -20°C to +50°C, storage temperature from -20°C to +70°C, charging temperature from -20°C to +40°C, humidity 5 – 95% non-condensing, IP65 ingress protection.
- Connectivity: Internal Wireless LAN 802.11b, Bluetooth, USB port, RS-232 serial port.
- User Input: Touch screen and full-function alphanumeric elastomeric keyboard.
- Indicators: 5 programmable LED indicators including charge/low battery indicator.
- Physical Dimensions: Height: 9.84 inches (250mm), Width: 4.75 inches (120.7mm), Depth: 1.83 inches (46.5mm), Weight with NiMH Batteries: 29 ounces (822 grams).
- Warranty: Two years.
- Weather-resistant shell rated to withstand wind-driven rain.
- New keyboard designed for surveyors, with a convenient handstrap and stylus.
- Comes standard with WiFi and Bluetooth for powerful connectivity.
Catalog excerpts
Power: Memory and Mass Storage: > ■ Nickel Metal Hydride rechargeable batteries (1500 mAH, 7.2V) > ■ SDRAM: 128MB > ■ Internal Compact Flash: 512MB > AA Alkaline batteries (6) Compact flash card slot > ■ Recharge/Line Power: 11 to 18 VDC, 1.5A Interface: > ■ ■ 8 hours minimum operating time > ■ Internal Bluetooth > ֠ ■ QVGA-TFT color sunlight readable display, with white LED Backlight > ■ RS-232 Serial Port User Input: > ■ Resolution: 320 x 240 pixels color Touch screen > ■ Full function alpha numeric elastomeric keyboard > ■ Touch Screen Environmental: > ■ Operating temperature: -20 Indicators:...
