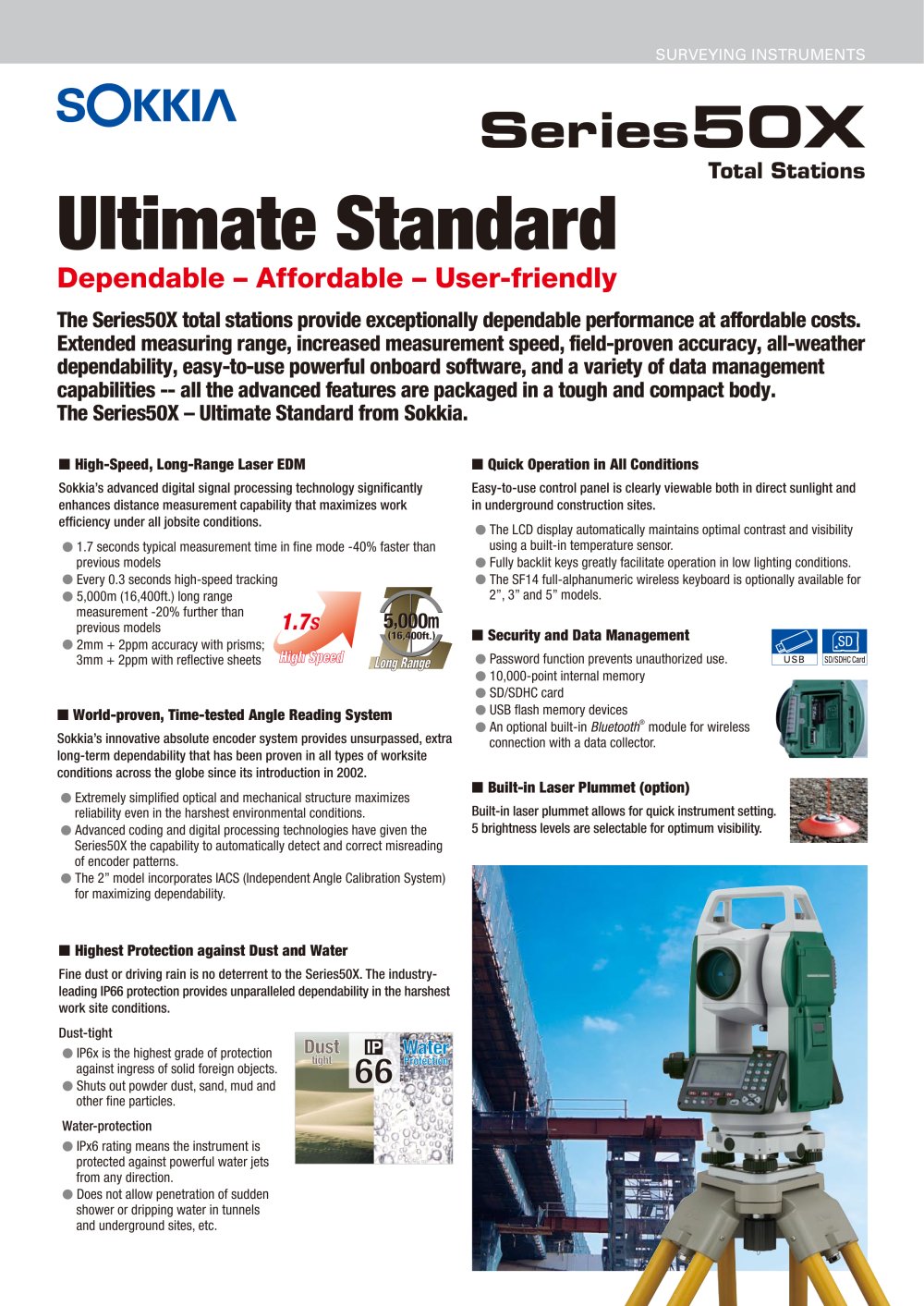

![50X - 1](https://img.directindustry.com/pdf/repository_di/22661/50x-183377_1m.jpg)
SURVEYING INSTRUMENTS sokkia ri Total Stations Ultimate Standard Dependable - Affordable - User-friendly The Series50X total stations provide exceptionally dependable performance at affordable costs. Extended measuring range, increased measurement speed, field-proven accuracy, all-weather dependability, easy-to-use powerful onboard software, and a variety of data management capabilities -- all the advanced features are packaged in a tough and compact body. The Series50X - Ultimate Standard from Sokkia. ■ High-Speed, Long-Range Laser EDM Sokkia's advanced digital signal processing technology significantly enhances distance measurement capability that maximizes work efficiency under all jobsite conditions. 1.7 seconds typical measurement time in fine mode -40% faster than previous models Օ Every 0.3 seconds high-speed tracking 5,000m (16,400ft.) long range measurement -20% further than ^ previous models 1./S 2mm + 2ppm accuracy with prisms; j6 3mm + 2ppm with reflective sheetsHMgՉ^a ■ Quick Operation in All Conditions Easy-to-use control panel is clearly viewable both in direct sunlight and in underground construction sites. ɕ The LCD display automatically maintains optimal contrast and visibility using a built-in temperature sensor. Fully backlit keys greatly facilitate operation in low lighting conditions. Օ The SF14 full-alphanumeric wireless keyboard is optionally available for 2", 3" and 5" models. ■ Security and Data Management Password function prevents unauthorized use. Օ 10,000-point internal memory SD/SDHC card Օ USB flash memory devices An optional built-in Bluetooth® module for wireless connection with a data collector. USB SD/SDHCCard ■ World-proven, Time-tested Angle Reading System Sokkia's innovative absolute encoder system provides unsurpassed, extra long-term dependability that has been proven in all types of worksite conditions across the globe since its introduction in 2002. Օ Extremely simplified optical and mechanical structure maximizes reliability even in the harshest environmental conditions. Advanced coding and digital processing technologies have given the Series50X the capability to automatically detect and correct misreading of encoder patterns. Օ The 2" model incorporates IACS (Independent Angle Calibration System) for maximizing dependability. ■ Built-in Laser Plummet (option) Built-in laser plummet allows for quick instrument setting. 5 brightness levels are selectable for optimum visibility. i ' M ■ Highest Protection against Dust and Water Fine dust or driving rain is no deterrent to the Series50X. The industry-leading IP66 protection provides unparalleled dependability in the harshest work site conditions. Dust-tight IP6x is the highest grade of protection against ingress of solid foreign objects. Օ Shuts out powder dust, sand, mud and other fine particles. Water-protection IPx6 rating means the instrument is protected against powerful water jets from any direction. Օ Does not allow penetration of sudden shower or dripping water in tunnels and underground sites, etc. Dust tight na mm 66 SW «il
Open the catalog to page 1![50X - 2](https://img.directindustry.com/pdf/repository_di/22661/50x-183377_2m.jpg)
Series50X Spcifications Total Stations SET250XSET350XSET550XSET650X Model SET250X | SET350X SET550X SET650X Tlescope Fully transiting, coaxial sighting and distance measuring optics Magnification / Resolving power 30x / 2.5" 26x / 3.5" Others Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels Angle measurement Absolute rotary encoder scanning, both circles adopt diametrical detection Display resolution 1" / 5", 0.0002 / 0.001gon, 0.005 /...
