Pallet Handling Solutions
PalManager GM5 Overview
The PalManager GM5 is designed for stacking and destacking up to 16 pallets, with the capability to handle 1-5 pallets at a time. It operates electrically, eliminating the need for air connections, and features a user-friendly control system to enhance productivity and safety.
Key Features
  • Safe and gentle pallet handling to reduce work-related injuries.
  • Increases productivity by ensuring a pallet is always ready for use.
  • Operates quietly and without dust.
  • Organizes storage and production areas efficiently.
Specifications
  • Pallet size: 1200 x 800 mm
  • Maximum number of pallets: 16
  • Maximum lifting capacity: 600 kg
  • Dimensions: 1400 x 1200 x 2150 mm
  • Power supply: 3 x 400 V, 3 A
  • No air pressure required
  • Surface treatment: Powder coated or electro-galvanised, available in stainless steel
  • Standard colors: Red RAL 2002, black RAL 9005 (other colors available at additional cost)
SOCO SYSTEM Overview
The SOCO SYSTEM offers a comprehensive range of products for handling cartons, plastic crates, trays, and pallets, designed to increase efficiency and reduce physical strain. The system ensures full product compatibility, reducing paperwork and adaptation time, and can be customized to meet future requirements.
Contact Information
For more information, contact SOCO SYSTEM at [email protected] or visit www.socosystem.com.
See more

Catalog excerpts

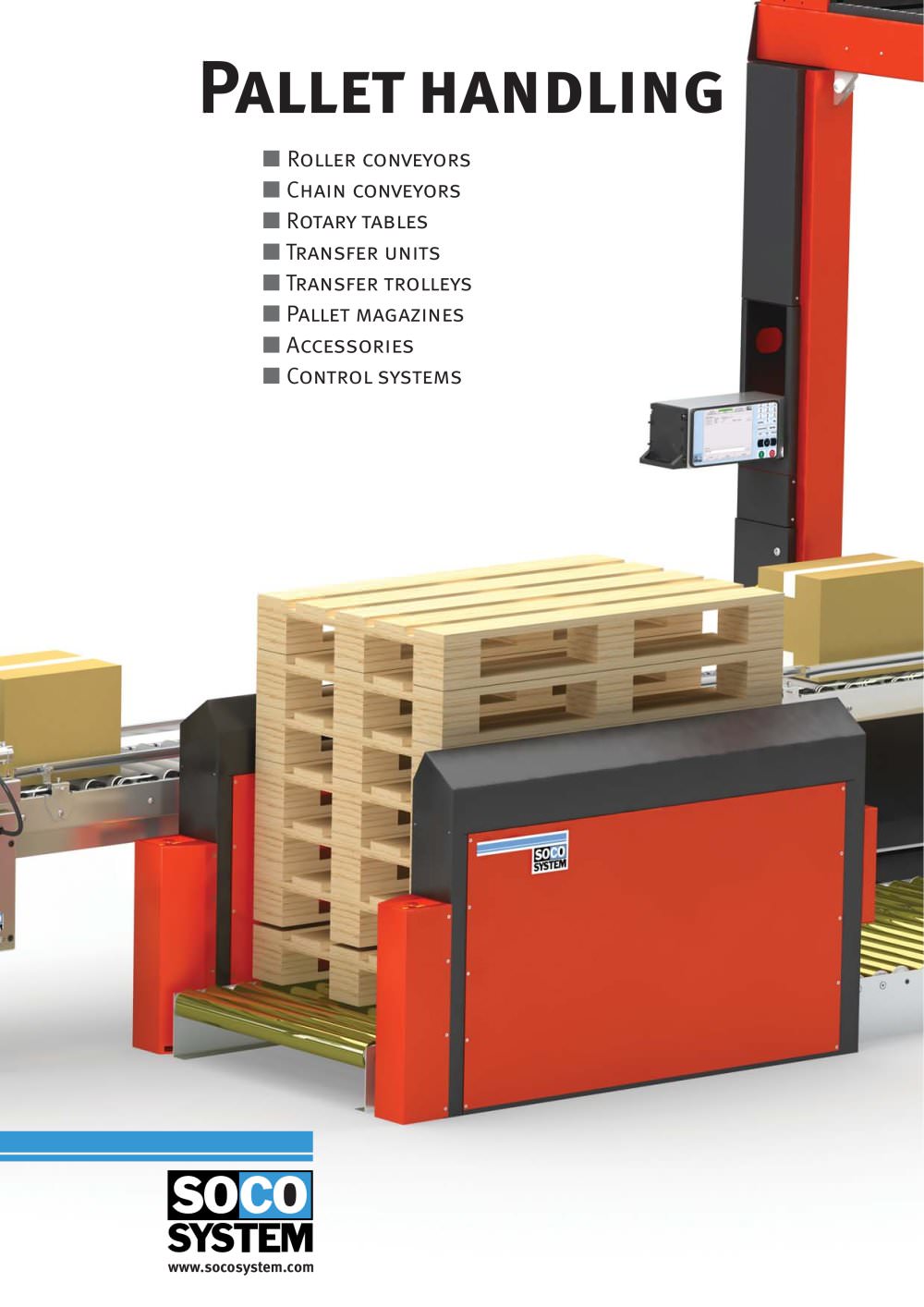

Pallet Handling-1

Roller conveyors ■ Chain conveyors ■ Rotarytables ■ Transfer units ■ Transfer trolleys ■ Palletmagazines ■ Accessories ■ Controlsystems > www.socosystem.com size="-1">

 Open the catalog to page 1
Pallet Handling-2

1-5 pallets at a time.PalManager GM5 is used for stacking of up to 16 pallets or asmagazine from where the operator can collect one pallet at a time.The magazine can be set for automatic stacking or destacking of1-5 pallets at a time.The magazine is electric and does not require connection of air. > The PalManager is equipped with a unique and user-friendlycontrol system that ensures high productivity at lowest costs possible. The machine is easy to operate and set for the functions required. Safe pallet handling - fewer work-related injuries. Increases productivity - always a pallet ready for...

 Open the catalog to page 2
