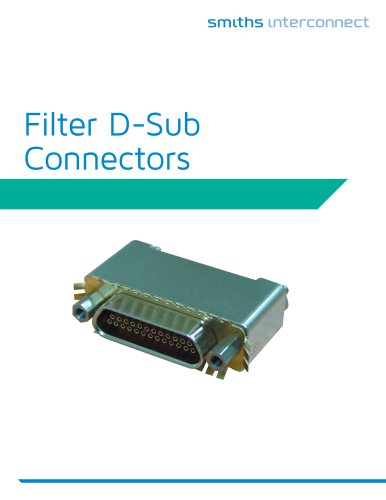

Filter D-Sub Connectors

Filter D-Sub smiths interconnect

Filter D-Sub MIL-DTL-24308Connectors MIL-DTL-24308 D-Subminiature filter connectors are designed to meet or exceed all applicable requirements of the military specification. These connectors are intermateable and interchangeable with the standard non-filtered connectors. Smith Connectors also offers combo D-Sub arrangements for power coaxial and signal contacts mixed arrangements. These layouts include 5W5, 8W8, 17W2, 9W1 and 24W7. Consult Factory for Combo D-Sub Arrangements. Smiths Interconnect provides specialty, enhanced performance connectors and cable assemblies and as such does not currently...

Filter D-Sub smiths interconnect Optional Hardware Shell

smiths interconnect Filter D-Sub MIL-DTL-83513 MIL-DTL-83513 Micro-D filter connectors are designed to meet or exceed all applicable requirements of the military specification. These connectors are intermateable and interchangeable with the standard non-filtered connectors. Unique configurations are also available with customized shells and EMI ground springs. Material and Finishes Shell

smiths interconnect MIL-DTL-83513 (.195) RECEPT (.183) PLUG / oooooooooooooooo ooooooooooooooooo oooooooooooooooooo

smiths interconnect Filter D-Sub Filter Combo D-Subminiature pc Tail n n n Smiths Interconnect offers a complete line of high powered EMI filtered D-Sub connectors including the single row size #8 power contacts (3W3, 3WK3, etc.). Our ceramic planar capacitors can easily achieve up to 47 nF per line on this series. The planar capacitor provides excellent attenuation as well as meeting the Bellcore requirements for 1000 VDC Dielectric Withstanding Voltage. The materials used in the construction meet the UL flammability requirements of 94V-0. Smiths Interconnect filtered D-Sub connectors are intermateable...

Filter D-Sub Filter D-Sub Connectors D-Sub High Power Receptacles

smiths interconnect Filter D-Sub Performance Data Performance Data Smiths Interconnect connectors conform to the applicable military specifications and standards for materials, finishes and mechanical form, fit, and function. Filter connectors are fully intermateable and interchangeable in most instances with standard non-filtered QPL MIL-SPEC connectors. Production Automation Test System Measurements Smiths Interconnect Filter Connectors meet or exceed the applicable requirements of the following specifications: Smiths Interconnect connectors can meet qualification requirements of MIL-DTL-38999,...

Filter D-Sub smiths interconnect Contact Termination PC TAIL SOLDER CUP COMPLIANT PRESS-FIT(SOLDERLESS) Contact Size Add 0.700" to overall length for crimp removable connector with integrated grommet.

smiths interconnect Filter D-Sub Solderless Filter Connectors Smiths Interconnect offers filtered connectors that are capable of providing exceptional low pass filtering and effective insertion loss without the use of soldered components. Smiths Interconnect has qualified the solderless filter connector design to the applicable requirements listed in MIL-DTL-38999. For the qualification test report summary, please visit the technical notes section of our website. Solderless filter connectors contain a specially designed contact clip to make the connection from the signal/power contact to the...

Filter D-Sub smiths interconnect Filter Adapters Non-filter applications can easily be upgraded to EMI/Transient protection without modification to the system with Smiths Interconnect In-Line Filter Adapters. Filter adapters provide the system designer great flexibility in situations where the filtering or system requirements are subject to change. The adapters are designed to be installed between the existing plug and receptacle without having to re-wire or disassemble the system. Both in-line cable and bulkhead/panel mount versions are available. Adapters can be built for any connector series...
