Simplex catalogue

Product catalog summary

Introduction
The document details the New Simplex Systems for hot washing motors and mechanical parts using water and biodegradable alkaline detergents. These systems comply with European safety standards and hold international patents.

Technological Advancements
Equipped with the DGT Electronic Control System, these systems enhance safety, allow upgrades, optimize machine functions, reduce electricity use, minimize vapor emissions, and support multi-language management.

Control System Features
The PLC manages parameters like time, temperature, levels, alarms, and maintenance. It supports a weekly ON/OFF schedule for the tank heating system and oil separator, storing cycle parameters in five programs.

Model Specifications
Specifications include tank capacity, weight, mechanical rotation power, exhaust power, heating power, total power, power supply, dimensions, washing capacity, and pump details.

Standard Features and Equipment
All models feature stainless steel pumps and filters, mechanical basket rotation, and safety limit switches. They cater to washing temperatures below and above 60°C with specific features for each range.

Available Accessories
Optional accessories include vapor exhaust, level control with filling solenoid valve, disk oil separator, special gaskets, under-basket panels, and configurations for abrasive or caustic contaminants.

Energy Efficiency
The "Energy Saving" function controls maximum electrical input, reducing energy consumption.

Conclusion
The New Simplex Systems provide advanced, efficient, and safe washing solutions for motors and mechanical parts, with customizable features and accessories for various industrial needs.

Specifications
High-pressure pumps for washing above 60°C, with options for galvanized iron or stainless steel components. Systems support hot washing up to 90°C with an integrated spent fluid purification cycle, including automatic residue separation and dirt condensation.

Models and Capacities
Models (LP1P, LP2P, LP3P, LP4P, LP1C, LP2C, LP3C, LP4C) vary in weight, dimensions, and capacities. Pneumatic models operate at 6 bar, while electric models require a 230V single-phase power supply.

Standard Features
Includes removable stainless steel panels, pressure washer brush, compressed air blow gun, and sliding tempered glass front. Electric models have an electric pump with a stainless steel filter and heating element; pneumatic models have a pneumatic pump and external PVC tank.

Available Accessories
Electrical and pneumatic vapor exhaust systems, and doors with handles for electric and pneumatic models, resistant to petroleum products.

Contact Information
SME, Via Mori, 6 - Loc. Prunaro, 40054 Budrio (BO), Italy. Tel: +39 051 800 862, Fax: +39 051 803 769, Website: www.sme.nu, Email: [email protected]

Catalog excerpts

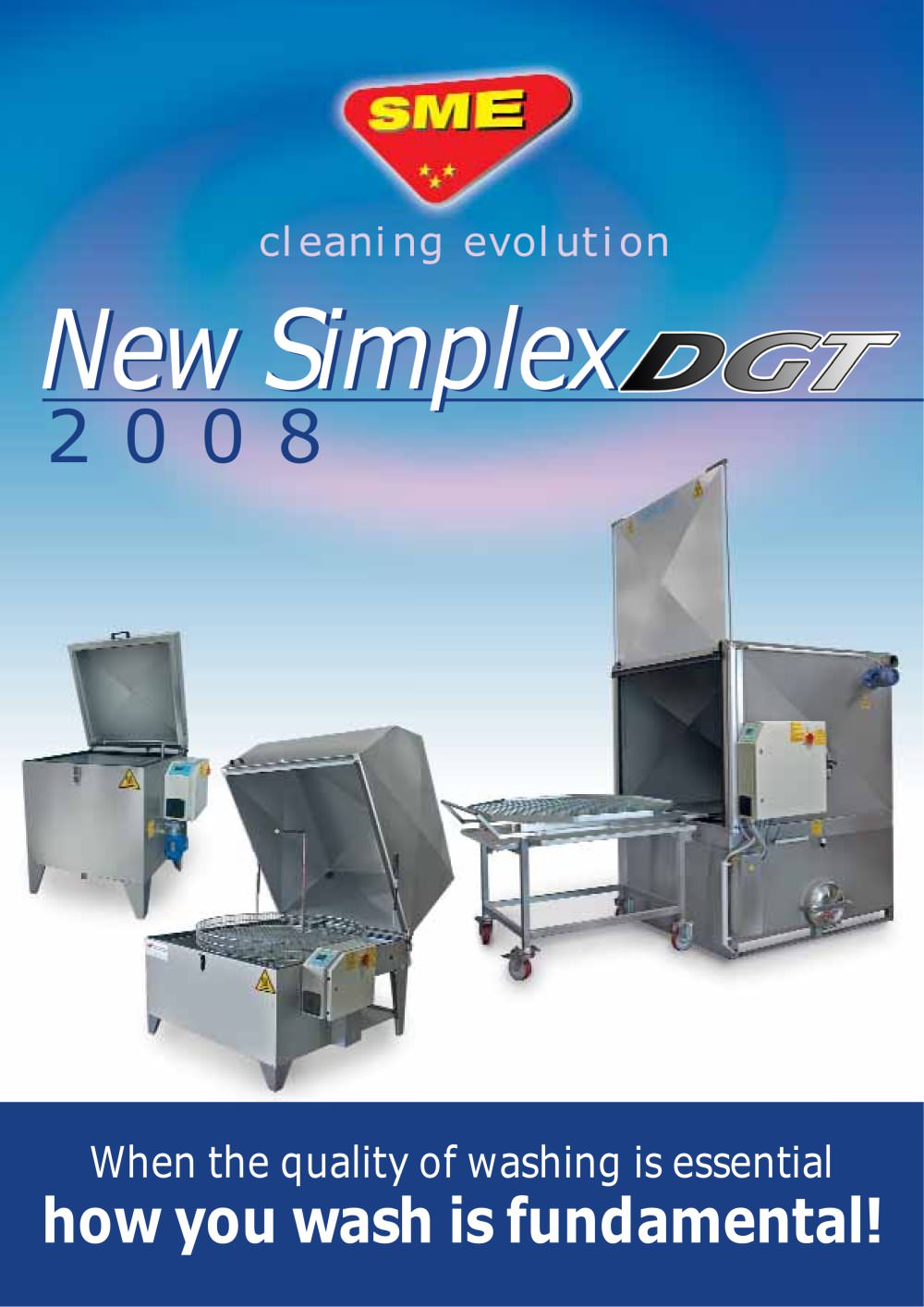

cleaning evolution When the quality of washing is essential how you wash is fundamenta l! >

Open the catalog to page 1

PLC is made up ofelectronic circuits dedicated tothe management of controls pluselectronic components tomanage power peripherals.The DGT system offers thecapability of managing allparameters, time andtemperature settings, levels,alarms, scheduled maintenance,motor protection, current control,etc.A weekly ON/OFF program can be set for both thetank heating system and oil separator.Cycle parameters (times and temperatures) can bememorised in 5 different programs.The PLC is extremely easy and intuitive to use, in anyof the 5 available languages: I, GB, D, F and E.Other custom features available on...

Open the catalog to page 2

Mod.LP1 PMod.LP1 C MOD. OUTER DIMENSIONS (*)mmAB HWASHING CAPACITYmmlphTANKLPUMPkWHEAT.kW WEIGHTkgWEIGHT(*)TOTAL(*)kW POWER SUPPLYpneumatic/electric LP1P 7004001600600380400404030PNEUM.--air - 6 bar LP2P 9005001700750500500505650PNEUM.--air - 6 bar LP3P 115075019001000750600708050PNEUM.--air - 6 bar LP4P 1600110020001500100070010020050PNEUM. -- air - 6 bar LP1C 75040016006003804004048300.1522.2230V single-ph. LP2C 90050017007505005005062500.1522.2230V single-ph. LP3C 1150750190010007506007086500.1522.2230V single-ph. LP4C 16001100200015001000700100210500.1522.2230V single-ph. (*) excluding accessories...

Open the catalog to page 8
