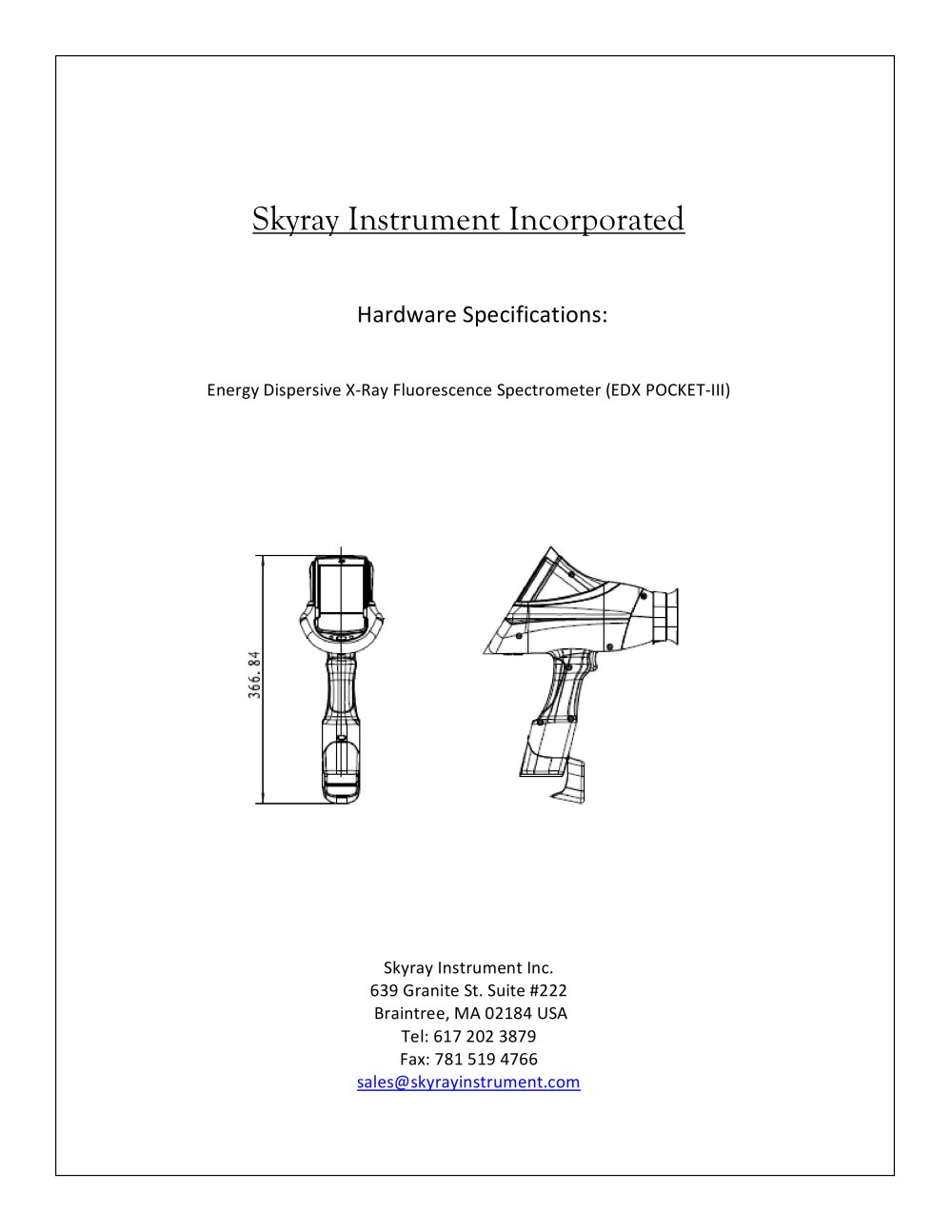

Handheld Pocket III XRF Spectrometer

Product catalog summary

Product Specifications

Product Name: Energy Dispersive X-ray Fluorescence Spectrometer, EDX Pocket-III XRF.
Description: A portable spectrometer capable of analyzing up to 24 elements simultaneously, from sodium to uranium. It features advanced thermoelectric cooling and a Si-PIN semiconductor X-ray detecting system for high precision and accuracy.
Key Features: Bluetooth remote control, unlimited SD card data storage, extended battery life (over four hours), automatic shutdown, and optional GPS for sample location tracking.

Instrument Specifications

Measurement Accuracy: +/- 0.05%
Repeatability: +/- 0.1%
Operational Temperature: -20˚C to 40˚C
Dimensions: 260 x 325 x 125 mm
Weight: 1.4 kg
Humidity Levels: ≤ 70%
Measurement Time: 10–200 seconds
Power Supply: DC 7.4V with two rechargeable lithium batteries

System Configurations

Sample Chamber: Open chamber for single sample testing.
Detector: Thermoelectric cooling Silicon PIN semiconductor with signal-to-noise enhancer.
Power Supply: High voltage (10-40KV) and low voltage units for various components.

Safety Precautions

Follow all safety instructions to avoid voiding the warranty and ensure safe operation.
Avoid using the instrument near flammable substances, in damp or dusty environments, or where temperatures exceed operational levels.

Operational Procedures

Offers portable and fixed measurement modes.
Ensure no water, heat, or electromagnetic interference is present during operation.
Follow specific steps for connecting and operating the instrument in both modes.

Maintenance

Handle with care and ensure only authorized personnel operate the instrument.
Use a regulated power supply and avoid disassembly by non-professionals.
Protect from environmental interferences and clean with appropriate materials.
Warm up the instrument before use and select appropriate programs for different samples.
