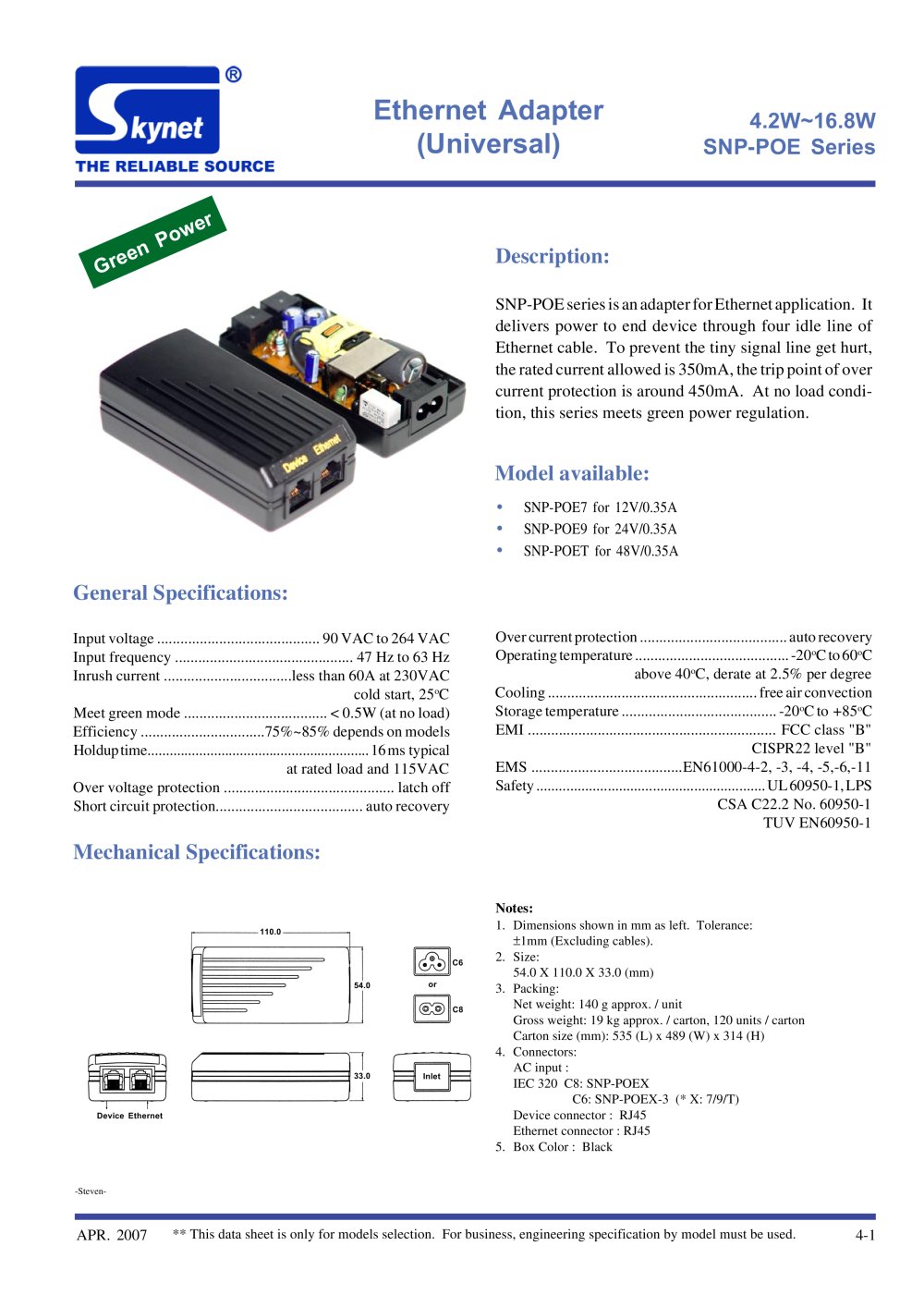

SNP-POE Series / SNP-POEX-3 Series

SNP-POE Series / SNP-POEX-3 Series

Product catalog summary

Overview:
The SNP-POE Series is a universal Ethernet adapter designed to deliver power through Ethernet cables. It supports models with power outputs ranging from 4.2W to 16.8W and is suitable for various voltage requirements.

Mechanical Specifications:

Over current protection with auto recovery.
Operating temperature: -20°C to 60°C, with derating above 40°C.
Cooling via free air convection.
Storage temperature: -20°C to +85°C.
EMI compliance: FCC class "B", CISPR22 level "B".
EMS compliance: EN61000-4 series.
Safety standards: UL 60950-1, CSA C22.2 No. 60950-1, TUV EN60950-1.

General Specifications:

Input voltage: 90 VAC to 264 VAC.
Input frequency: 47 Hz to 63 Hz.
Inrush current: <60A at 230VAC, cold start at 25°C.
Green mode power consumption: <0.5W at no load.
Efficiency: 75% to 85% depending on model.
Holdup time: 16 ms typical at rated load and 115VAC.
Over voltage protection: latch off.
Short circuit protection: auto recovery.

Output Specifications:

Models available: SNP-POE7 (12V/0.35A), SNP-POE9 (24V/0.35A), SNP-POET (48V/0.35A).
Output voltage accuracy: ±1%.
Ripple and noise: 100mVpp for 12V and 24V models, 200mVpp for 48V model.
Line and load regulation: defined by specific conditions.

Physical and Packaging Details:

Dimensions: 54.0 x 110.0 x 33.0 mm.
Net weight: 140 g per unit; Gross weight: 19 kg per carton (120 units).
Connectors: AC input via IEC 320 C8 or C6, device and Ethernet connectors via RJ45.
Box color: Black.

Performance Characteristics:

Switching and line frequency ripple, output turn on/off waveforms, and hold-up time are specified for performance evaluation.
Over voltage protection trip point for SNP-POET model is around 59.6V.
