Skynet Rack Mount
Product catalog summary

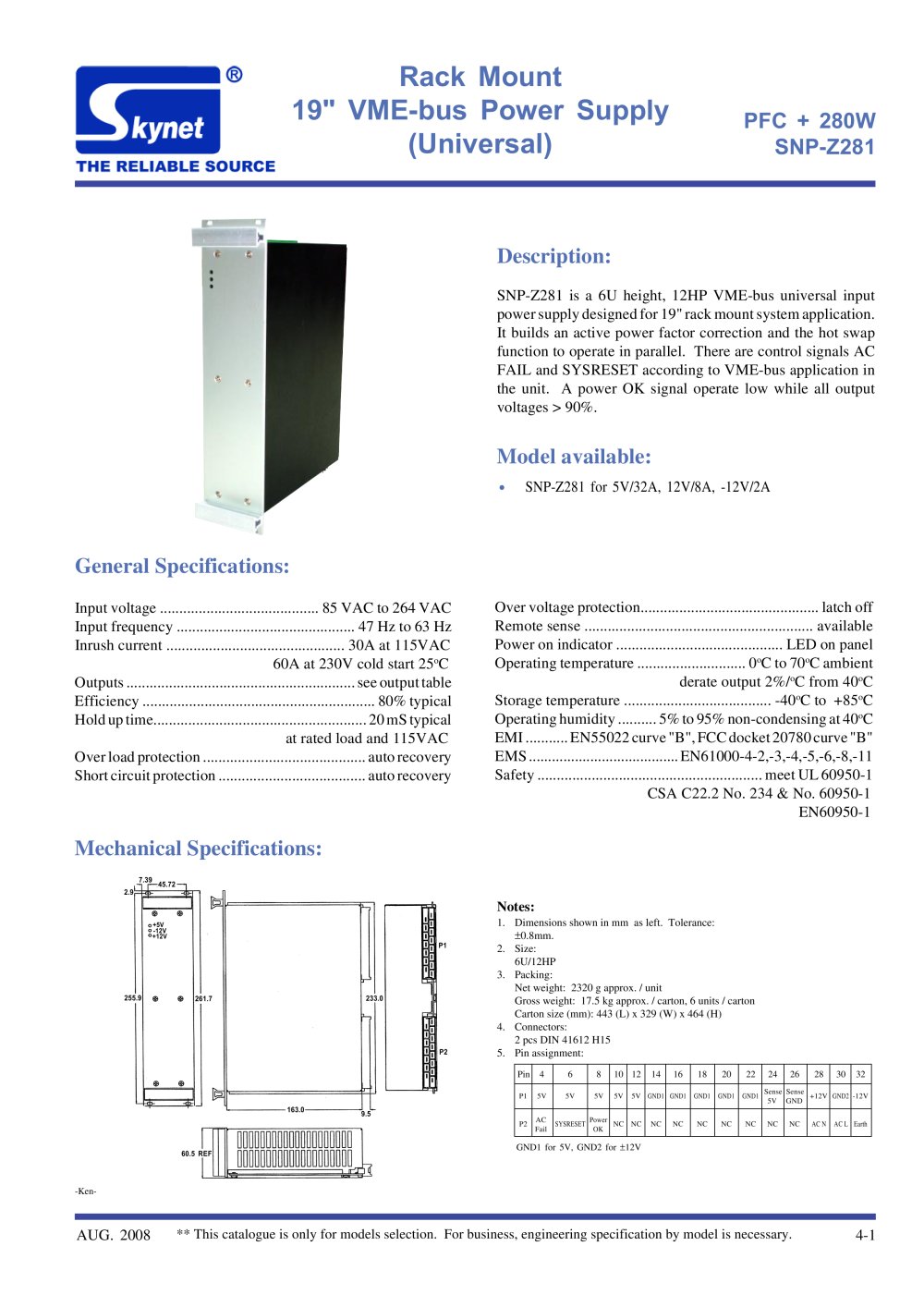

Overview: The SNP-Z281 is a 280W VME-bus power supply designed for 19" rack mount systems. It features universal input, active power factor correction, and hot swap functionality for parallel operation. Key control signals include AC FAIL and SYSRESET, with a power OK signal indicating when all output voltages exceed 90%.
Specifications:
- Input: 85 VAC to 264 VAC, 47 Hz to 63 Hz
- Output: 5V/32A, 12V/8A, -12V/2A
- Efficiency: 80% typical
- Operating Temperature: 0°C to 70°C, derate output 2%/°C from 40°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% non-condensing at 40°C
- EMI/EMS Compliance: EN55022, FCC docket 20780, EN61000 series
- Safety Standards: UL 60950-1, CSA C22.2 No. 234 & No. 60950-1, EN60950-1
Mechanical Specifications:
- Dimensions: 6U/12HP
- Weight: Net 2320g per unit, Gross 17.5kg per carton (6 units)
- Connectors: 2 pcs DIN 41612 H15
Performance:
- Over Voltage Protection: Latch off
- Over Load and Short Circuit Protection: Auto recovery
- Hold Up Time: 20ms typical at rated load and 115VAC
- Ripple & Noise: Measured with 15MHz bandwidth limited oscilloscope
Output Specifications:
- 5V Rail: 0A to 32A, Voltage Accuracy ±1%, Ripple 50mVpp
- 12V Rail: 0A to 8A, Voltage Accuracy ±2%, Ripple 120mVpp
- -12V Rail: 0A to 2A, Voltage Accuracy ±2%, Ripple 120mVpp
Additional Features:
- Remote sense available
- Power on indicator via LED on panel
- Control signals for system integration
