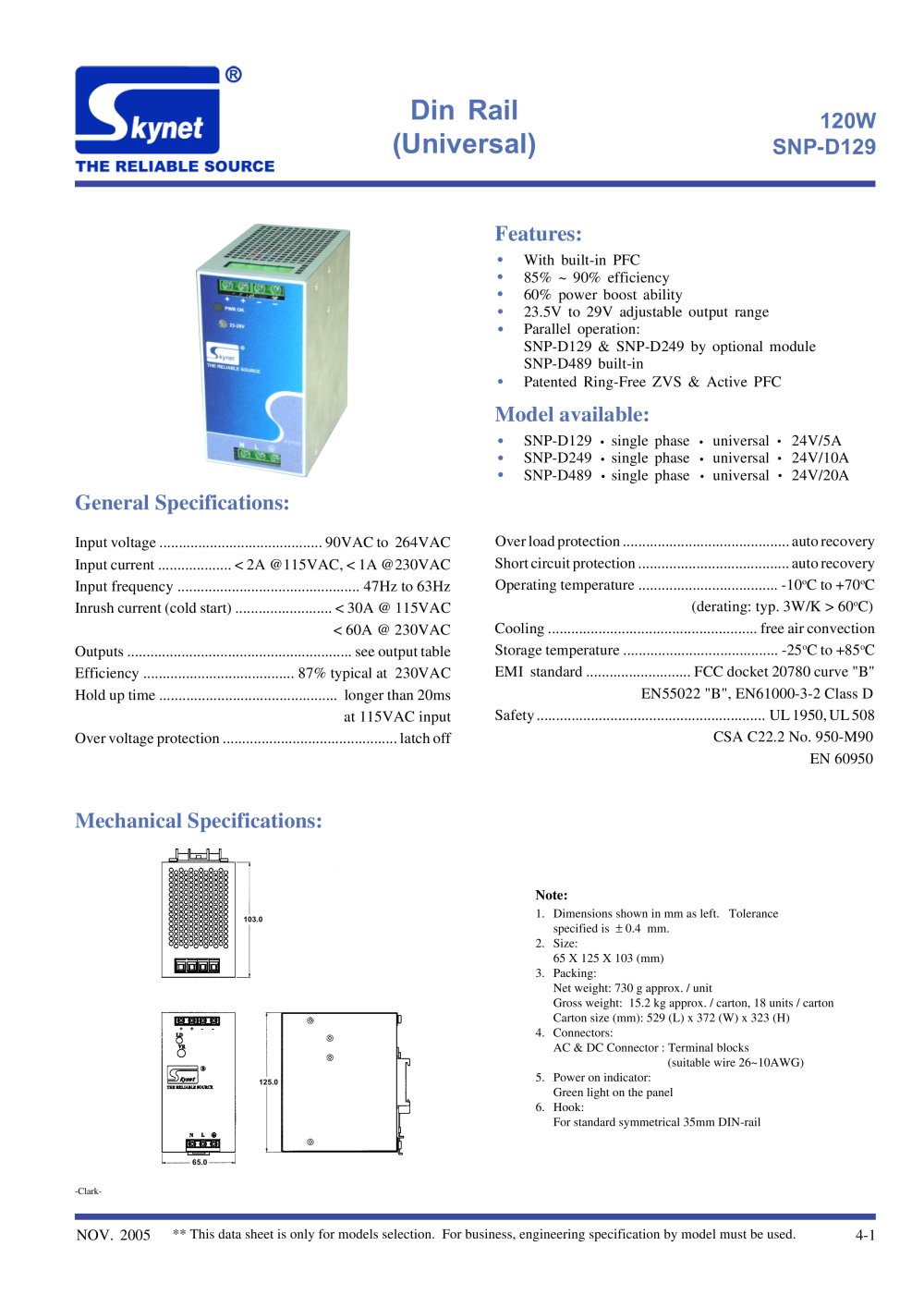

Overview: This document is a technical data sheet for the Clark SNP-D129 Din Rail power supply, intended for model selection purposes. It provides detailed specifications, features, and performance metrics for the 120W power supply unit.

Specifications:

Input Voltage: 90VAC to 264VAC
Input Current: Less than 2A at 115VAC, less than 1A at 230VAC
Input Frequency: 47Hz to 63Hz
Inrush Current: Less than 30A at 115VAC, less than 60A at 230VAC
Efficiency: 87% typical at 230VAC
Operating Temperature: -10°C to +70°C, with derating above 60°C
Storage Temperature: -25°C to +85°C
Safety Standards: UL 1950, UL 508, CSA C22.2 No. 950-M90, EN 60950

Features:

Over voltage protection with latch off
Overload and short circuit protection with auto recovery
Free air convection cooling
Built-in Power Factor Correction (PFC)
Adjustable output range from 23.5V to 29V
Parallel operation capability with optional module

Mechanical Specifications:

Dimensions: 65 x 125 x 103 mm
Net Weight: 730 g per unit
Carton Weight: 15.2 kg for 18 units
Connectors: Terminal blocks suitable for 26~10AWG wire
Power Indicator: Green light on the panel
Mounting: Standard symmetrical 35mm DIN-rail

Output Specifications:

Model SNP-D129: Single phase universal 24V/5A
Peak load capability for up to 1 minute at 45°C
Line and load regulation defined by specific conditions
Ripple and noise measured with a 15MHz bandwidth limited oscilloscope

Performance:

Switching frequency ripple and line frequency ripple are specified
Over voltage protection trip point around 29.8V
Step response and hold-up time are detailed with specific waveforms

Catalog excerpts

MODEL OUTPUT LOAD VOLTAGE RIPPLE LINE LOAD NO. RAIL MIN. RATED PEAK ACCURACY NOISE REG. REG. SNP-D129+24V0A 5A6A 2%<40mVpp ѱ 1% 1% Notes: > 1.Each output can deliver peak load for max. 1 min. at 45 o C or even continuous with forced cooling.2.At factory, in 60% rated load condition, the output is checked to be within the accuracy range while the main output is setwithinthe specified accuracy range at rated load.3.Line regulation is defined by changing ѱ 10% of input voltage from nominal line at rated load.4.Load regulation is defined by changing 40% of measured output load from 60% rated load.5.Ripple...
