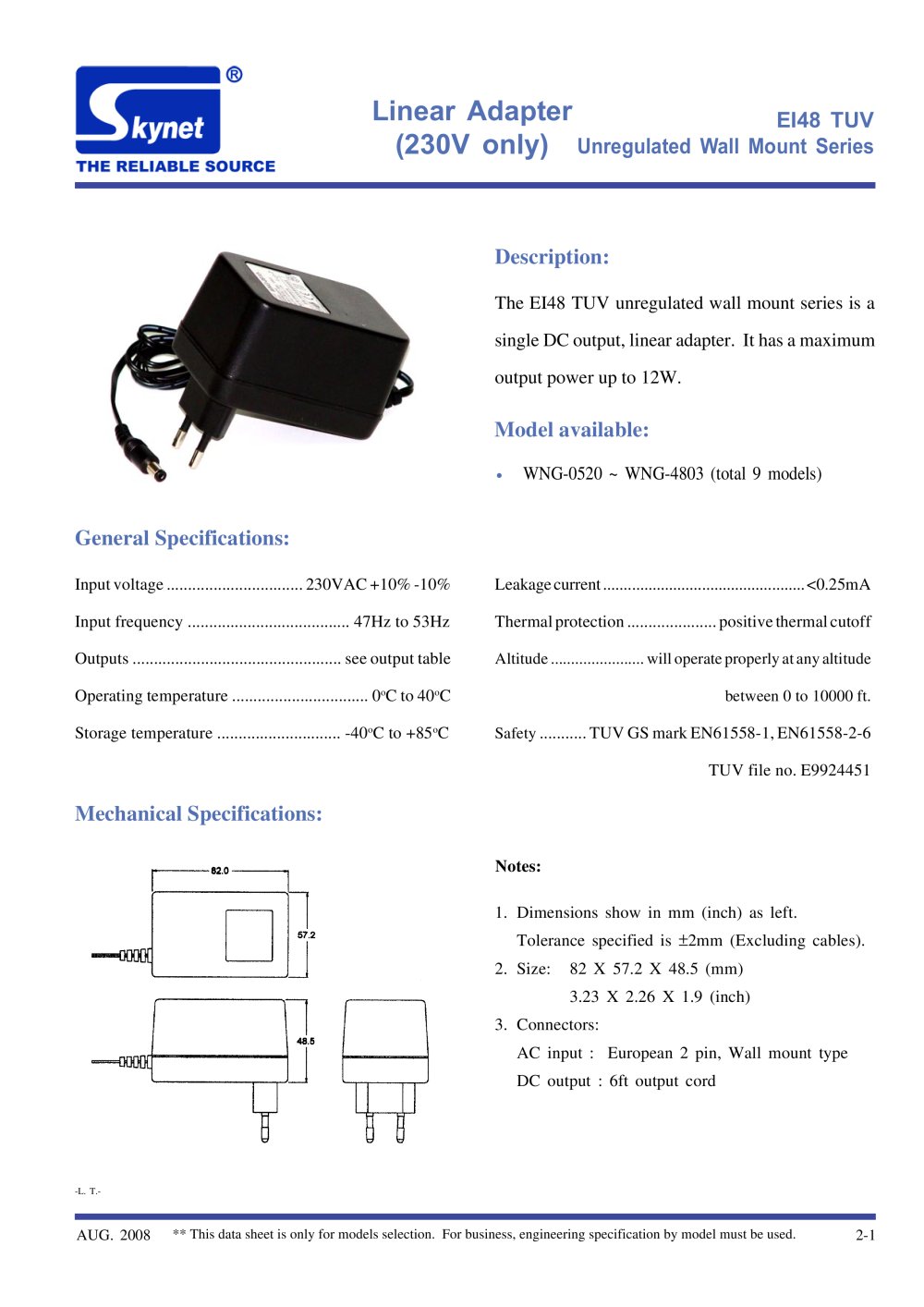

Overview: The EI48 TUV unregulated wall mount series is a linear adapter designed for single DC output with a maximum power output of up to 12W. It is specifically for use with a 230V AC input.

Specifications:

Input Voltage: 230VAC with a tolerance of +10% to -10%
Input Frequency: 47Hz to 53Hz
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to +85°C
Leakage Current: Less than 0.25mA
Thermal Protection: Positive thermal cutoff
Altitude: Operates properly between 0 to 10,000 ft
Safety Standards: TUV GS mark EN61558-1, EN61558-2-6

Mechanical Specifications:

Dimensions: 82 x 57.2 x 48.5 mm (3.23 x 2.26 x 1.9 inches)
Connectors: European 2 pin for AC input, 6ft output cord for DC output

Model Variants: The series includes nine models ranging from WNG-0520 to WNG-4803, each with different output voltage and current specifications.

Output Specifications: The output voltage and current vary by model, with RMS ripple and noise less than 800mV at rated load and 230V/50Hz AC input.

Catalog excerpts

EI48 TUV Unregulated Wall Mount Series -2

MODELOUTPUTLOADPOWERNO LOADNO.(VDC)(A)(W)(V) WNG-05205210< 9WNG-0610616< 10 WNG-0910919< 15 WNG-1205120.56< 19 WNG-121012112< 19 WNG-1508150.812< 23 WNG-2403240.256< 35 WNG-4801480.136.2< 63 WNG-4803480.2512< 67 WNG-2405 WNG-1210 Note:The RMS ripple and noise of output is less than800mV at rated load, 230V/50Hz AC input. > -L. T.- 2-2AUG. 2008 ** This data sheet is only for models selection. For business, engineering specification by model must be used. size="-2">
