Portable Fog/Jet Monitor
2Pages

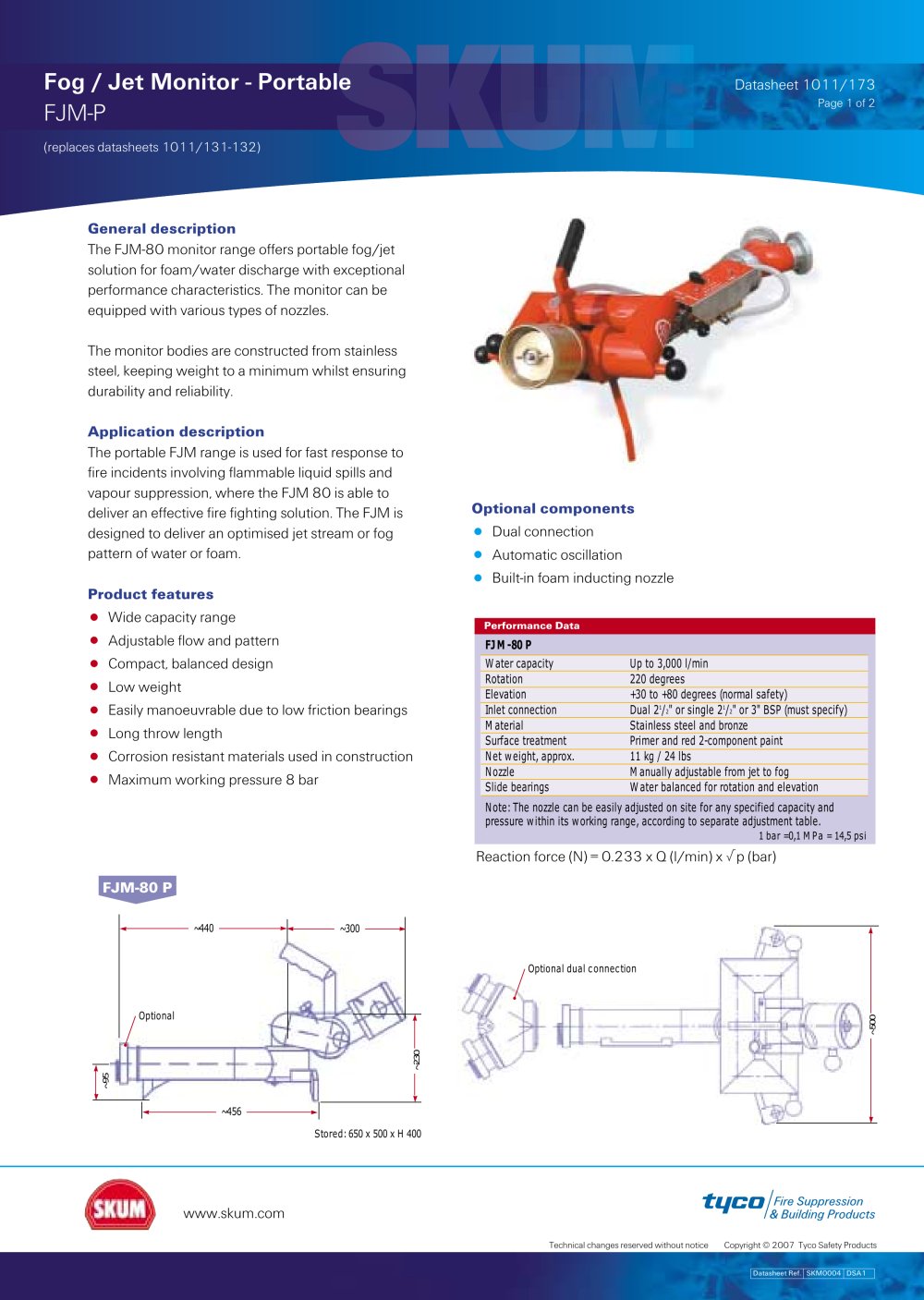

Page 1 of 2 (replaces datasheets 1011/131-132) General description The FJM-80 monitor range offers portable fog/jetsolution for foam/water discharge with exceptional performance characteristics. The monitor can be equipped with various types of nozzles.The monitor bodies are constructed from stainlesssteel, keeping weight to a minimum whilst ensuring durability and reliability. Application description Product features The portable FJM range is used for fast response tofire incidents involving flammable liquid spills and vapour suppression, where the FJM 80 is able to deliver an effective fire fighting solution. The FJM is designed to deliver an optimised jet stream or fog pattern of water or foam. Optional components > Automatic oscillation Built-in foam inducting nozzle > Wide capacity range > Performance Data Adjustable flow and pattern > FJM-80 P Compact, balanced design > Water capacityUp to 3,000 l/minRotation220 degrees Elevation+30 to +80 degrees (normal safety) Inlet connectionDual 2 Easily manoeuvrable due to low friction bearings > / 2 " or single 2 / 2 " or 3" BSP (must specify)MaterialStainless steel and bronze Surface treatmentPrimer and red 2-component paint Net weight, approx.11 kg / 24 lbs NozzleManually adjustable from jet to fog Slide bearingsWater balanced for rotation and elevationNote: The nozzle can be easily adjusted on site for any specified capacity and pressure within its working range, according to separate adjustment table. Long throw length > Corrosion resistant materials used in construction Maximum working pressure 8 bar > 1 bar =0,1 MPa = 14,5 psi Reaction force (N) = 0.233 x Q (l/min) x բȚp (bar) FJM-80 P > ~440 ~300 Optional dual connection Optional ~500 ~230 ~95 ~456 Stored: 650 x 500 x H 400 www.skum.com > Technical changes reserved without noticeCopyright 2007 Tyco Safety Products Datasheet Ref. SKM0004 DSA1 size="-3">

~440 ~300 ~480 ~430 > Min. 30 ~230 ~235 3Д BSP ~436 Optional dual connectionAdjustment of area max 60 Oscillator Start / StopDisconnection > ~510 ~500 Technical changes reserved without noticeCopyright Щ 2007 Tyco Safety Products size="-1">
