Low Expansion Foam Branchpipe

Product catalog summary

General Description
The MLR-40 A and SA are portable, low expansion, hand-held foam applicators designed for coverage of flammable liquid spills or fighting small fires. They are suitable for both indoor and outdoor use.

Product Features

Constructed with a stainless steel body and brass nozzle.
Lightweight and easy to use.
Capable of covering large areas.
Foam induction capacity up to 6% for the MLR-40 SA model.
Includes a pick-up tube for the MLR-40 SA.

Technical Specifications

Material: Stainless steel pipe, brass nozzle, nickel-plated brass valve.
Connection: 1 1/2" BSP female thread.
Weight: MLR-40A - 3.2 kg (7 lbs), MLR-40SA - 4 kg (9 lbs).
Foam expansion ratio: Up to 1:15.
Capacity: Up to 555 l/min.

Performance Data

MLR-40 A: Water inlet capacity ranges from 200 to 400 l/min with varying pressure and reaction force, achieving a jet range of up to 28 meters.
MLR-40 SA: Similar performance with foam mixing capabilities of 3% and 6%.

Connections and Optional Components

Standard connection is a 1" female screw-threaded BSP.
Optional hose coupling available to meet international standards.

Catalog excerpts

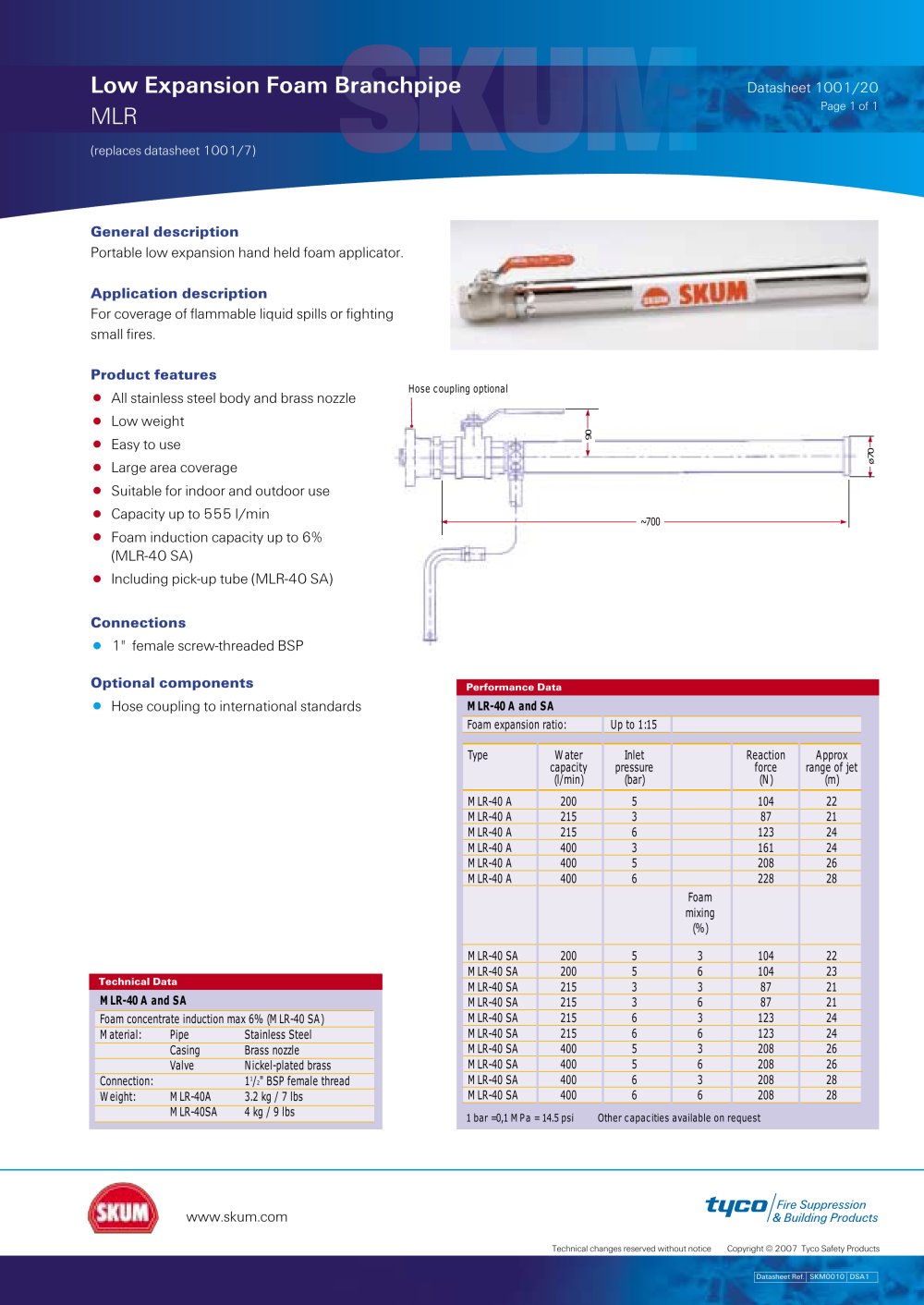

Datasheet 1001/20 > Page 1 of 1 (replaces datasheet 1001/7) General description Portable low expansion hand held foam applicator. Application description For coverage of flammable liquid spills or fightingsmall fires. Product features > Hose coupling optional All stainless steel body and brass nozzle > Large area coverage > ո70 Suitable for indoor and outdoor use > Capacity up to 555 l/min > ~700 Foam induction capacity up to 6% (MLR-40 SA) > Including pick-up tube (MLR-40 SA) Connections > 1" female screw-threaded BSP Optional components > Performance Data Hose coupling to international standards > MLR-40 A and SA Foam expansion ratio:Up to 1:15 TypeWater Inlet ReactionApproxcapacity pressure forcerange of jet(l/min)(bar)(N)(m)MLR-40 A200510422MLR-40 A21538721 MLR-40 A215612324 MLR-40 A400316124 MLR-40 A400520826 MLR-40 A400622828Foammixing(%)MLR-40 SA2005310422MLR-40 SA2005610423 MLR-40 SA215338721 MLR-40 SA215368721 MLR-40 SA2156312324 MLR-40 SA2156612324 MLR-40 SA4005320826 MLR-40 SA4005620826 MLR-40 SA4006320828 MLR-40 SA4006620828 Technical Data MLR-40 A and SA Foam concentrate induction max 6% (MLR-40 SA)Material: PipeStainless SteelCasingBrass nozzle ValveNickel-plated brassConnection:1 1 / 2 " BSP female threadWeight:MLR-40A3.2 kg / 7 lbsMLR-40SA 4 kg / 9 lbs 1 bar =0,1 MPa = 14.5 psi Other capacities available on request www.skum.com > Technical changes reserved without noticeCopyright թ 2007 Tyco Safety Products Datasheet Ref. SKM0010 DSA1 size="-3">
