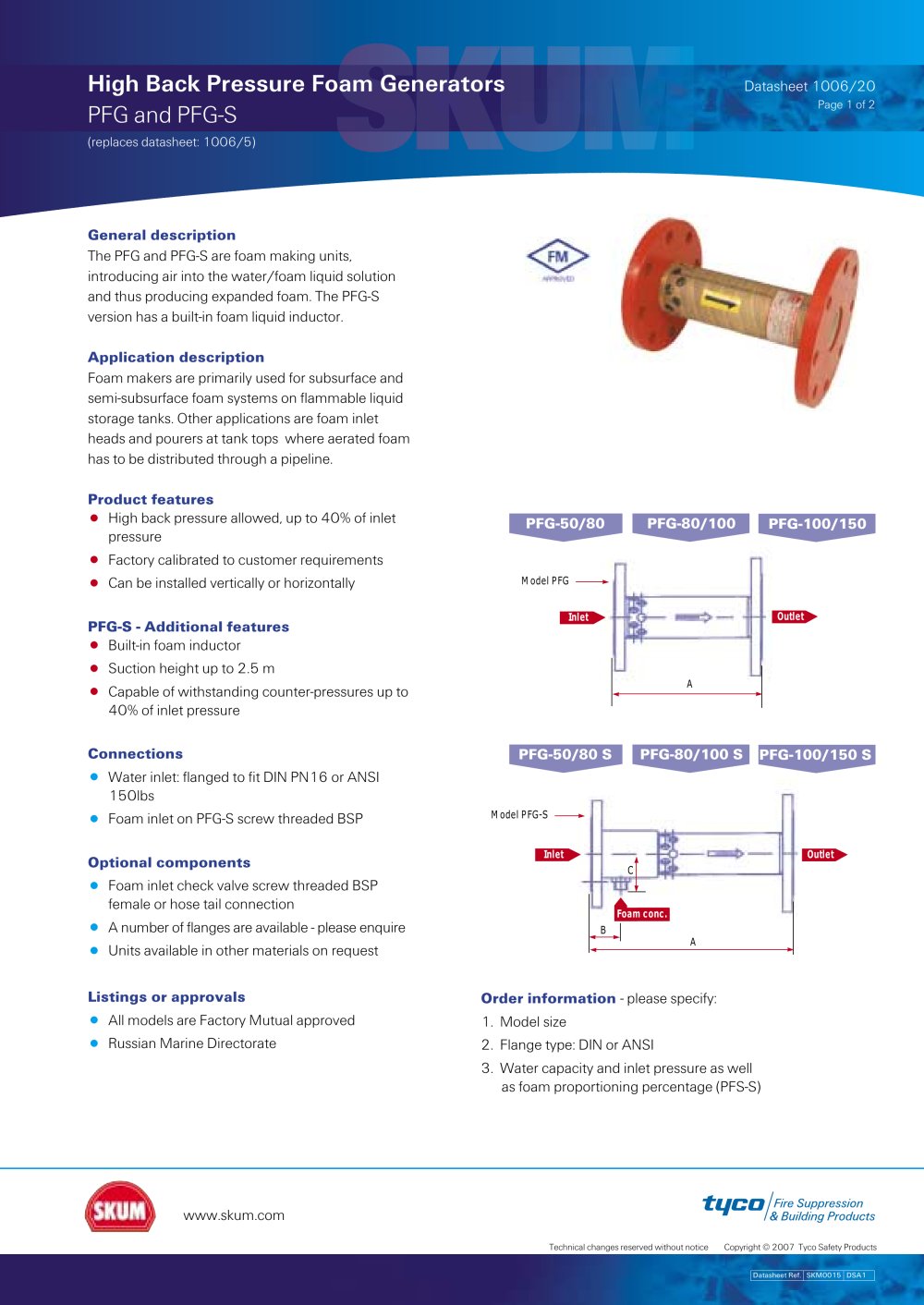

Page 1 of 2 (replaces datasheet: 1006/5) General description The PFG and PFG-S are foam making units,introducing air into the water/foam liquid solution and thus producing expanded foam. The PFG-S version has a built-in foam liquid inductor. Application description Foam makers are primarily used for subsurface andsemi-subsurface foam systems on flammable liquid storage tanks. Other applications are foam inlet heads and pourers at tank tops where aerated foam has to be distributed through a pipeline. Product features > High back pressure allowed, up to 40% of inlet pressure PFG-50/80 PFG-80/100 PFG-100/150 > Factory calibrated to customer requirements Can be installed vertically or horizontally > Model PFG PFG-S - Additional features > Inlet Outlet Built-in foam inductor > Suction height up to 2.5 m Capable of withstanding counter-pressures up to 40% of inlet pressure > A Connections > PFG-50/80 S PFG-80/100 S PFG-100/150 S Water inlet: flanged to fit DIN PN16 or ANSI 150lbs > Foam inlet on PFG-S screw threaded BSP > Model PFG-S Optional components > Inlet Outlet C Foam inlet check valve screw threaded BSP female or hose tail connection > Foam conc. A number of flanges are available - please enquire > B Units available in other materials on request > A Listings or approvals > Order information - please specify:1. Model size 2. Flange type: DIN or ANSI 3. Water capacity and inlet pressure as well as foam proportioning percentage (PFS-S) > All models are Factory Mutual approved Russian Marine Directorate www.skum.com > Technical changes reserved without noticeCopyright թ 2007 Tyco Safety Products Datasheet Ref. SKM0015 DSA1 size="-5">
Open the catalog to page 1Performance Data PFG50/80 50/80 S 80/100 80/100 S 100/150 100/150 S Solution capacity100-750 l/min750-1400 l/min1400-2400 l/min27-198 USGPM198-370 USGPM370-634 USGPMDimensions A208 mm275 mm278 mm355 mm352 mm475 mm Dimensions B40 mm60 mm69 mm Dimensions C42 mm52 mm63 mm Connection, inlet50 DIN PN 16 or 80 DIN PN 16 or100 DIN PN 16 or2" ANSI 150 lbs3" ANSI 150 lbs4" ANSI 150 lbsConnection, outlet80 DIN PN 16 or 100 DIN PN 16 or150 DIN PN 16 or3" ANSI 150 lbs4" ANSI 150 lbs6" ANSI 150 lbsConnection, foam concentrateMale > 3 / > 4 " BSPMale 1" BSPMale 1" BSPInduction, foam concentrateMax 6%Max...
