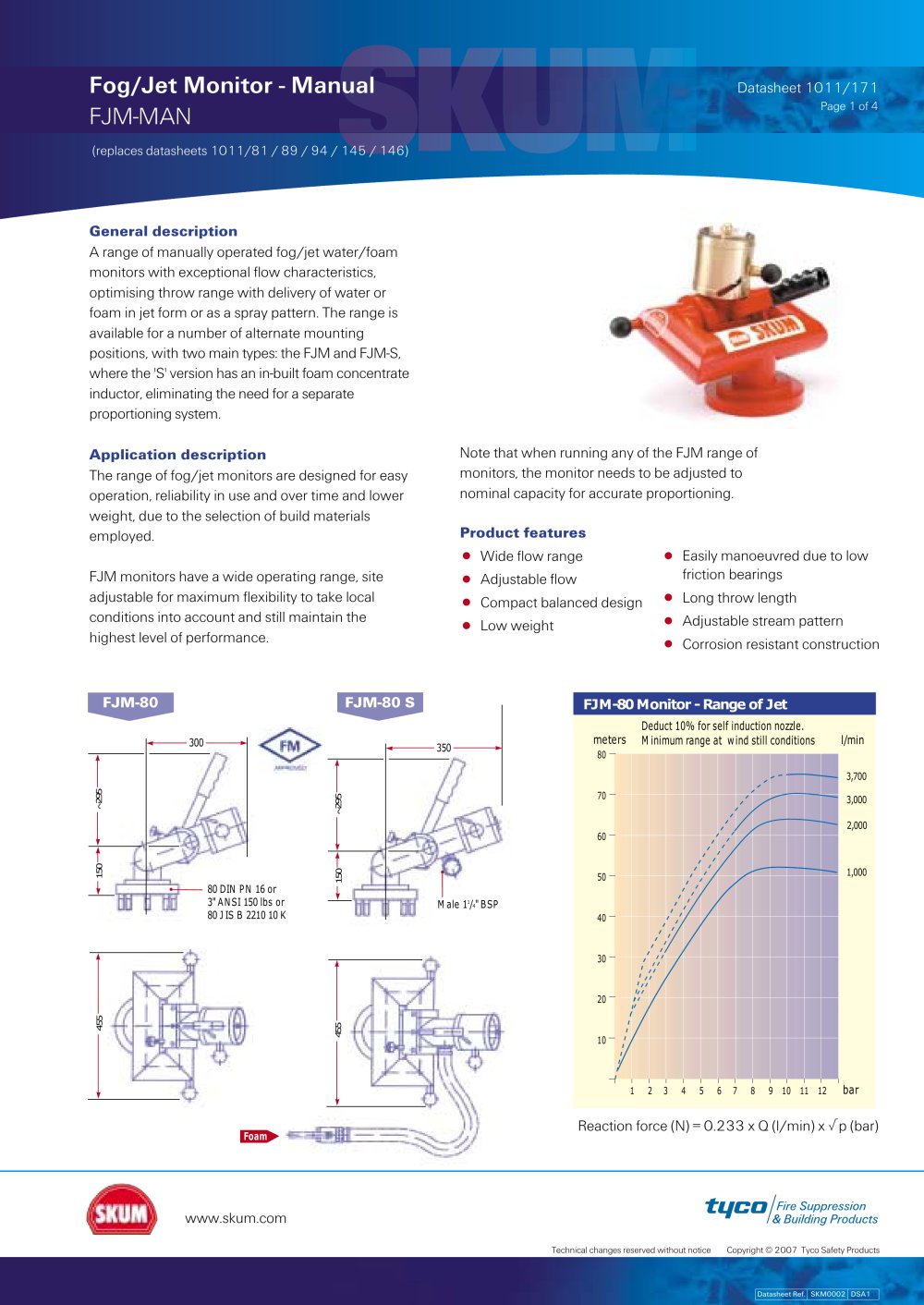

Page 1 of 4 (replaces datasheets 1011/81 / 89 / 94 / 145 / 146) Application description General description The range of fog/jet monitors are designed for easyoperation, reliability in use and over time and lower weight, due to the selection of build materials employed.FJM monitors have a wide operating range, siteadjustable for maximum flexibility to take local conditions into account and still maintain the highest level of performance. A range of manually operated fog/jet water/foammonitors with exceptional flow characteristics, optimising throw range with delivery of water or foam in jet form or as a spray pattern. The range is available for a number of alternate mounting positions, with two main types: the FJM and FJM-S,where the 'S' version has an in-built foam concentrate inductor, eliminating the need for a separate proportioning system. > 3,7001,0003,0002,000 Note that when running any of the FJM range ofmonitors, the monitor needs to be adjusted to nominal capacity for accurate proportioning. Product features > Wide flow range > Compact balanced design > Easily manoeuvred due to low friction bearings Low weight > Long throw length > Adjustable stream pattern Corrosion resistant construction FJM-80 FJM-80 S > FJM-80 Monitor - Range of Jet Deduct 10% for self induction nozzle.Minimum range at wind still conditions 300 350 meters l/min ~295 ~295 150 150 80 DIN PN 16 or3" ANSI 150 lbs or 80 JIS B 2210 10 K Male 1 1 / 4 " BSP 455 455 1 2 3 4 5 6 7 8 9 10 11 12 8070 60 50 40 30 20 10 bar Foam Reaction force (N) = 0.233 x Q (l/min) x √p (bar) www.skum.com > Technical changes reserved without noticeCopyright 2007 Tyco Safety Products Datasheet Ref. SKM0002 DSA1 size="-4">

Page 2 of 4 (replaces datasheets 1011/81 / 89 / 94 / 145 / 146) FJM-100 FJM-100 S > FJM-100 Monitor - Range of Jet Deduct 10% for self induction nozzle.Minimum range at wind still conditions 350 meters l/min 380 ~335 ~335 170 170 100 DIN PN 16 or 4" ANSI 150 lbs or 100 JIS B 2210 10 K Male 2" BSP 520 520 Foam 1 2 3 4 5 6 7 8 9 10 11 12 908070 60 50 40 30 20 10 bar Reaction force (N) = 0.233 x Q (l/min) x √p (bar) Connections > Listings and approvals Main flow connections: flanged according to DIN PN16 or ANSI 150 lbs > Gear operation; optional for FJM-150, standard for FJM-200 >...

Technical changes reserved without noticeCopyright 2007 Tyco Safety Products Datasheet Ref. SKM0002 DSA1 size="-3">
