Fixed Low Expansion Foam Branchpipe

Fixed Low Expansion Foam Branchpipe
2Pages

Catalog excerpts

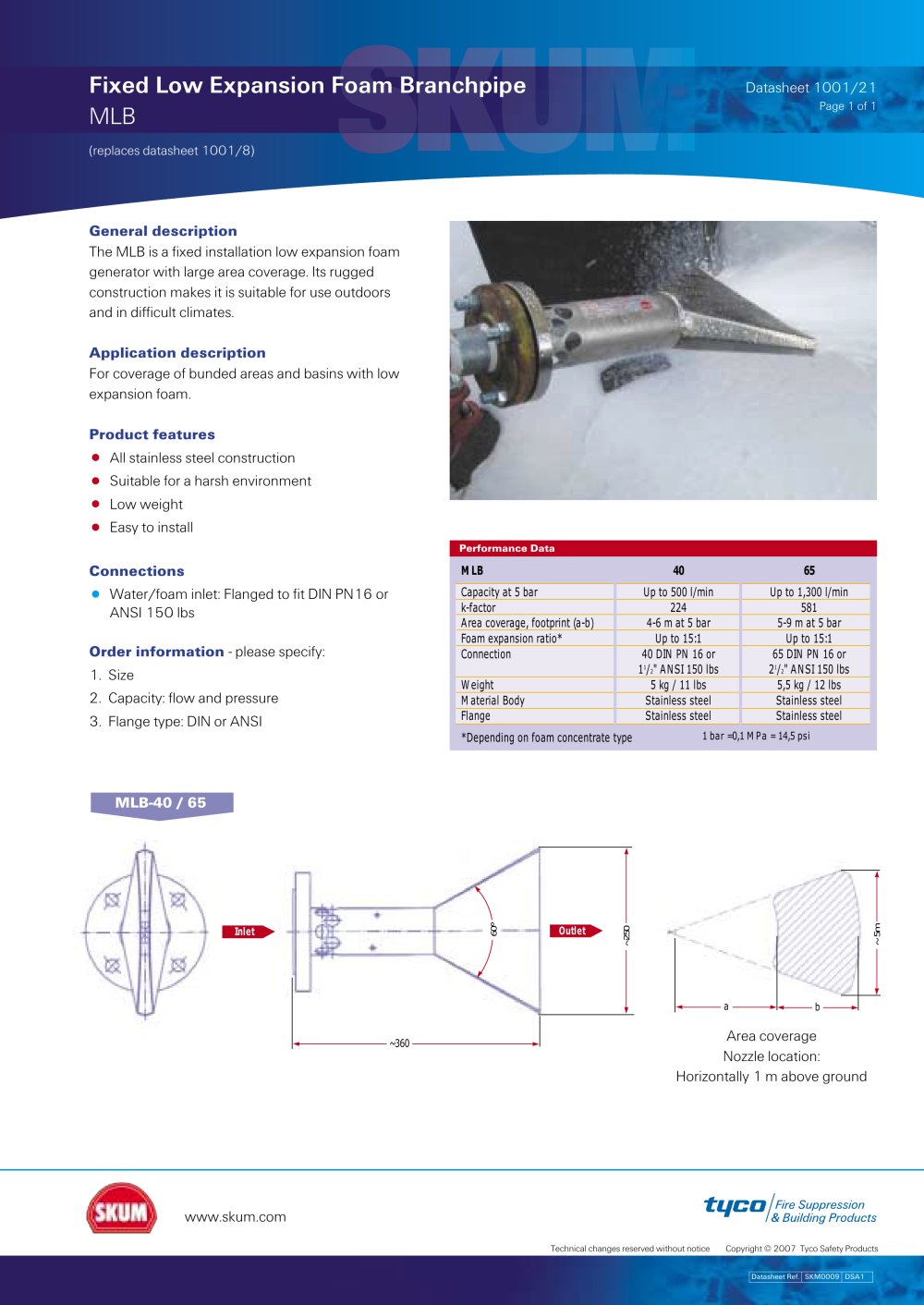

Page 1 of 1 (replaces datasheet 1001/8) General description The MLB is a fixed installation low expansion foamgenerator with large area coverage. Its rugged construction makes it is suitable for use outdoors and in difficult climates. Application description For coverage of bunded areas and basins with lowexpansion foam. Product features > All stainless steel construction > Suitable for a harsh environment > Low weight Easy to install > Performance Data Connections > MLB4065 Water/foam inlet: Flanged to fit DIN PN16 or ANSI 150 lbs > Capacity at 5 barUp to 500 l/minUp to 1,300 l/mink-factor224581 Area coverage, footprint (a-b)4-6 m at 5 bar5-9 m at 5 bar Foam expansion ratio*Up to 15:1Up to 15:1 Connection40 DIN PN 16 or 65 DIN PN 16 or1 Order information - please specify:1. Size 2. Capacity: flow and pressure 3. Flange type: DIN or ANSI > 1 / 2 " ANSI 150 lbs2 1 / 2 " ANSI 150 lbsWeight5 kg / 11 lbs5,5 kg / 12 lbs Material BodyStainless steelStainless steel FlangeStainless steelStainless steel*Depending on foam concentrate type 1 bar =0,1 MPa = 14,5 psi MLB-40 / 65 > Inlet 60հ Outlet ~ 5m ~250 a b ~360 Area coverageNozzle location: Horizontally 1 m above ground www.skum.com > Technical changes reserved without noticeCopyright 2007 Tyco Safety Products Datasheet Ref. SKM0009 DSA1 size="-3">
