General Description: The Skum bladder tank foam proportioning system is designed to introduce foam concentrates into water systems with varying flows and pressures. It features a maintenance-free design with no moving parts, making it ideal for upgrading water sprinkler systems to foam/water systems. The system ensures constant proportioning through a pressure balance between the foam liquid in the bladder and the water in the system.

Product Features:

Manufactured to PED (CE marked) or ASME VIII standards.
Available in volumes up to 7,000 litres.
Compatible with standard and wide-range Skum proportioning equipment.

Connections: Foam/water inlet is flanged according to DIN PN16 or ANSI 150lbs.

Options:

Valve and level gauge.
Material options for inlet/outlet valves.
Tank level indicator.
Fully pre-piped solutions with proportioners available upon request.

Listings or Approvals: Factory Mutual approval for ASME models.

Order Information: Specify tank size and design standard.

Technical Data:

Design pressure: 12.1 bar / 175 psi.
Design standard: ASME section VIII, PED.
Optional approvals: Det Norske Veritas, American Bureau of Shipping, Lloyd’s Register, Factory Mutual (ASME tanks only).
Scope of supply includes standard water/foam inlet and vent plugged, stainless steel valves, and optional brass or stainless steel valves.
Material: Pressure vessel made of carbon steel, bladder of butyl rubber, and internals of stainless steel.
Surface treatment: Primer and red epoxy on the outside.
Connection sizes: 50 DIN PN 16 or 2" ANSI 150 lbs, 80 DIN PN 16 or 3" ANSI 150 lbs.

Dimensions and Weights: Detailed specifications for various tank sizes ranging from 400 to 7000 litres, including dimensions and weights for both PED and ASME standards.

Catalog excerpts

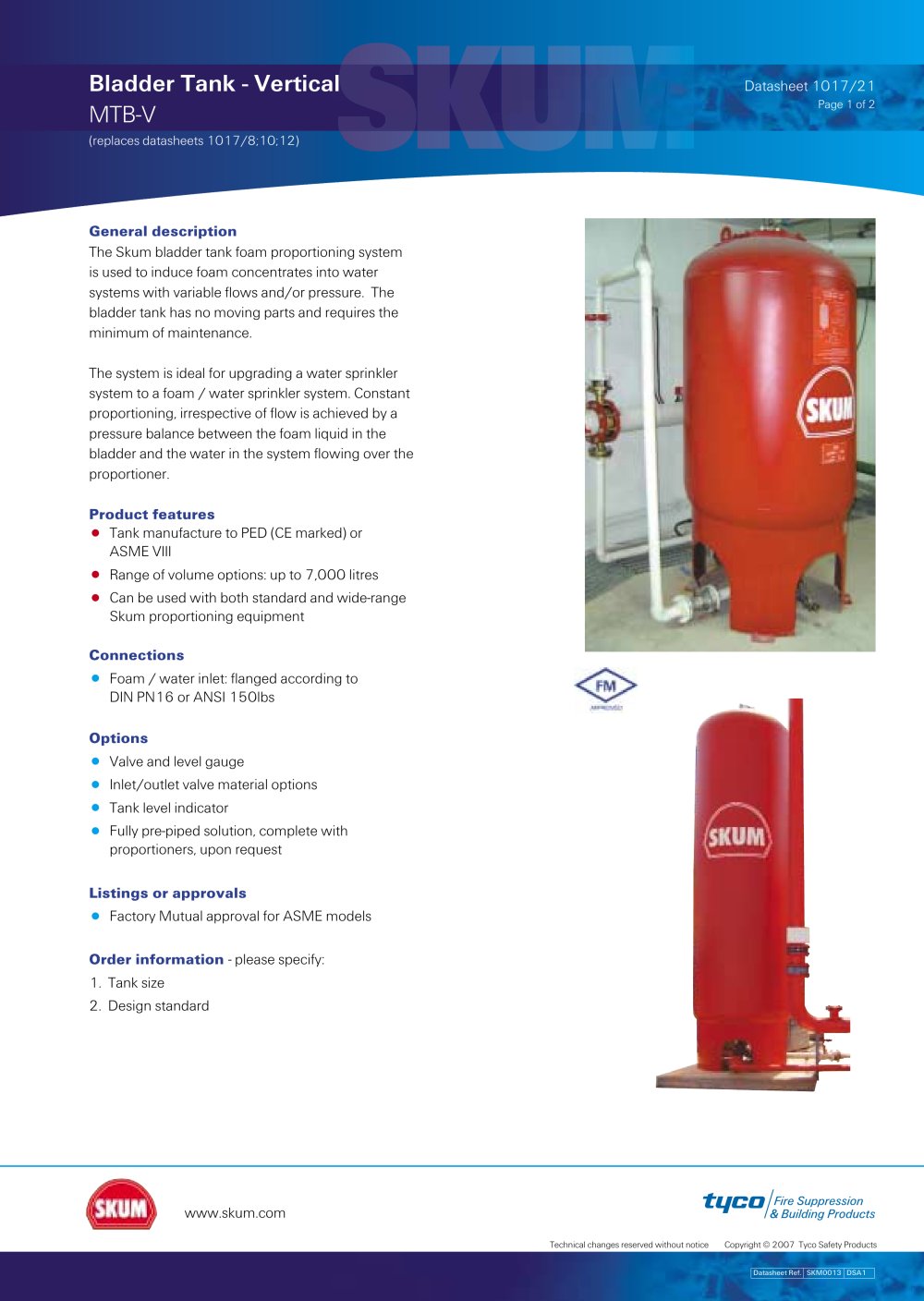

Page 1 of 2 (replaces datasheets 1017/8;10;12) General description Product features The Skum bladder tank foam proportioning systemis used to induce foam concentrates into water systems with variable flows and/or pressure. The bladder tank has no moving parts and requires the minimum of maintenance.The system is ideal for upgrading a water sprinklersystem to a foam / water sprinkler system. Constant proportioning, irrespective of flow is achieved by a pressure balance between the foam liquid in the bladder and the water in the system flowing over the proportioner. > Tank manufacture to PED (CE marked) or ASME VIII > Range of volume options: up to 7,000 litres Can be used with both standard and wide-range Skum proportioning equipment Connections > Foam / water inlet: flanged according to DIN PN16 or ANSI 150lbs > Valve and level gauge > Inlet/outlet valve material options > Tank level indicator Fully pre-piped solution, complete with proportioners, upon request > Listings or approvals Factory Mutual approval for ASME models Order information - please specify:1. Tank size 2. Design standard www.skum.com > Technical changes reserved without noticeCopyright թ 2007 Tyco Safety Products Datasheet Ref. SKM0013 DSA1 size="-4">
