1005-BW

Product catalog summary

Overview: The SITMA 1005-BW is a versatile film and paper wrapping machine designed for medium volume publication printers and direct mailers. It offers a range of features to enhance productivity and reduce mailing costs through automation.

Key Features:

Versatility: Options include autoloader, first page opening system, easy open perforation, labeling or inkjet prearrangement, paper wrap, tightwrap, shrink tunnel, zip code reading, and selective feeding for personalized inserts.
Productivity: Rated at 15,000 packages per hour, with independent feeder bases for optimal loading positions and modular design for easy expansion.
Precision: Servo belt step control ensures precise wraps, and a heavy-duty cross sealer bar accommodates all film types.
Usability: Features a touch screen panel for setting key functions, production reporting, and remote access capabilities.

Specifications:

Film: Supports PE, PVC, OPP films with thickness ranging from 18 to 50 microns and reel widths from 200 to 750 mm.
Packing Dimensions: Length: 150-420 mm, Width: 100-305 mm, Height: 1-35 mm.
Speed: Up to 15,000 cycles per hour for version 0 and 13,500 for version I.

Innovative Systems:

Tightwrap Application: A unique system that stretches the film before sealing to reduce film cost and optimize product quality.
Side Seal: New side sealing unit eliminates the need for a thermal center seal, reducing the need for shrink wrapping.

Additional Equipment:

Shuttle Feeder: Allows feeding of two products simultaneously or dephased up to 180°.
Pivoting Hopper Feeder: Quick release system for easy rotation.
Newspaper Feeder: Designed for oversized products like tabloid newspapers.
Quarter-Folder: Integrates to process tabloid and broadsheet paper editions.

Catalog excerpts

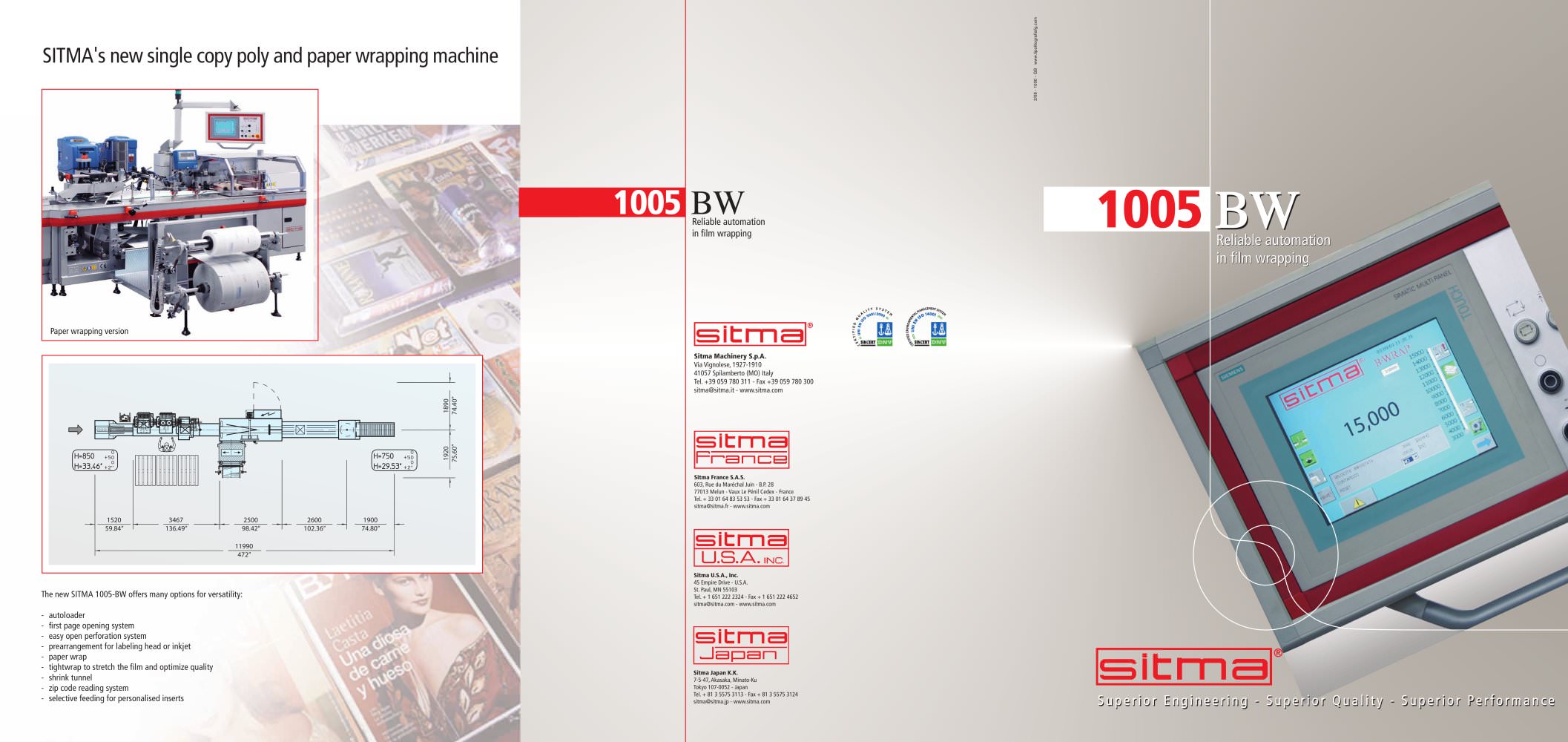

Reliable automation in film wrapping 1005 BW 1005 BW Reliable automation in film wrapping SITMA's new single copy poly and paper wrapping machine The new SITMA 1005-BW offers many options for versatility: - autoloader - first page opening system - easy open perforation system - prearrangement for labeling head or inkjet - paper wrap - tightwrap to stretch the film and optimize quality - shrink tunnel - zip code reading system - selective feeding for personalised inserts 2/08 - 1000 - GB www.tipolitografiafg.com 3467 136.49” 1520 59.84” 2500 98.42” 2600 102.36” 1900 74.80” 11990 472” 1920 75.60” 1890 74.40” Sitma Machinery S.p.A. Via Vignolese, 1927-1910 41057 Spilamberto (MO) Italy Tel. +39 059 780 311 - Fax +39 059 780 300 [email protected] - www.sitma.com Sitma France S.A.S. 603, Rue du Maréchal Juin - B.P. 28 77013 Melun - Vaux Le Pénil Cedex - France Tel. + 33 01 64 83 53 53 - Fax + 33 01 64 37 89 45 [email protected] - www.sitma.com Sitma U.S.A., Inc. 45 Empire Drive - U.S.A. St. Paul, MN 55103 Tel. + 1 651 222 2324 - Fax + 1 651 222 4652 [email protected] - www.sitma.com Sitma Japan K.K. 7-5-47, Akasaka, Minato-Ku Tokyo 107-0052 - Japan Tel. + 81 3 5575 3113 - Fax + 81 3 5575 3124 [email protected] - www.sitma.com S u p e r i o r E n g i n e e r i n g - S u p e r i o r Q u a l i t y - S u p e r i o r Pe r f o r m a n c e Paper wrapping version

Open the catalog to page 1

You can profit from Sitma’s advanced solutions now and in the future 1005-BW Reduce mailing costs through automation SITMA's new 1005-BW is rated at 15,000 p.p.h. and is the ideal choice for medium volume publication printers or direct mailers. • All feeders are on independent bases to meet the ideal loading position and increase productivity. The system can be configured as required by moving the feeders on the desired side of the base modules. • The systems modular design allows for easy expansion / upgrade. • A wide range of rigid and flexible products can be deposited perfectly in phase to...
