1002 NEW!

Product catalog summary

Overview: The document introduces the SITMA 1002, a new packaging concept featuring a modular design that allows for various configurations and technical solutions. It highlights the flexibility in product presentation due to multiple sealing options.

Key Features:

Utilizes advanced Sitma Siemens Simotion technology for electronic wrapping.
Motorized film roll unwind with an air shaft for quick roll changeover and low film level control.
Heavy-duty cross sealer with package cut-off length control for precise sealing.
Shuttle feeder with options for side seal, static seal, and heat-sealed longitudinal overlap. A header banner system is available upon request.
Touch screen operator panel for quick changeovers, production statistics display, and storage of up to 15 jobs.
Side sealer combined with a bottom product vacuum belt and motorized film salvage rewinding unit with tension control.
Machine stop feature in case of film breakage.
Rotary feeder with shrink tunnel function control from the touch screen panel.

Packaging Capabilities:

Length: 150 - 500 mm (6" - 20")
Width: 100 - 430 mm (4" - 17")
Height: 1 - 200 mm (up to 8")
Special sizes available upon request.

Plastic Film Specifications:

Types: PE, PPO, and all commercial films.
Thickness: 15 - 50 my (.75 - 2 mil)
Max roll width: 1000 mm (39-1/2 ")
Max roll diameter: 400 mm (16")

Wrapping Speed: Up to 9,000 packages per hour.

Note: Specifications are subject to change.

Catalog excerpts

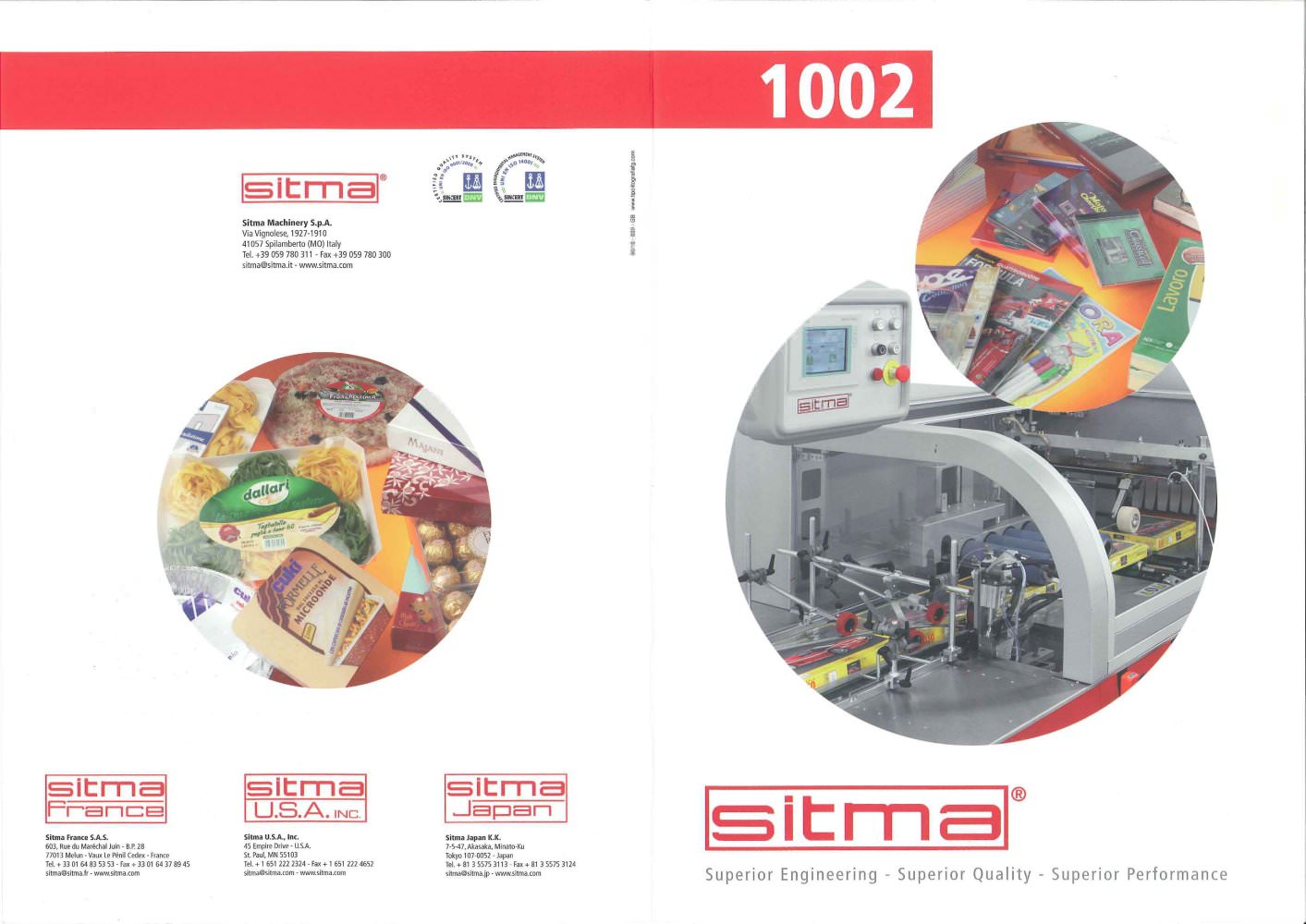

sitrn8 FrancE! Sitma France S.A.S. 603, Rue du Marechal luin - B.P. 28 77013 Melun . Vaux le Penil (edex - France ~.+3301~roS353 - ~ + 330 1 M37~4S [email protected] Isitl I Sitma Machinery S.p.A. ViaVignolese, 1927-1910 41057 Spilamberto (MO) 11aly Tel. +39 059 780 311 - Fax +39 059 780 300 [email protected] sit ••• 8 U.S.A. INC Sitma U.S.A., Inc. 45 Empire Drive - U.S.A. St Paul, MN 55103 Tel. + 16512222324 - Fax + 16512224652 [email protected] -www.sitma.com sit ••• 8 -1apan Sitma Japan K.K. 7-5-47, Akasaka, Minato-Ku Tokyo 107-0052· Japan lel.+8135575 3113-Fax+ 81355753124 [email protected] -www.sitma.(om o• ~itrn~]' Isitl I Superior Engineering - Superior Quality - Superior Performance

Open the catalog to page 1

.~-~~------------------------.-----.----- SITMA 1002 - A NEW PACKAGING CONCEPT The system modular design allows for a wide range of configurations according to the desired technical solutions. Sitma customers may select a number of different product presentation thanks to the variety of sealing options. New electronic wrapper utilizing state-of-the-art Sitma Siemens Simotion technology. Motorized film roll unwind with air shaft for quick changeover of the roll. Low film level control is also included. Heavy duty cross sealer for all types of film with package cut-off length control for the highest...
