BH Series - Bevel helical gearboxes

Product catalog summary

General Features
The BH-MBH series bevel helical gearboxes by SITI S.p.A. are constructed with G25 cast iron and feature three stages of reduction. Available in eight sizes (63 to 200), they offer rated transmissible torques from 280 Nm to 14000 Nm. These gearboxes comply with DIN 3990, UNI 8862, AGMA 2001 B88 norms, and ISO 6336 draft proposals, ensuring high resistance to loads.

Design Features
The gearboxes include a helical gear pair, a bevel gear pair with spiral Gleason toothing, and a cylindrical final gear pair. Sizes 63 to 125 use radial ball bearings, with taper roller bearings available on request, while sizes 140 to 200 come standard with taper roller bearings. All gears are made from case hardening steel.

Mounting Position
The standard mounting position is B3, but specific lubrication may be required for other positions to ensure optimal performance and lifespan.

Performance and Accessories
Performance data for sizes BH 63 to BH 200 is detailed, including reduction ratios and thermal power. Accessories such as backstop devices, torque arms, output flanges, and taper lock devices are available.

Specifications
Proper lubrication is crucial for longevity. Gearboxes are supplied for standard B3 installation unless specified otherwise. Two tables recommend mineral and synthetic lubricants, with nitrile rubber seals standard for temperatures up to +85°C and Viton seals for higher temperatures.

Oil Replacement
Oil replacement intervals depend on temperature and usage conditions, with synthetic oils offering long-life lubrication if contamination is avoided.

Load Specifications
Allowable external radial and axial load specifications are provided, with axial loads calculated as 0.2 times the radial load.

Additional Information
Ambient temperature ranges are -5°C to +35°C and -30°C to +50°C. Tables for oil quantities, sense of rotation, and gearbox weights are included.

Specifications and Requirements
Back-stop devices are required for specific models to prevent reverse operation. Output flanges and shafts are available upon request.

Spare Parts
Contact SITI S.p.a. for spare parts documentation or an interactive CD-ROM.

Terms and Conditions of Sale

Guarantee: One-year guarantee covering repair or replacement of defective parts.
Shipment: Goods are accepted by the customer once they leave the warehouse, with shipment at the buyer's risk.
Prices: Subject to change due to market conditions, quoted ex-works.
Complaints: Must be made in writing within legal terms.
Interests: Charged on late payments based on average bank rates.
Conditional Sales: Ownership remains with the seller until full payment.
Jurisdiction: Governed by Italian law, with the court of Bologna having jurisdiction.
Returns: Accepted only with prior written authorization.
Price List: Current price list supersedes all previous ones.

Company Information
SITI S.p.A. is committed to quality and innovation, offering efficient gearboxes. Customer service is available for inquiries.

Contact Information
Headquarters: Via G. Di Vittorio, 4, 40050 Monteveglio - BO, Italy. Tel: +39/051/6714811, Fax: +39/051/6714858, Email: [email protected], Website: www.sitiriduttori.it

Catalog excerpts

SPA SOCIET ITALIANA TRASMISSIONI INDUSTRIALI . >

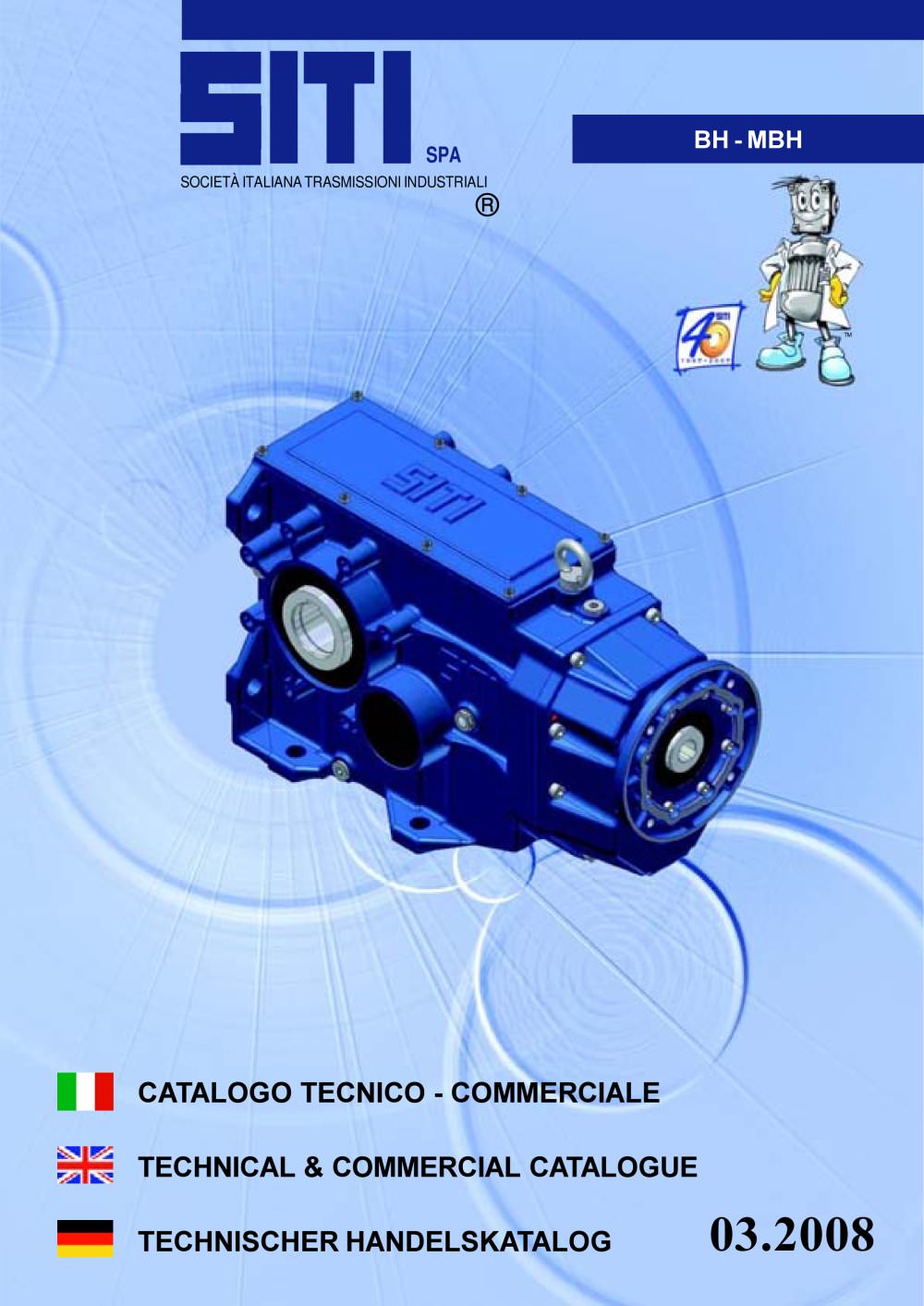

Open the catalog to page 1

SITI S.p.A. La ringrazia per la fiducia accordatae Le ricorda che il Suo riduttore il risultato di un lavoro di miglioramento del prodotto che i nostri tecnici perseguono continuamente, gra- zie ad una ricerca costante nel settore.La rete di Assistenza a Sua disposizione peraiutarLa a risolvere dubbi che potessero sorge- re nella lettura di questa pubblicazione.E訒 vietata la riproduzione, la memorizzazione olalterazione, anche parziale, di questa pubbli- cazione, senza una autorizzazione scritta da parte della SITI S.p.A. We, at SITI S.p.A., would like to thank you for the confidence shown in...

Open the catalog to page 3

PREMESSAIl presente catalogo relativo ai INTRODUCTIONThis catalogue refers to the bevel helicalgearboxes type BH-MBH, manufactured by SITI SpA. This range is made in cast iron G25 showing a modern design casing and three stages of reduction.DESIGN FEATURES-Gearboxes equipped with trains of gearsat three stages of reduction.-The three stages of reduction consist of:on the input side, one helical gear pair, with involute profile, accurately cor- rected for improved strength; in the mid- dle, one bevel gear pair with spiral GLEASON TOOTHING (duplex type); one cylindrical final gear pair, with involute...

Open the catalog to page 5

DESIGNAZIONE UNIT DESIGNATION TYPENBEZEICHNUNG > Tipo Grandezza Tipo albero lento Pos. di mont. Altre indicaz. Type Size Output shaft type Mount. pos. Other indicat. Typ Gre Abtriebswelle Typ i Einbaulage Weitere Angaben Giunto + campana Bell-housing and coupling Kupplung und Glocke 4 Poli 4 Poles 4 Polzahlen kW Volt Hz Montaggio standard Montaggio a richiesta Standard mounting On request mounting Standard Einbaulage Einbaulage aufAnfrage CAlbero lento cavo BHRiduttore serie BH entrata maschio CHollow output shaft BH染BH series gearbox solid input shaft CHohlabtriebswelle CCHollow output shaft...

Open the catalog to page 6

MOUNTING POSITIONWe recommend paying the utmost attentionto the gearbox installation and operating position. For many positions, in fact, a specific lubri- cation of the gearbox and its bearings is re- quired, without which the normal service life of the gearbox will not be guaranteed. With- out any specific indications the gearbox will be supplied for the standard B3 installation. POSIZIONI DI MONTAGGIOSi consiglia di prestare la massima attenzionealla posizione di montaggio in cui si trover a lavorare il riduttore. Per molte posizioni, infatti, prevista un਒apposita lubrificazione del riduttore...

Open the catalog to page 7

Quantit di olio (lt) Oil quantity (lt) Oelmenge (lt) PESO DEI RIDUTTORI GEARBOXES WEIGHT GEWICHT DER UNTERSETZUNGSGETRIEBE RIDUTTORE GEARBOX PESO Kg UNTERSETZUNGS-GETRIEBE WEIGHT Kg GEWICHT Kg MBH 63 30 MBH 80 40 MBH 100 72 MBH 125 97 MBH 140 205 MBH 160 260 MBH 180 - MBH 200 - > SENSO DI ROTAZIONE SENSE OF ROTATION DREHRICHTUNG UPON REQUEST STANDARDA RICHIESTA AUF ANFRAGE size="-1">

Open the catalog to page 9

CARICO RADIALE ED ASSIALE ESTERNOAMMISSIBILEI carichi radiali ammissibili sono indicati nelletabelle sottostanti e si intendono applicati alla mezzeria della sporgenza dellalbero, nel caso di applicazione con fattore di servizio sf = 1.I carichi assiali ammissibili si possono calcola-re come segue:A ALLOWABLE EXTERNAL RADIAL ANDAXIAL LOADThe allowable radial loads are indicated inthe chart below and they are meant to be ap- plied to the center line of the shaft projec- tion, in case the application is relative to a service factor sf = 1.The allowable axial loads can be calculatedas follows:A...

Open the catalog to page 10

Le forze sono espresse in Newton. > Force expressed in Newton. > CARICO SU ALBERO DI ENTRATA (1400 giri/min) CARICO SU ALBERO DI USCITA In Newton ausgedrckte Kraftwerte. LOAD ON INPUT SHAFT (1400 rpm) LOAD ON OUTPUT SHAFT BELASTUNG AUF DER EINGANGSWELLE (1400 Upm) BELASTUNG AUF DER AUSGANGSWELLE * Optional * Optional Force expressed in Newton. Le forze sono espresse in Newton. > Zulssige Radialbelastung in Newton. > CARICO SU ALBERO DI ENTRATA (1400 giri/min) CARICO SU ALBERO DI USCITA LOAD ON INPUT SHAFT (1400 rpm) LOAD ON OUTPUT SHAFT BELASTUNG AUF DER EINGANGSWELLE (1400 Upm) BELASTUNG AUF...

Open the catalog to page 11

Le forze sono espresse in Newton. > Force expressed in Newton. > CARICO SU ALBERO DI ENTRATA (1400 giri/min) CARICO SU ALBERO DI USCITA In Newton ausgedrckte Kraftwerte. LOAD ON INPUT SHAFT (1400 rpm) LOAD ON OUTPUT SHAFT BELASTUNG AUF DER EINGANGSWELLE (1400 Upm) BELASTUNG AUF DER AUSGANGSWELLE > * Optional * Optional Le forze sono espresse in Newton. Force expressed in Newton. > CARICO SU ALBERO DI ENTRATA (1400 giri/min) CARICO SU ALBERO DI USCITA LOAD ON INPUT SHAFT (1400 rpm) LOAD ON OUTPUT SHAFT In Newton ausgedrckte Kraftwerte. BELASTUNG AUF DER EINGANGSWELLE (1400 Upm) BELASTUNG AUF DER...

Open the catalog to page 12

Le forze sono espresse in Newton. > Force expressed in Newton. > CARICO SU ALBERO DI ENTRATA (1400 giri/min) CARICO SU ALBERO DI USCITA In Newton ausgedrckte Kraftwerte. LOAD ON INPUT SHAFT (1400 rpm) LOAD ON OUTPUT SHAFT BELASTUNG AUF DER EINGANGSWELLE (1400 Upm) BELASTUNG AUF DER AUSGANGSWELLE Force expressed in Newton. Le forze sono espresse in Newton. > In Newton ausgedrckte Kraftwerte. > CARICO SU ALBERO DI ENTRATA (1400 giri/min) CARICO SU ALBERO DI USCITA LOAD ON INPUT SHAFT (1400 rpm) LOAD ON OUTPUT SHAFT BELASTUNG AUF DER EINGANGSWELLE (1400 Upm) BELASTUNG AUF DER AUSGANGSWELLE >

Open the catalog to page 13

Le forze sono espresse in Newton. > Force expressed in Newton. > CARICO SU ALBERO DI ENTRATA (1400 giri/min) CARICO SU ALBERO DI USCITA In Newton ausgedrckte Kraftwerte. LOAD ON INPUT SHAFT (1400 rpm) LOAD ON OUTPUT SHAFT BELASTUNG AUF DER EINGANGSWELLE (1400 Upm) BELASTUNG AUF DER AUSGANGSWELLE Force expressed in Newton. Le forze sono espresse in Newton. > CARICO SU ALBERO DI ENTRATA (1400 giri/min) CARICO SU ALBERO DI USCITA In Newton ausgedrckte Kraftwerte. LOAD ON INPUT SHAFT (1400 rpm) LOAD ON OUTPUT SHAFT BELASTUNG AUF DER EINGANGSWELLE (1400 Upm) BELASTUNG AUF DER AUSGANGSWELLE >
