SIREM ContRol panEl bo
SIREM ContRol panEl bo
- Power Supply: 230/24 Vdc with a 24 Vdc transformer.
- Protection: Electronic motor protection, fuse protection, and IP55 rating for the box.
- Working Conditions: Temperature range of +10°C to +40°C and relative humidity up to 80%.
- Position limit switch programming for convenience.
- Display showing motion settings, motor consumption (amps), and speed.
- Security features include non-volatile memory for data saving.
- Compact and robust design with easy cabling harness and screw fixation.
- Relay outputs with separate relays and scalable with two optional inputs.
- Compliance with NFP 90-308, EN 60335-1, and EMC directives.
- Easy maintenance with statement LED and manual control option.
- Optional daughter board for output speed limitation.
- Wide display screen for key data such as consumption, speed, and warning notifications.

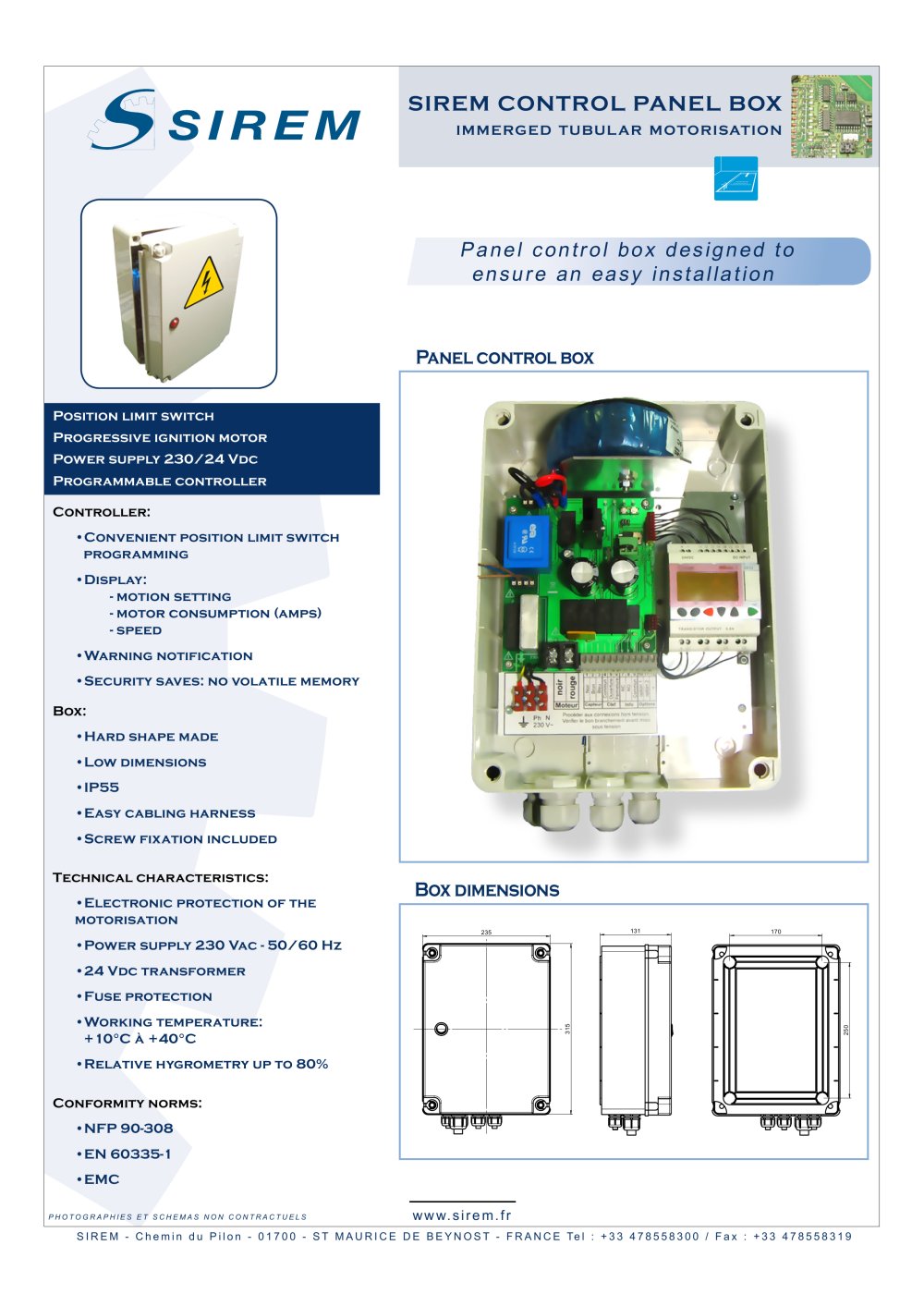

Catalog excerpts
table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:11.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial Black", sans-serif; } .font3 { font:12.00pt "Arial Black", sans-serif; } .font4 { font:7.00pt "Microsoft Sans Serif", sans-serif; } .font5 { font:8.00pt "Microsoft Sans Serif", sans-serif; } .font6 { font:26.00pt "Microsoft Sans Serif", sans-serif; } SIREM Panel control box designed to ensure an easy installation Panel control box Position limit switch Progressive ignition motor Power supply 230/24 Vdc Programmable controller Controller: Convenient position limit switch programming Օ Display: - motion setting - motor consumption (amps) -speed Warning notification Օ Security saves: no volatile memory Box: Hard shape made Օ Low dimensions IP55 Օ Easy cabling harness Screw fixation included Technical characteristics: ՕElectronic protection of the motorisation Power supply 230 Vac - 50/60 Hz Օ24 Vdc transformer Fuse protection Օ Working temprature: + 100C +400C 頕Relative hygrometry up to 80% Conformity norms: NFP 90-308 ՕEN 60335-1 emc PHOTOGRAPHIES ET SCHEMAS NON CONTRACTUELS Box dimensions www.sirem.fr SIREM - Chemin du Pilon - 01 700 - ST MAURICE DE BEYNOST - FRANCE T 3 478558301 4785583
Open the catalog to page 1
table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:15.00pt "Lucida Sans Unicode", sans-serif; } .font1 { font:10.00pt "Tahoma", sans-serif; } .font2 { font:14.00pt "Tahoma", sans-serif; } .font3 { font:16.00pt "Tahoma", sans-serif; } .font4 { font:18.00pt "Tahoma", sans-serif; } $ SI REM characteristics of the panel control box Electric al supply: Satety: circuit of conlrol on separale supply Easy maintenance: Statement LED Օ Manual control Option: Daughter board of output speed limitation controller display screen: Wkte screen displaying key datas: consumption speed,...
