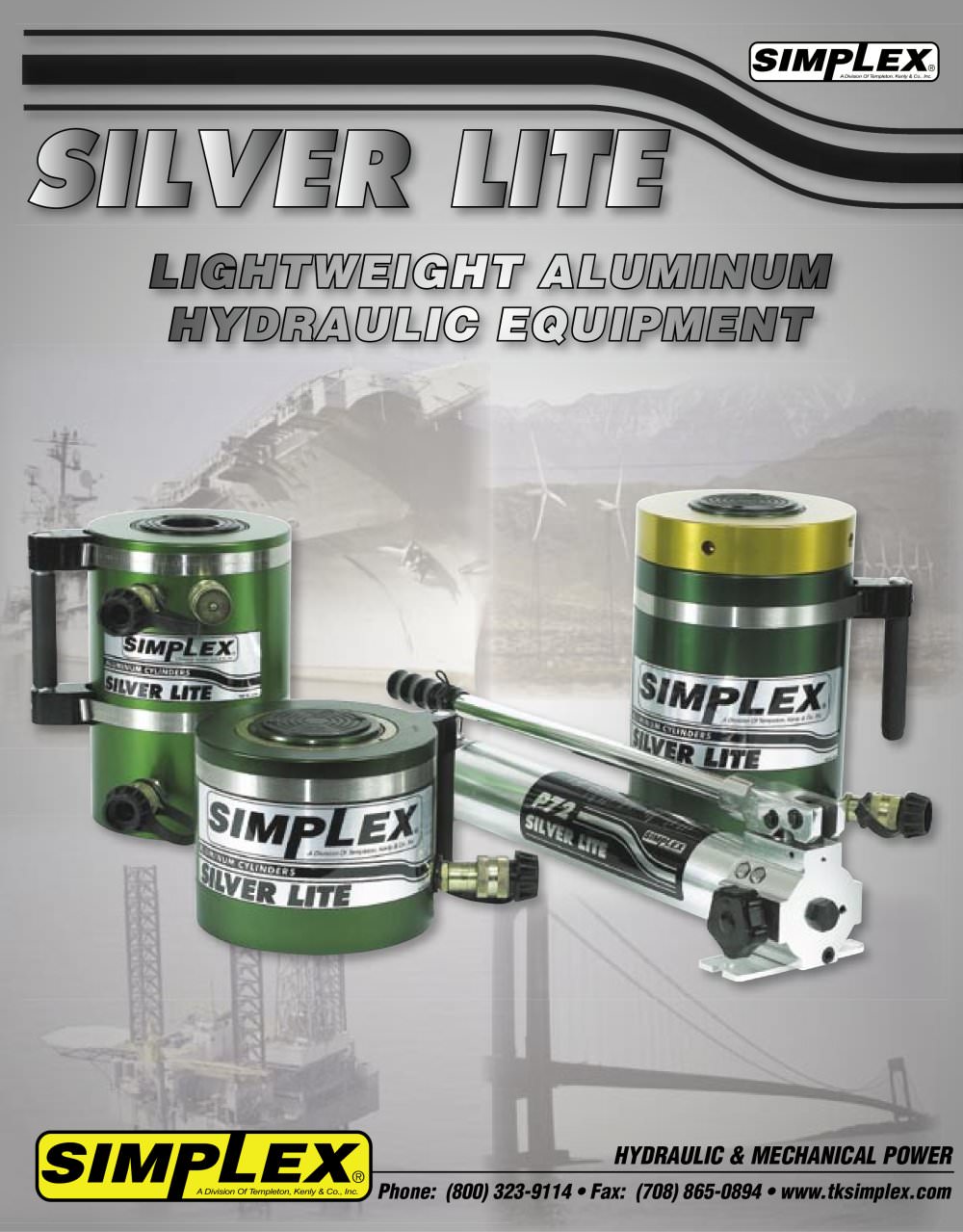

Silver Lite Aluminum Line

Product catalog summary

Overview: This document provides detailed specifications and features of the Silver Lite Line of lightweight aluminum hydraulic equipment, including cylinders and hand pumps, offered by Templeton, Kenly & Co., Inc. The equipment is designed for various industrial applications, emphasizing lightweight construction and compliance with safety standards.

Specifications:

RAS-Series: Spring return aluminum cylinders with capacities ranging from 30 to 150 tons. Features include heavy-duty springs, large bearing surfaces, and hard anodized coatings for durability.
RAL-Series: Spring return locknut aluminum cylinders, also ranging from 50 to 150 tons, with locknuts for extended load holding and similar protective features as the RAS-Series.
RAC & RACD-Series: Center hole aluminum cylinders available in single-acting (30 & 60 tons) and double-acting (30 to 150 tons) models, featuring chrome-plated center sleeves and steel bases for enhanced protection.
P-Series: Aluminum hand pumps with 30 and 70 cu. in. capacity, designed for single-acting cylinders and tools, offering high capacity at low weight and faster operation per stroke.

Procedures and Recommendations:

All models comply with ANSI/ASME B30.1 safety standards, ensuring safe operation.
Carrying handles are standard on all models for ease of transport.
Power pumps are recommended for certain high-capacity units to ensure optimal performance.

Performance and Features:

Up to 60% lighter than steel cylinders, providing ease of handling and installation.
High flow quality couplers and rod wipers protect internal components from dirt and wear.
Hand pumps are designed for low handle effort, reducing operator strain.

Applications: The equipment is suitable for use in various positions (upright, inverted, horizontal) and environments, including those with heat and welding sparks.

Contact Information: The document lists contact details for Simplex offices and warehouses across the United States, Canada, Europe, Asia, Mexico, Chile, the Middle East, and South Africa.
