P60 Ultra High Pressure Hand Pump
1 / 2 PagesView full catalog

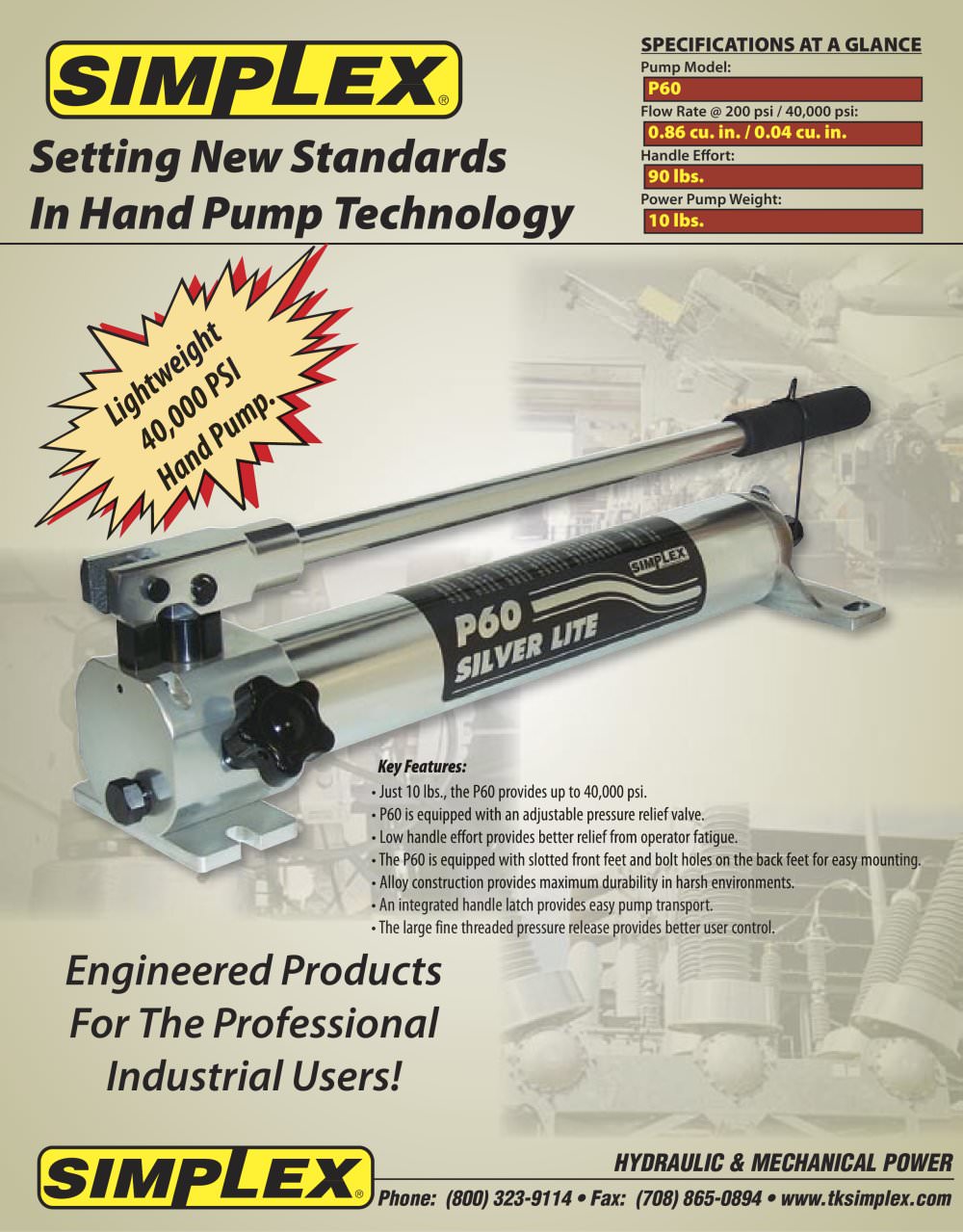

P60 Ultra High Pressure Hand Pump
Product catalog summary
Specifications Overview:
The P60 hand pump is a lightweight, high-pressure pump designed for industrial use, weighing only 10 lbs and capable of delivering up to 40,000 psi. It features a flow rate of 0.86 cu. in. at 200 psi and 0.04 cu. in. at 40,000 psi, with a handle effort of 90 lbs.
The P60 hand pump is a lightweight, high-pressure pump designed for industrial use, weighing only 10 lbs and capable of delivering up to 40,000 psi. It features a flow rate of 0.86 cu. in. at 200 psi and 0.04 cu. in. at 40,000 psi, with a handle effort of 90 lbs.
Key Features:
- Adjustable pressure relief valve for safety and control.
- Low handle effort reduces operator fatigue.
- Durable alloy construction suitable for harsh environments.
- Integrated handle latch for easy transport.
- Large, fine-threaded pressure release knob for enhanced user control.
- Slotted front feet and bolt holes on the back feet for easy mounting.
Design and Construction:
The pump includes a 60 cu. in. reservoir for more usable oil capacity. It is equipped with a 3/4-16 UNF port and stainless steel tubing, featuring a high-pressure fitting seal on a cone surface that does not require pipe sealer. The gland nut secures the sleeve and tube to maintain a 40,000 psi seal.
The pump includes a 60 cu. in. reservoir for more usable oil capacity. It is equipped with a 3/4-16 UNF port and stainless steel tubing, featuring a high-pressure fitting seal on a cone surface that does not require pipe sealer. The gland nut secures the sleeve and tube to maintain a 40,000 psi seal.
