Silicon Designs Model SDI 3320 Cable Adaptor Accessory

Product catalog summary
Overview: The Silicon Designs, Inc. Model 3901 Cable Adapter is designed to connect up to three Model 2010 Single Axis Digital Accelerometer Modules to a Model 3320. It features Switchcraft 'Weathertight' EN3 locking bayonet style connectors for the accelerometer ends and a D-Subminiature style connector for the Model 3320 end.
Specifications: The adapter operates within a temperature range of -40 to +65°C. The connection length can be extended by an additional 10 feet using the included D-subminiature 9-pin flat extension cable. It is important to note that the thermal limits of the cable adapter exceed those of the Model 3320 but are less than those of the Model 2010 accelerometer.
Additional Information: Specifications are subject to change without notice. For more details, visit Silicon Designs' website or contact them directly.
See more

Catalog excerpts

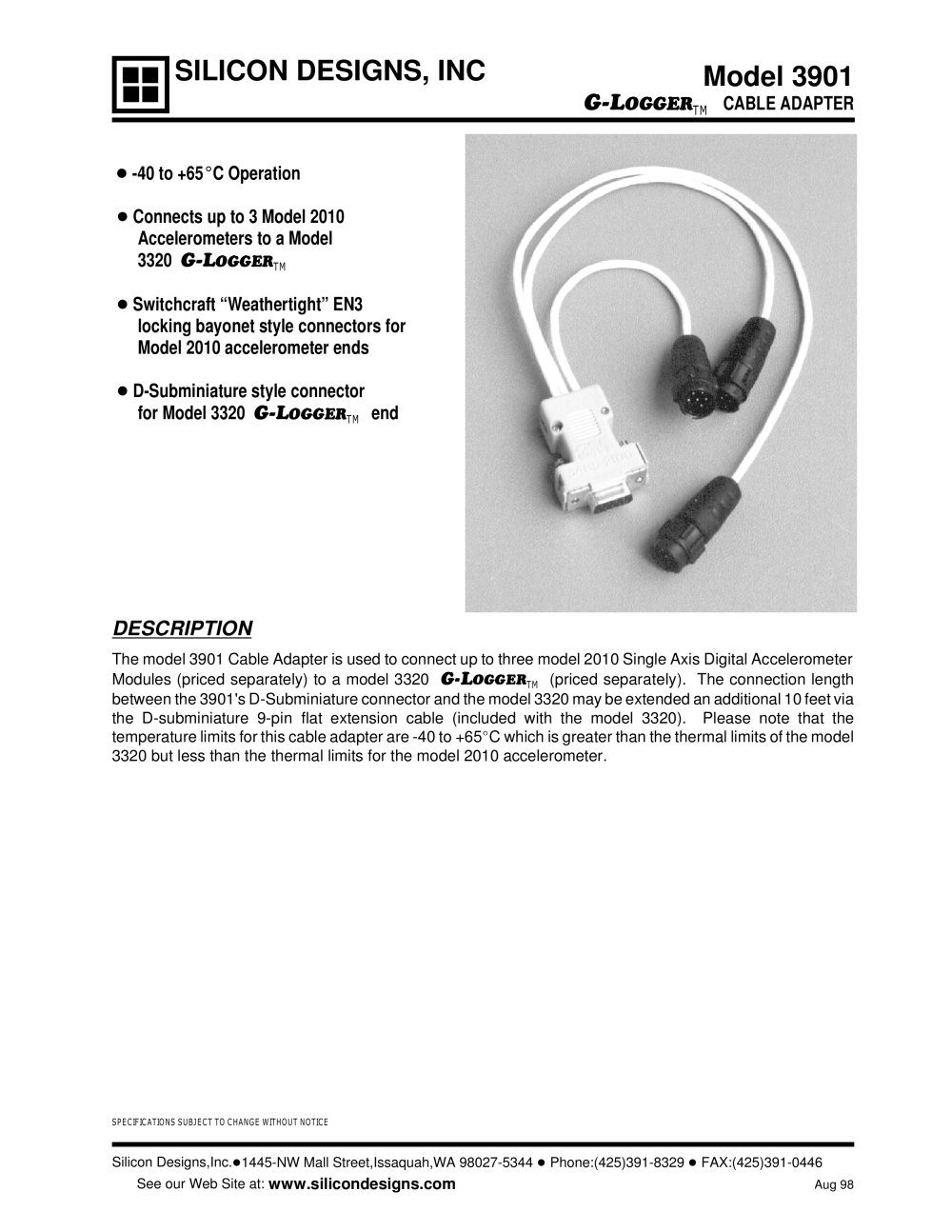

Silicon Designs Model SDI 3320 Cable Adaptor Accessory-1

TM CABLE ADAPTER -40 to +65 C Operation Connects up to 3 Model 2010 Accelerometers to a Model 3320 > TM Switchcraft WeathertightӔ EN3 locking bayonet style connectors for Model 2010 accelerometer ends D-Subminiature style connector for Model 3320 > TM end > The model 3901 Cable Adapter is used to connect up to three model 2010 Single Axis Digital AccelerometerModules (priced separately) to a model 3320 TM (priced separately). The connection lengthbetween the 3901's D-Subminiature connector and the model 3320 may be extended an additional 10 feet viathe D-subminiature 9-pin flat extension cable (included with the model 3320). Please note that the temperature limits for this cable adapter are -40 to +65 C which is greater than the thermal limits of the model3320 but less than the thermal limits for the model 2010 accelerometer. SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Silicon Designs,Inc. 1445-NW Mall Street,Issaquah,WA 98027-5344 Phone:(425)391-8329 FAX:(425)391-0446See our Web Site at: www.silicondesi g ns.com Aug 98 size="-3">

 Open the catalog to page 1
