Silicon Designs Model EB1210 L-Lead (Leadless) Evaluation Board
1Pages

Add to favorites

{{requestButtons}}

Catalog excerpts

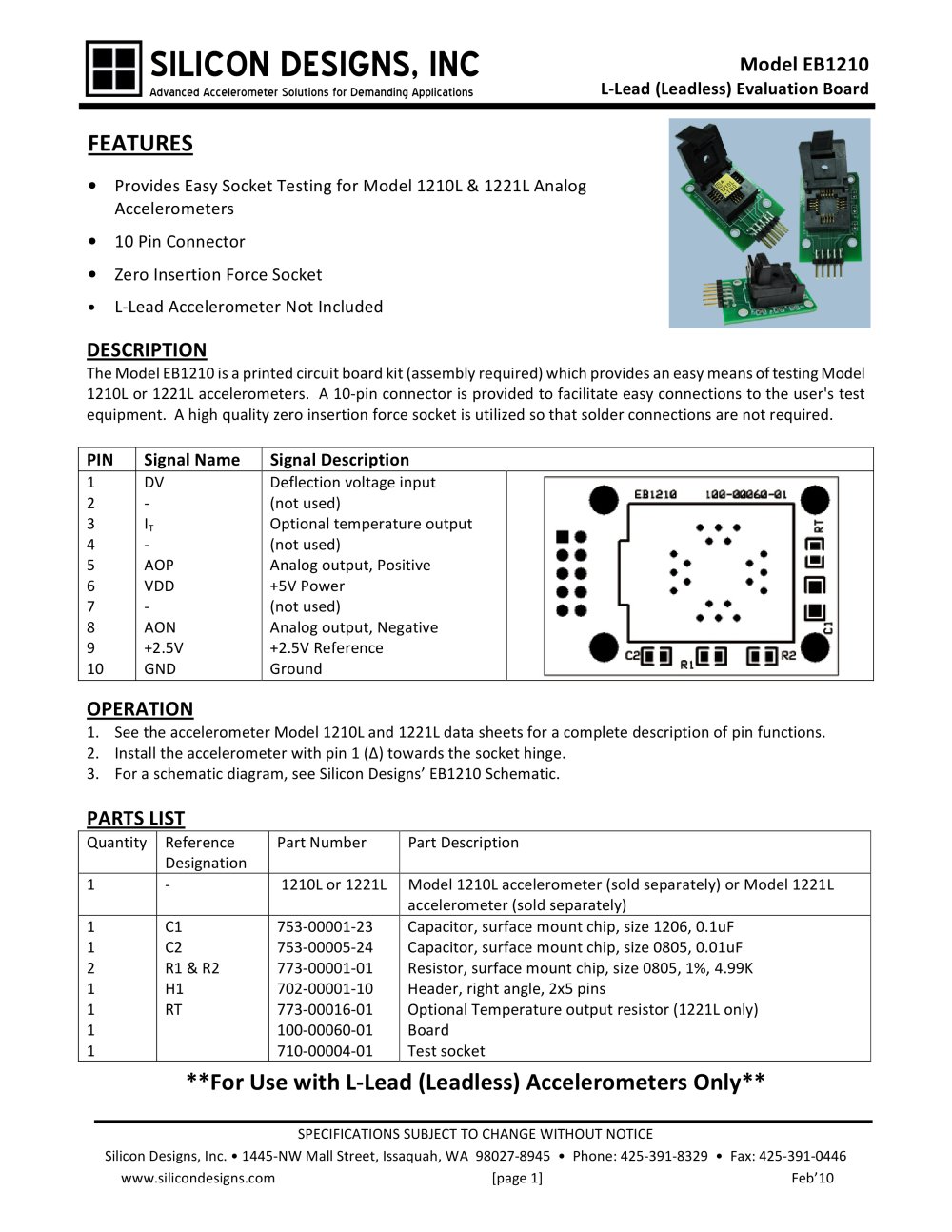

SILICONDESIGNS,INC AdvancedAccelerometerSolutionsforDemandingApplications Model EB1210 L-Lead (Leadless) Evaluation Board SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Silicon Designs, Inc. • 1445-NW Mall Street, Issaquah, WA 98027-8945 • Phone: 425-391-8329 • Fax: 425-391-0446 www.silicondesigns.com [page 1] Feb’10 FEATURES • Provides Easy Socket Testing for Model 1210L & 1221L Analog Accelerometers • 10 Pin Connector • Zero Insertion Force Socket • L-Lead Accelerometer Not Included DESCRIPTION The Model EB1210 is a printed circuit board kit (assembly required) which provides an easy means of testing Model 1210L or 1221L accelerometers. A 10-pin connector is provided to facilitate easy connections to the user's test equipment. A high quality zero insertion force socket is utilized so that solder connections are not required. PIN Signal Name Signal Description 1 2 3 4 5 6 7 8 9 10 DV - IT - AOP VDD - AON +2.5V GND Deflection voltage input (not used) Optional temperature output (not used) Analog output, Positive +5V Power (not used) Analog output, Negative +2.5V Reference Ground OPERATION 1. See the accelerometer Model 1210L and 1221L data sheets for a complete description of pin functions. 2. Install the accelerometer with pin 1 (Ä) towards the socket hinge. 3. For a schematic diagram, see Silicon Designs’ EB1210 Schematic. PARTS LIST Quantity Reference Designation Part Number Part Description 1 - 1210L or 1221L Model 1210L accelerometer (sold separately) or Model 1221L accelerometer (sold separately) 1 1 2 1 1 1 1 C1 C2 R1 & R2 H1 RT 753-00001-23 753-00005-24 773-00001-01 702-00001-10 773-00016-01 100-00060-01 710-00004-01 Capacitor, surface mount chip, size 1206, 0.1uF Capacitor, surface mount chip, size 0805, 0.01uF Resistor, surface mount chip, size 0805, 1%, 4.99K Header, right angle, 2x5 pins Optional Temperature output resistor (1221L only) Board Test socket **For Use with L-Lead (Leadless) Accelerometers Only**
