Overview: This document provides detailed specifications and descriptions of combination tools used for steel strapping. These tools are designed to function as tensioners, sealers, and often cutters, streamlining the strapping process by eliminating the need for separate tools.

Manual Seal-Feed Tools: These tools, including the AH, AL, and AM series, are manually operated and use a magazine to hold a stack of seals for quick loading. They are suitable for various strap sizes and types, such as Apex Plus and Magnus.

Manual Sealless Tools: The SCM and SCMH series do not require metal seals, reducing costs and eliminating production interruptions for reloading. They are compatible with Apex Plus and Magnus strap types.

Pneumatic Seal-Feed Tools: Utilizing air pressure, these tools, including the AHP and AMP series, efficiently tension, seal, and cut strapping. They are designed for use with Magnus and Apex Plus strap types.

Pneumatic Sealless Tools: The SLP and SPC series are pneumatic tools that do not require seals, offering a streamlined operation for various strap sizes.

Pneumatic Tool Accessories: Accessories such as quick-disconnect plugs, filter-regulator-lubricator assemblies, and recommended air hoses are available to optimize the operation of pneumatic tools. These accessories ensure efficient and reliable tool performance.

Pneumatic Push-Type Tools: The PNSC and PRH-Series models are designed for use with push-type seals on irregular-shaped packages. They utilize air power to tension, seal, and cut the strapping.

Key Specifications: The document includes detailed specifications for each tool model, including strap size, thickness, strap type, seal name, joint type, and weight. It also provides part numbers for easy reference.

Additional Notes: A conversion kit is available for certain models to accommodate different strapping sizes. The document also highlights the importance of using light hydraulic oil in lubricators and provides part numbers for various fittings and accessories.

Catalog excerpts

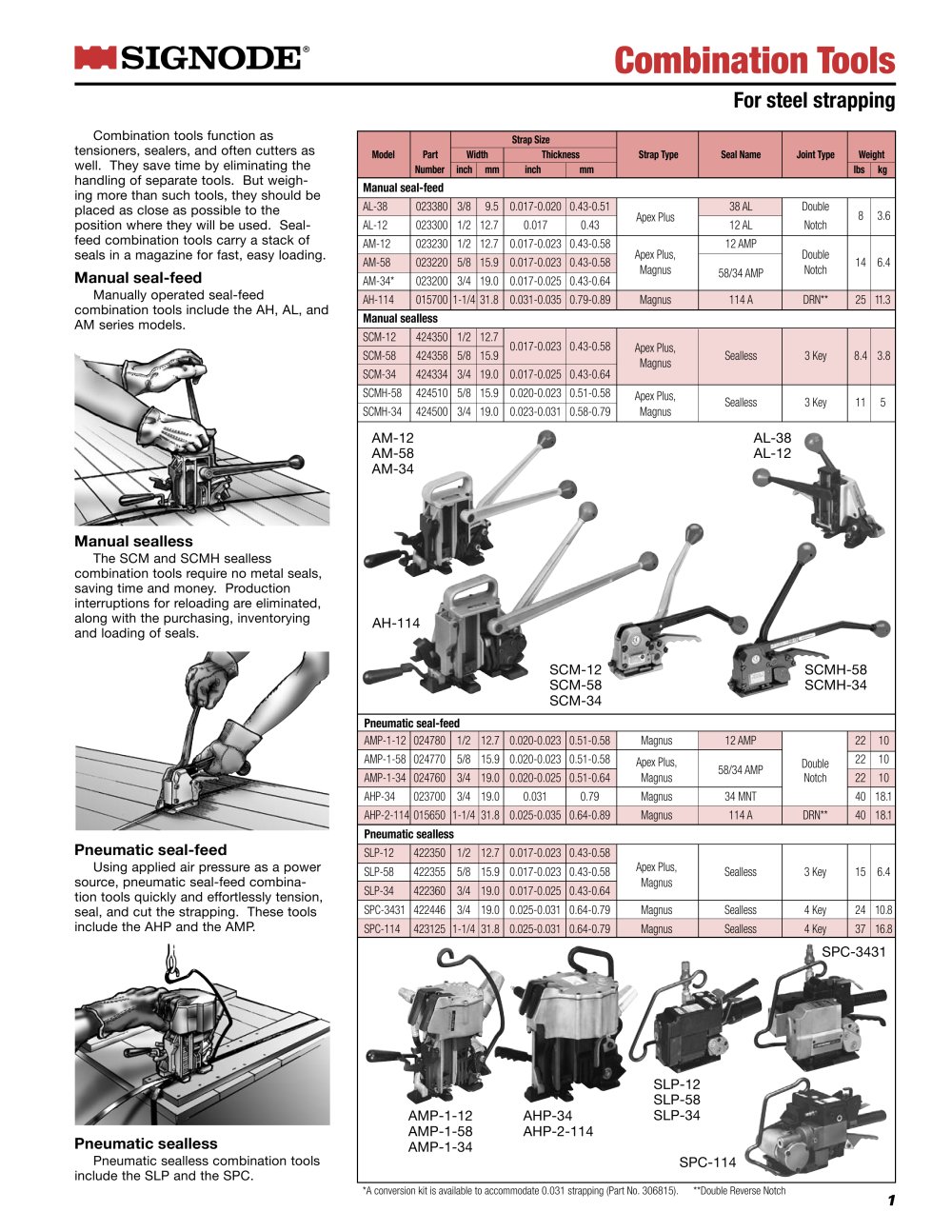

Combination Tools For steel strapping 1 Strap Size Model Part Width Thickness Strap Type Seal Name Joint Type Weight Number inch mm inch mm lbs kg Manual seal-feed AL-38 023380 3/8 9.5 0.017-0.020 0.43-0.51 Apex Plus 38 AL Double AL-12 023300 1/2 12.7 0.017 0.43 12 AL Notch 8 3.6 AM-12 023230 1/2 12.7 0.017-0.023 0.43-0.58 Apex Plus, 12 AMP AM-58 023220 5/8 15.9 0.017-0.023 0.43-0.58 Magnus 58/34 AMP Double 14 6.4 AM-34* 023200 3/4 19.0 0.017-0.025 0.43-0.64 Notch AH-114 015700 1-1/4 31.8 0.031-0.035 0.79-0.89 Magnus 114 A DRN** 25 11.3 Manual sealless SCM-12 424350 1/2 12.7 Apex Plus, SCM-58 424358 5/8 15.9 0.017-0.023 0.43-0.58 Magnus Sealless 3 Key 8.4 3.8 SCM-34 424334 3/4 19.0 0.017-0.025 0.43-0.64 SCMH-58 424510 5/8 15.9 0.020-0.023 0.51-0.58 Apex Plus, Sealless 3 Key 11 5 SCMH-34 424500 3/4 19.0 0.023-0.031 0.58-0.79 Magnus Pneumatic seal-feed AMP-1-12 024780 1/2 12.7 0.020-0.023 0.51-0.58 Magnus 12 AMP 22 10 AMP-1-58 024770 5/8 15.9 0.020-0.023 0.51-0.58 Apex Plus, Double 22 10 AMP-1-34 024760 3/4 19.0 0.020-0.025 0.51-0.64 Magnus 58/34 AMP Notch 22 10 AHP-34 023700 3/4 19.0 0.031 0.79 Magnus 34 MNT 40 18.1 AHP-2-114 015650 1-1/4 31.8 0.025-0.035 0.64-0.89 Magnus 114 A DRN** 40 18.1 Pneumatic sealless SLP-12 422350 1/2 12.7 0.017-0.023 0.43-0.58 Apex Plus, SLP-58 422355 5/8 15.9 0.017-0.023 0.43-0.58 Magnus Sealless 3 Key 15 6.4 SLP-34 422360 3/4 19.0 0.017-0.025 0.43-0.64 SPC-3431 422446 3/4 19.0 0.025-0.031 0.64-0.79 Magnus Sealless 4 Key 24 10.8 SPC-114 423125 1-1/4 31.8 0.025-0.031 0.64-0.79 Magnus Sealless 4 Key 37 16.8 Combination tools function as tensioners, sealers, and often cutters as well. They save time by eliminating the handling of separate tools. But weighing more than such tools, they should be placed as close as possible to the position where they will be used. Seal-feed combination tools carry a stack of seals in a magazine for fast, easy loading. Manual seal-feed Manually operated seal-feed combination tools include the AH, AL, and AM series models. Manual sealless The SCM and SCMH sealless combination tools require no metal seals, saving time and money. Production interruptions for reloading are eliminated, along with the purchasing, inventorying and loading of seals. Pneumatic seal-feed Using applied air pressure as a power source, pneumatic seal-feed combination tools quickly and effortlessly tension, seal, and cut the strapping. These tools include the AHP and the AMP. Pneumatic sealless Pneumatic sealless combination tools include the SLP and the SPC. AM-12 AL-38 AM-58 AL-12 AM-34 AH-114 SCM-12 SCMH-58 SCM-58 SCMH-34 SCM-34 SLP-12 SLP-58 SLP-34 AMP-1-12 AHP-34 AMP-1-58 AHP-2-114 AMP-1-34 SPC-114 SPC-3431 *A conversion kit is available to accommodate 0.031 strapping (Part No. 306815). **Double Reverse Notch
