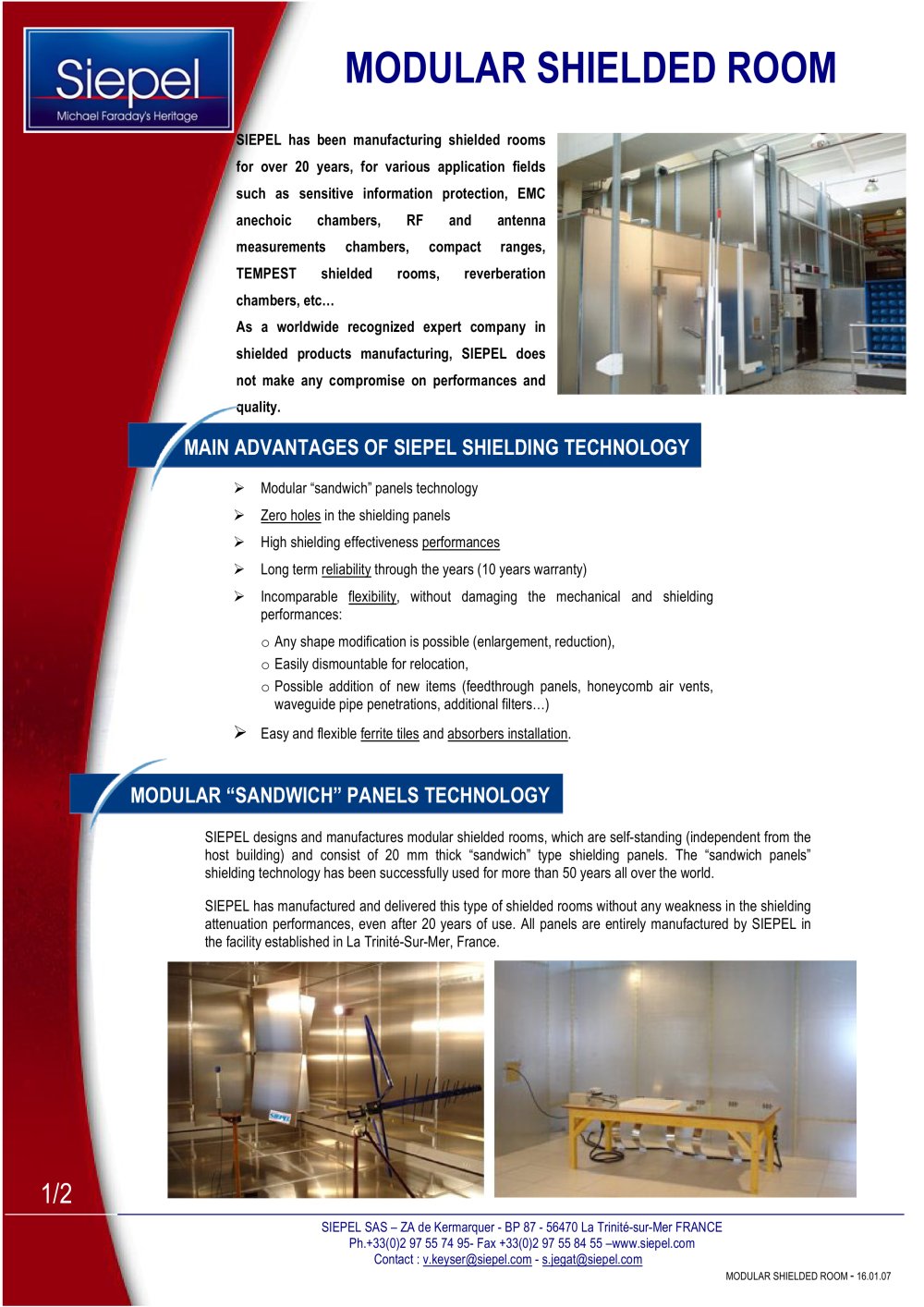

modular shielded room
2Pages

SIEPEL has been manufacturing shielded rooms for over 20 years, for various application fields such as sensitive information protection, EMC anechoic chambers, RF and antenna measurements chambers, compact ranges, TEMPEST shielded rooms, reverberation chambers, etc As a worldwide recognized expert company in shielded products manufacturing, SIEPEL does not make any compromise on performances and quality. > Modular œsandwich panels technology Zero holes in the shielding panels High shielding effectiveness performances Long term reliability through the years (10 years warranty) Incomparable flexibility , without damaging the mechanical and shielding performances: o Any shape modification is possible (enlargement, reduction), o Easily dismountable for relocation, o Possible addition of new items (feedthrough panels, honeycomb air vents, waveguide pipe penetrations, additional filtersԅ) Easy and flexible ferrite tiles and absorbers installation . > SIEPEL designs and manufactures modular shielded rooms, which are self-standing (independent from the host building) and consist of 20 mm thick sandwichӔ type shielding panels. The sandwich panelsӔ shielding technology has been successfully used for more than 50 years all over the world. SIEPEL has manufactured and delivered this type of shielded rooms without any weakness in the shielding attenuation performances, even after 20 years of use. All panels are entirely manufactured by SIEPEL in the facility established in La Trinit-Sur-Mer, France. > SIEPEL SAS ZA de Kermarquer -BP 87-56470 La Trinit閩-sur-Mer FRANCE Ph.+33(0)2 97 55 74 95- Fax +33(0)2 97 55 84 55 www.siepel.com Contact : v.keyser@siepel.com - s.jegat@siepel.com MODULAR SHIELDED ROOM - 16.01.07 size="-2">

The core material used between the steel sheets is made of a special, high quality, particle board, pressed under 200 bars, with a density of 700 kg/m > 3 . This core material is compliant with EN 312-1/2/3/4/5 standards. Two galvanized steel sheets 55/100 > th mm thick, compliant with DIN 1623 and EN 10142 standards, are glued on both sides of the core panel, using top quality latex based glue > The panels assembly is made without drilling any hole in the shielding and without gaskets , using electro-galvanized steel framing (OMEGA profiles). The panels and joining OMEGA profiles are kept...
