Overview: The document is a technical catalogue for SIEBEC's T vertical pumps, detailing various models and their specifications. These pumps are designed for applications such as surface treatment, chemical tank agitation, and more.

Specifications:

Materials: Pump bodies are made from polypropylene (PP) or PVDF, offering excellent resistance to acids and bases.
Temperature Limits: Maximum fluid temperatures are 80˚C for PP and 110˚C for PVDF.
Performance: Maximum flow rates reach up to 22 m³/h, with a maximum manometric head of 18.5 meters.
Design: Features include a closed centrifugal pump impeller, cantilever shaft, and optional back-impeller for certain models.

Technical Features by Model:

T050: 0.25 kW motor, 5 m³/h max output, 6 m max head.
T070: 0.55 kW motor, 7.2 m³/h max output, 9 m max head.
T100: 0.75 kW motor, 10 m³/h max output, 13 m max head.
T200: 1.1 kW motor, 18.5 m³/h max output, 15.5 m max head.
T242: 1.5 kW motor, 22.2 m³/h max output, 17 m max head.

Installation and Operation:

Immersed mounting is imperative for self-priming operation.
Motors are available in 230/400 V 3-phase, 50 Hz or 60 Hz, with a speed of 2,900 rpm.
Standard and optional outlet configurations include union nuts and grooved nozzles.

Graphs and Curves: The document includes performance curves for each pump model, illustrating the relationship between output (m³/h), manometric head (m), and efficiency (%).

Dimensions and Connections: Detailed dimensions and connection options are provided for each pump model, including optional fittings and flange dimensions.

Catalog excerpts

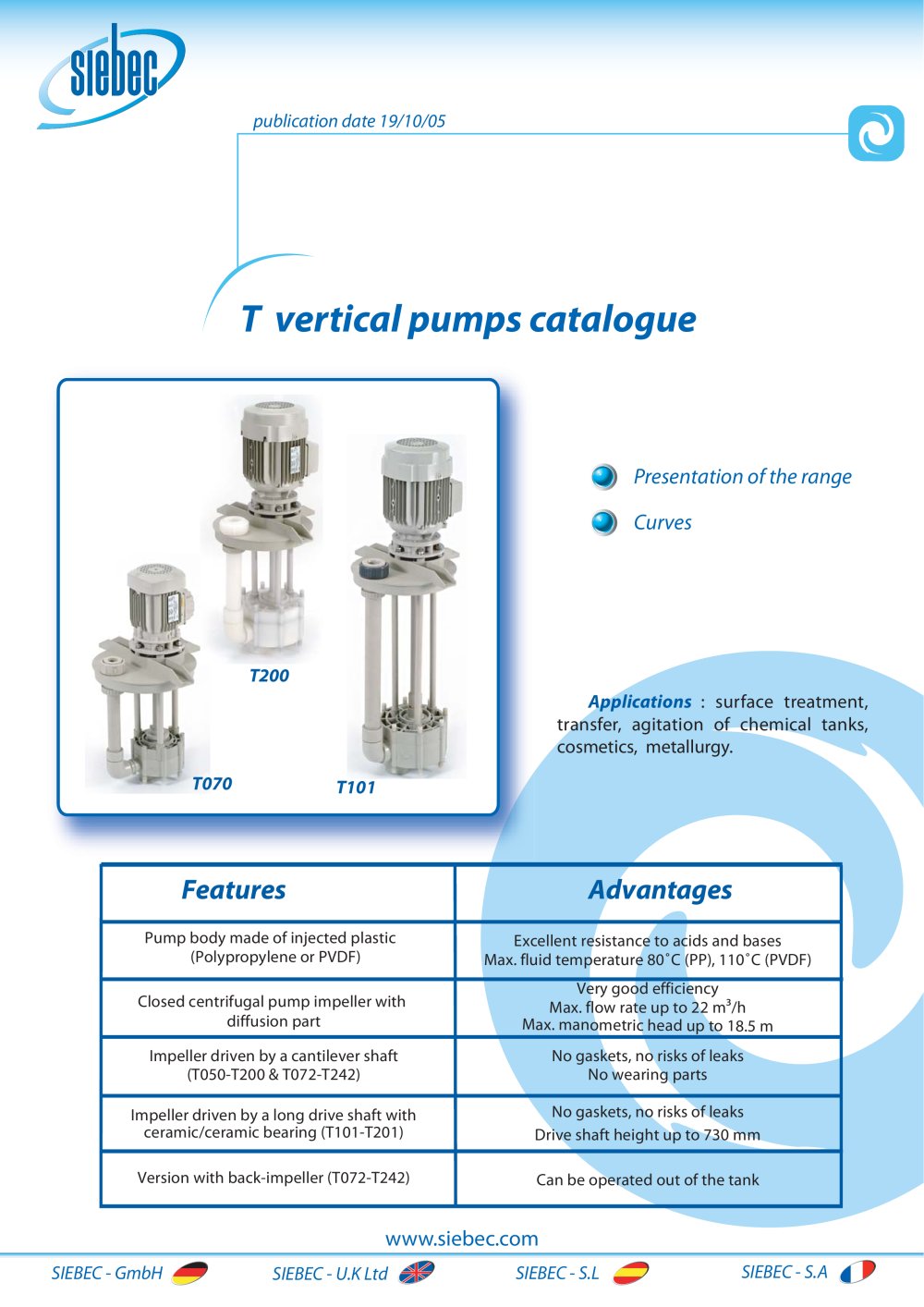

Applications : surface treatment, transfer, agitation of chemical tanks, cosmetics, metallurgy. T070T200T101 > Pump body made of injected plastic (Polypropylene or PVDF)Excellent resistance to acids and basesMax. fluid temperature 80˚C (PP), 110˚C (PVDF) Closed centrifugal pump impeller with diffusion partVery good efficiencyMax. flow rate up to 22 m/h Max. manometric head up to 18.5 m Impeller driven by a cantilever shaft(T050-T200 & T072-T242)No wearing parts No gaskets, no risks of leaksNo gaskets, no risks of leaks Impeller driven by a long drive shaft withceramic/ceramic bearing (T101-T201)Drive shaft height up to 730 mm Version with back-impeller (T072-T242)Can be operated out of the tank SIEBEC - GmbH SIEBEC - U.K Ltd SIEBEC - S.L SIEBEC - S.A >

Open the catalog to page 1

Immersed mounting imperative, self priming230/400 V 3 ph motor - 50Hz or 60 Hz upon request - 2,900 rpm Serial-mounted strainer, external or built into the volute case according to models Standard outlet tube with union nut Optional outlet tube with grooved nozzle Optional square fixation plate 302 mm wide - Motor power- Max. output - Max. head - Max. fluid temperature - Gaskets - S.G. > DIMENSIONS 0.25 kW 5 m/h 6 m PP body 80ӋC PVDF body110ڋC EPDM - FPM FPM < 1.3 T050 pumpT050 pump > CURVES - Motor power- Max. output - Max. head - Max. fluid temperature - Gaskets - S.G. > 0.55 kW 7.2 mڳ/h 9...

Open the catalog to page 2

DIMENSIONS - Motor power- Max. output - Max head - Max.fluid temprature - Gaskets - S.G. > 0.75 kW10 m/h 13 m PP body 80ӋC PVDF body 110ڋC EPDM - FPM FPM < 1.3 T100 pumpT100 pump > CURVES DIMENSIONS - Motor power- Max. output - Max. head - Max. fluid temperature - Gaskets - S.G. > 1.1 kW14.5 mڳ/h 14.3 m PP body 80˚ C PVDF body 110˚C EPDM - FPM FPM < 1.3 T140 pump T140 pump > CURVES - Motor power- Max. output - Max. head - Max. fluid temperature - Gaskets - S.G. > DIMENSIONS 1.1 kW18.5 m/h 15.5 m PP body 80Ӌ C PVDF body 110ڋC EPDM - FPM FPM < 1.3 T200 pump T200 pump > CURVES

Open the catalog to page 3

Immersed mounting imperative, self primingMoteur 230/400 V 3 ph - 50 Hz or 60 Hz upon request- 2,900 rpm Serial-mounted strainer built into the volute case Bottom bearing made of 99% alumina ceramic Standard outlet tube with union nut, optional outlet tube with grooved nozzle with extra charge Optional square fixation plate 302 mm wide DIMENSIONS - Motor power - Max. output - Max head - Max. fluid temperature - Gaskets - S.G. > 0.75 kW10 m/h 16 m PP body 80Ӌ C PVDF body 110ڋC EPDM - FPM FPM < 1.3 T101 pumpT101 pump > CURVES DIMENSIONS - Motor power- Max. output - Max head - Max. fluid temperature...

Open the catalog to page 4

Immersed mounting or out of the tank, self priming230/400 V 3 ph motor- 50 Hz or 60 Hz upon request - 2,900 rpm Serial-mounted strainer built into the volute case (or external on T072 pump) Versions with vertical outlet tube with union nut as standard, optional outlet tube with grooved nozzle Versions with horizontal outlet with grooved nozzles as standard, optional flange fittings or union nuts Optional square fixation plate 302 mm wide DIMENSIONS - Motor power- Max. output - Max. head - Max. fluid temperature - Gaskets - S.G. > 0.75 kW7 m/h 10.8 m PP body 80ӋC PVDF body 110ڋC EPDM - FPM FPM...

Open the catalog to page 5

Immersed mounting or out of the tank, self priming230/400 V 3 ph - 50 Hz or 60 Hz upon request - 2,900 rpm Serial-mounted strainer built into the volute case Versions with vertical outlet tube (except T242) with union nut as standard,optional outlet tube with grooved nozzle On T242 : horizontal outlet only, with grooved nozzles as standard , optional union nuts or flange fittings Optional square fixation plate 302 mm wide - Motor power- Max. output - Max. head - Max fluid temperature - Gaskets - S.G. > DIMENSIONS 1.5 kW20 m/h 17 m PP body 80ӋC PVDF body 110ڋC EPDM - FPM FPM < 1,25 T202 pumpT202...

Open the catalog to page 6

403530 2520 15 1052468101214 Yield % Output (m3/h) Manometric head (m) >

Open the catalog to page 9

380 or 580 according to model 556,5 or 756,5 according to model >

Open the catalog to page 16

77.5 C Pumps Grooved nozzlesUnion nutsFlange fittings ؘA - BC (DN) - BؘC - A - nxؘD - BT072 InletOutlet 25 - 35G1"1/2 - DN25 - 31,5ؘ115 - 85 - 4xؘ14 - 31,5 >

Open the catalog to page 19

286 286 286 B B B n x D104.5 ؘA 117.5 A A ؘC 117.5 Pumps Grooved nozzlesUnion nutsFlange fittings A - BؘC (DN) - DC - ؘA - nxD - BT102 - T142 InletOutlet InletOutlet T202 50 - 5540 - 47G2"1/4 - DN40 - 60G2"3/4 - DN50 - 60150 - 110 - 4x18 - 60165 - 125 - 4x18 - 60 >

Open the catalog to page 20

G 2"3/4 D D Union nuts B > A ؘA C B > nxؘD B B Grooved nozzles A Flange fittings Pump Grooved nozzlesUnion nutsFlange fittings ؘA - BC (DN) - DؘA - C - nxؘD - B T242InletOutlet50 - 55ؘ165 - 125 - 4x18 - 60 G2"3/4 - DN50 - 60ؘ65 - 89165 - ؘ125 - 4x18 - 94G2"3/4 - DN50 - 102,5 >

Open the catalog to page 21
