Pumps M7-M15-M20

Product catalog summary

Overview: The document is a catalogue for SIEBEC's M7, M15, and M20 magnetic drive pumps, designed for various industrial applications such as surface treatment, chemical transfer, water treatment, and more. These pumps are known for their durability and efficiency, particularly in handling acids and bases.

Specifications:

Materials: Pump bodies are made from injected plastic, either Polypropylene or PVDF, offering excellent resistance to corrosive substances.
Temperature and Flow: Maximum fluid temperature is 80°C. The pumps offer a maximum flow rate of up to 2.8 m³/h and a maximum manometric head of up to 6.7 meters.
Design: Features a closed centrifugal pump impeller with a diffusion part for high efficiency. The impeller is driven by a high-capacity magnetic coupler, eliminating the need for gaskets and reducing leak risks.
Compatibility: Suitable for fluids with a specific gravity (S.G.) up to 1.2, depending on the model.

Model-Specific Details:

M7 Pump: Equipped with a 0.001 kW one-phase motor, it has a maximum output of 0.7 m³/h and a maximum head of 4 meters. It is compact and lightweight, with a mass of 1.9 kg.
M15 Pump: Available with a 0.045 kW motor (one-phase or three-phase), it offers a maximum output of 2 m³/h and a maximum head of 6 meters. It weighs 3.1 kg.
M20 Pump: Features a 0.09 kW motor (one-phase or three-phase), providing a maximum output of 2.8 m³/h and a maximum head of 7 meters. It has a mass of 3.5 kg.

Technical Features:

Motors are available in 230 V one-phase or 230/400 V three-phase configurations, with options for 50 Hz or 60 Hz operation.
Standard inlet/outlet fittings include grooved nozzles, with optional union nuts or flange fittings for M15 and M20 models.

Performance Curves: The document includes performance curves illustrating the relationship between manometric head and output for each pump model, highlighting their advised operating ranges.

Catalog excerpts

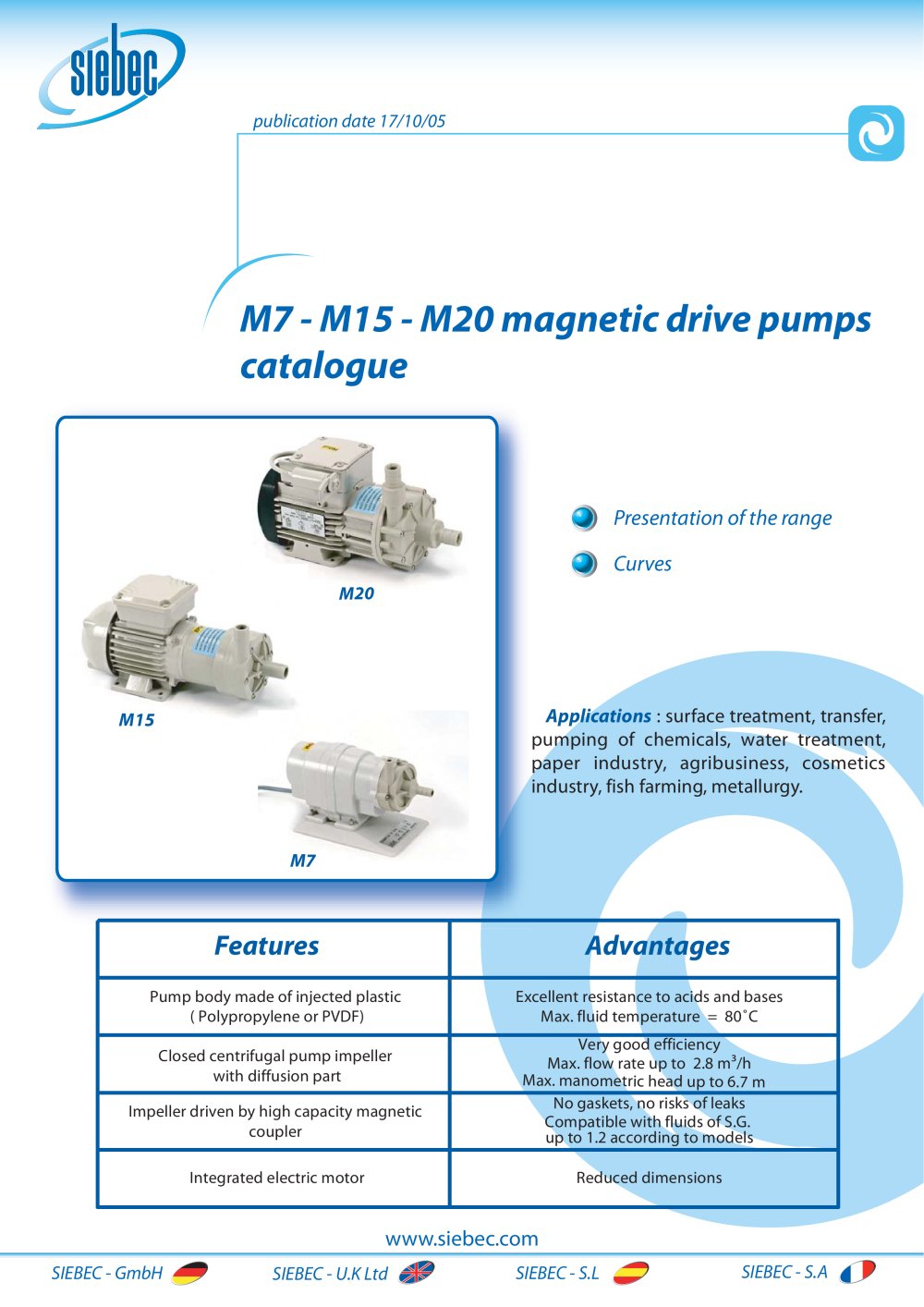

Pump body made of injected plastic ( Polypropylene or PVDF)Excellent resistance to acids and basesMax. fluid temperature = 80˚C Closed centrifugal pump impeller with diffusion partVery good efficiencyMax. flow rate up to 2.8 m/h Max. manometric head up to 6.7 m Impeller driven by high capacity magnetic coupler No gaskets, no risks of leaksCompatible with fluids of S.G. up to 1.2 according to models Integrated electric motorReduced dimensions SIEBEC - GmbH SIEBEC - U.K Ltd SIEBEC - S.L SIEBEC - S.A >

Open the catalog to page 1

230 V 1 ph motor or 230/400 V 3 ph motor (except M7)- 50 Hz or 60 Hz upon request - 2,900 rpmStandard inlet/outlet with grooved nozzles Optional union nuts or flange fittings except on M7 pump, union nuts only on M15 pump. M7 pumpM7 pump > - Motor power- Max. output - Max. head - Max. fluid temperature - S.G. - Gaskets > 0,001 kW one-phase motor DIMENSIONS 0.7 m/h 4 m CE PP body 80ӋC < 1.2 EPDM - FPM CURVES - Motor power- Max. output - Max. head - Max. fluid temperature - S.G. - Gaskets > 0.045 kW one-phase or three-phase motor DIMENSIONS 2 mڳ/h 6 m CE PP body 80˚ C < 1.2 EPDM - FPM M15 pumpM15...

Open the catalog to page 2
