Pumps A15-A30

Pumps A15-A30

Product catalog summary

Overview: The catalogue provides detailed information on the A15 to A30 mechanical drive pumps by SIEBEC, designed for various applications including surface treatment, chemical transfer, water treatment, and more. The pumps are available in different models, each with specific features and technical specifications.

Applications: These pumps are suitable for industries such as surface treatment, chemical transfer, water treatment, paper industry, agriculture, agribusiness, cosmetics, fish farming, and metallurgy.

Material and Construction: The pump bodies are made from injected plastic, either Polypropylene (PP) or PVDF, offering excellent resistance to acids and bases. The maximum fluid temperature is 80˚C for PP and 110˚C for PVDF.

Technical Specifications:

A15 Pump: Motor power of 0.18 kW, max output of 4.8 m³/h, max head of 9 m, and suitable for fluids with specific gravity (S.G.) less than 1.2.
A18 Pump: Motor power of 0.75 kW, max output of 10 m³/h, max head of 18 m, and suitable for fluids with S.G. less than 1.8.
A19 Pump: Motor power of 1.1 kW, max output of 14 m³/h, max head of 19 m, and suitable for fluids with S.G. less than 1.7.
A27 Pump: Motor power of 2.2 kW, max output of 30 m³/h, max head of 22 m, and suitable for fluids with S.G. less than 1.4.
A30 Pump: Motor power of 4 kW, max output of 48 m³/h, max head of 22 m, and suitable for fluids with S.G. less than 1.5.

Features and Advantages: The pumps feature a closed centrifugal pump impeller with a diffusion part for high efficiency, integrated electric motors for reduced dimensions, and automatic repriming with a suction head up to 2 m. They also include serial-mounted carbide seals for wear resistance and optional fittings for various connections.

Performance Curves: The catalogue includes performance curves illustrating the relationship between manometric head, output, and yield percentage for each pump model, helping users select the appropriate pump for their needs.

Connection Options: The pumps offer standard inlet/outlet with grooved nozzles, with optional union nuts or flange fittings available for different installation requirements.

Catalog excerpts

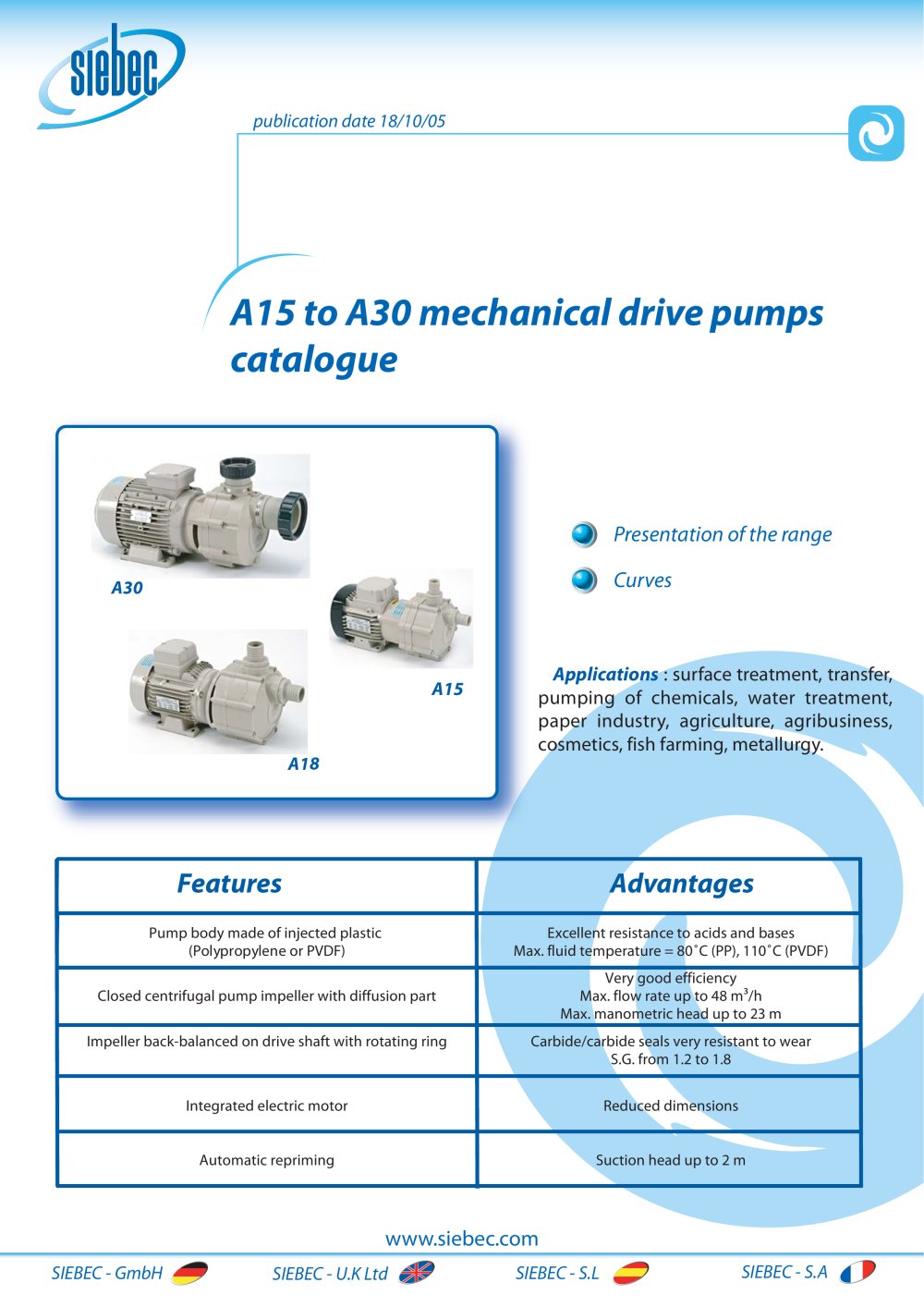

Pump body made of injected plastic (Polypropylene or PVDF)Excellent resistance to acids and basesMax. fluid temperature = 80˚C (PP), 110˚C (PVDF) Closed centrifugal pump impeller with diffusion partVery good efficiencyMax. flow rate up to 48 m/hMax. manometric head up to 23 m Impeller back-balanced on drive shaft with rotating ringCarbide/carbide seals very resistant to wearS.G. from 1.2 to 1.8 Integrated electric motorReduced dimensionsAutomatic reprimingSuction head up to 2 m SIEBEC - GmbH SIEBEC - U.K Ltd SIEBEC - S.L SIEBEC - S.A >

Open the catalog to page 1

Self repriming230/400 V 3ph motor - 50 Hz or 60 Hz upon request - 2,900 rpm Serial-mounted strainer built into the volute case (except for A15) Serial-mounted carbide / carbide seals (other types of seals available upon request) Standard inlet/outlet with grooved nozzles Optional union nuts or flange fittings DIMENSIONS - Motor power- Max. output - Max. head - Max. fluid temperature - Gaskets - S.G. > 0.18 kW4.8 m/h 9 m PP body 80ӋC EPDM - FPM < 1.2 A15 pumpA15 pump > CURVES DIMENSIONS - Motor power- Max. output - Max. head - Max. fluid temperature - Gaskets - S.G. > 0.75 kW10 mڳ/h 18 m PP body...

Open the catalog to page 2

Self repriming230/400 V 3ph motor - 50 Hz or 60 Hz upon request - 2,900 rpm Serial-mounted strainer built into the volute case Serial-mounted carbide / carbide seals (other types of seals available upon request) Standard inlet/outlet with grooved nozzles Optional union nuts or flange fittings DIMENSIONS - Motor power- Max. output - Max. head - Max. fluid temperature - Gaskets - S.G. > 2.2 kW30 m/h 22 m PP body 80Ӌ PVDF body 110ڋ EPDM - FPM FPM < 1.4 A27 pumpA27 pump > CURVES - Motor power- Max. output - Max. head - Max. fluid temperature - Gaskets - S.G. > DIMENSIONS 4 kW48 mڳ/h 22 m PP body...

Open the catalog to page 3

C ؘC n x DؘA A > B B D Pumps Grooved nozzlesUnion nutsFlange fittings ؘA - BC (DN) - DؘA - C - nxؘD - B A18 - A19InletOutlet40 - 47ؘ150 - 110 - 4x18 - 60 G2"1/4 - DN40 - 60 ؘA C ؘA C n x ؘD > B B D Pump Grooved nozzlesUnion nutsFlange fittings A - BؘC (DN) - DA - ؘC - nxD - B A15InletOutletؘ25 - 35115 - ؘ85 - 4x14 - 31.5 G1"1/2 - DN25 - 31.5 >

Open the catalog to page 7

B D ؘ C Pumps Grooved nozzlesUnion nutsFlange fittings A - BؘC (DN) - DC - ؘA - nxD - BA27 - A30 InletOutlet Tr108x5 - DN65 - 73ؘ185 - 145 - 4xؘ18 - 4465 - 80 ؘ65 - 80G2"3/4 - DN50 - 44185 - ؘ145 - 4x18 - 73 >
