Oil Extractors H

Oil Extractors H

Product catalog summary

Overview: The SIEBEC oil extractors are designed for efficient oil removal from degreasing solutions and soluble cutting oils. They are constructed from polypropylene, making them suitable for use with acidic or basic solutions up to 60°C. The extractors feature a polypropylene filter body with a fast-opening lid, a removable micro-fibre canister, a centrifugal pump with magnetic drive, and a pressure gauge to monitor cartridge clogging.

Specifications: The canister has a capacity of 11.6 liters and is filled with 100% polypropylene microfibres, which are hydrophobic and can retain up to 6 liters of oil per 700 grams of microfibres. The microfibres can be compacted and incinerated, and do not require special storage conditions.

Models: The catalogue details two models: the H50 and H51. The H50 has a maximum output of 4 m³/h, while the H51 offers 9 m³/h. Both models use a polypropylene microfibre canister and are equipped with a 50µ filtration cartridge.

Technical Features: The extractors include a perforated lid, a tightening cap with a handle for easy handling, and a sealing gasket. The incoming flow is degreased as it passes through the microfibres and exits through the pump outlet.

Performance Curves: The performance curves for both models are provided, showing the relationship between manometric height and output in m³/h. The H50 and H51 models have different performance characteristics, with the H51 offering higher output capabilities.

Dimensions and Connections: Detailed dimensions and connection specifications are provided for both the H50 and H51 models, including measurements for pump inlets, outlets, and various nozzle and flange sizes.

Catalog excerpts

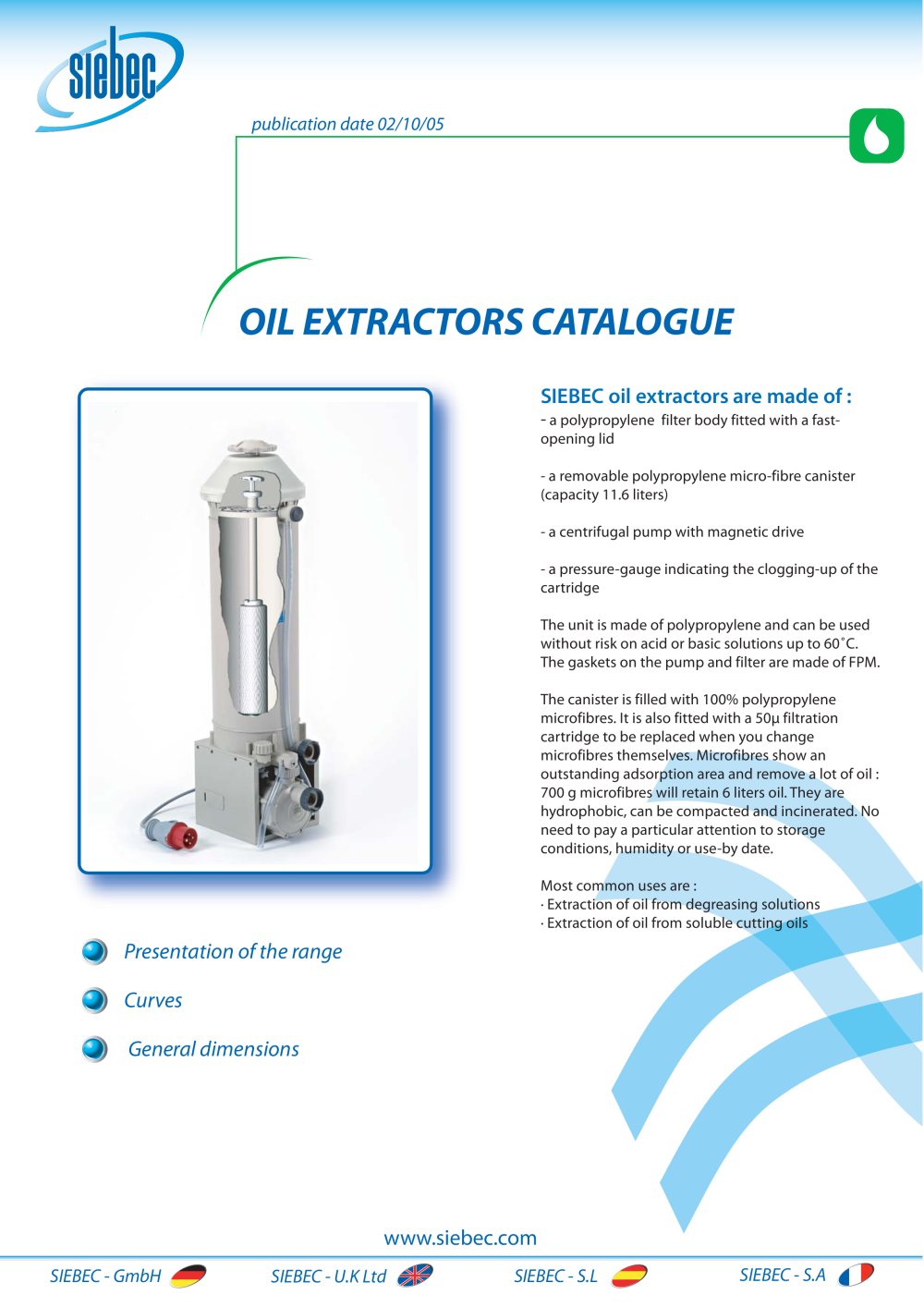

- a polypropylene filter body fitted with a fast-opening lid - a removable polypropylene micro-fibre canister (capacity 11.6 liters) - a centrifugal pump with magnetic drive - a pressure-gauge indicating the clogging-up of the cartridgeThe unit is made of polypropylene and can be used without risk on acid or basic solutions up to 60˚C. The gaskets on the pump and filter are made of FPM.The canister is filled with 100% polypropylene microfibres. It is also fitted with a 50 filtration cartridge to be replaced when you change microfibres themselves. Microfibres show an outstanding adsorption area and remove a lot of oil : 700 g microfibres will retain 6 liters oil. They are hydrophobic, can be compacted and incinerated. No need to pay a particular attention to storage conditions, humidity or use-by date.Most common uses are :շ Extraction of oil from degreasing solutions Extraction of oil from soluble cutting oils SIEBEC - GmbH SIEBEC - U.K Ltd SIEBEC - S.L SIEBEC - S.A >

Open the catalog to page 1

DIMENSIONS - Pump model - Maximum output - Filtering element > M504 m/h 1 polypropylene microfibres canister 11.6 liters Oil extractor H50Oil extractor H50 > CURVES DIMENSIONS - Pump model - Maximum output - Filtering element > M100 9 mӳ/h 1 polypropylene microfibres canister 11.6 liters Oil extractor H51Oil extractor H51 > CURVES

Open the catalog to page 2

perforated lidtightening cap with handle for easy handling > incoming flow PP microfibres > volume to fill up with microfibres 50 PP cartridge degreased outgoing flowpump inletoil extractor outlet sealing gasket >

Open the catalog to page 3

H > E ؘG B D > A ؘC nxF Type of pump Grooved nozzleUnion nutFlange ؘA - BC (DN) - DؘG - E - nxؘF - HM50 pump inletoil extractor outlet 25 - 3525 - 35G1"1/2 - DN20 - 30G1"1/2 - DN20 - 30100 - 75 - 4x12 - 31.5100 - 75 - 4x12 - 140 >

Open the catalog to page 6

H B D > E ؘG A ؘC nxF Type of pump Grooved nozzleUnion nutFlange ؘA - BC (DN) - DؘG - E - nxؘF - HM100 pump inletoil extractor outlet 40 - 4740 - 47G2"1/4 - DN40 - 60G2"1/4 - DN40 - 60150 - 110 - 4x18 - 60150 - 110 - 4x18 - 60 >

Open the catalog to page 8
