MC Filters

Product catalog summary

Application: The MC filter range is designed for filtering low volumes (70 to 500 liters) of galvanoplasty electrolytes such as Nickel, Zinc, Copper, Chrome, Platinum, and Gold. It is also suitable for filtering chemicals and laboratory applications.

Material and Resistance: The filters are made of injected plastic (Polypropylene), offering high resistance to acids and bases. The maximum fluid temperature is 80˚C.

Filtration Specifications: The system uses cartridges for filtration, which can be wound, spun-bonded, or pleated, with sizes ranging from 10'' to 20'' and filter gauges from 50 to 1 micron.

Pump and Flow Rate: The filters are equipped with a magnetic drive pump, providing a flow rate from 0.4 to 4 m³/h. The design is modular, available in double chamber in-line or parallel versions.

Technical Features:

MC4 - MC10 Filters: These models feature a manometric head in meters and output in liters per hour. The MC4 filter uses a 4" wound cartridge, while the MC10 uses a 10" wound cartridge.
MC15 Filters: These filters have a manometric head in meters and output in m³/h. They can be configured with 1 x 10" or 2 x 10" wound cartridges, or 2 x 20" wound cartridges, depending on the pump model (M15, M35, or M50).

General Dimensions: The document provides detailed dimensions for MC4, MC10, and MC15 filters, including single and double chamber configurations.

Connections: The MC15 filters feature various connection options, including grooved nozzles, union nuts, and flange fittings, with specific dimensions for inlet and outlet connections.

Catalog excerpts

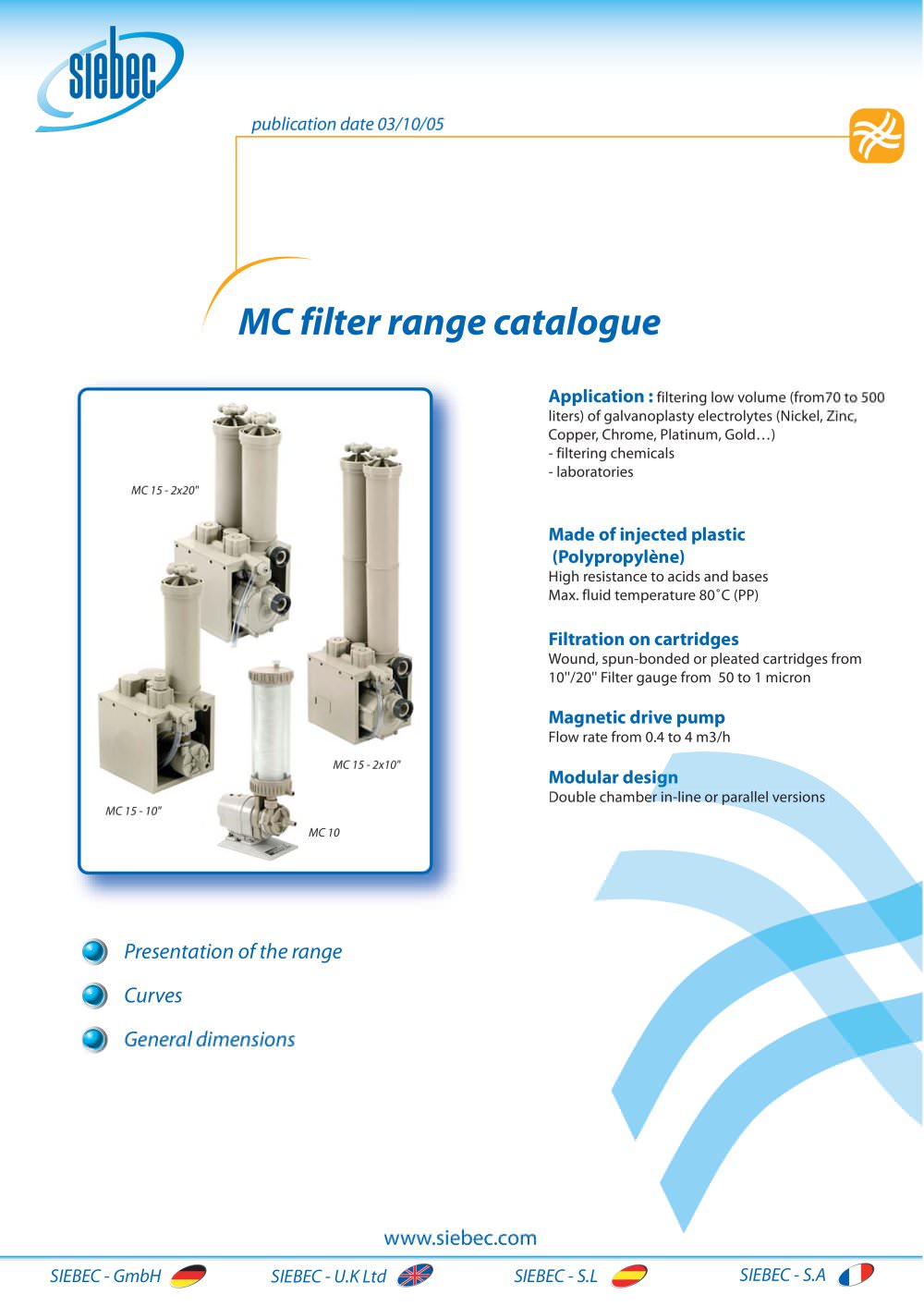

Application : > filtering low volume (from70 to 500 liters) of galvanoplasty electrolytes (Nickel, Zinc, Copper, Chrome, Platinum, Gold) - filtering chemicals - laboratories Made of injected plastic (PolypropylŨne) > High resistance to acids and bases Max. fluid temperature 80˚C (PP) Image 80x110 mm Filtration on cartridges > Wound, spun-bonded or pleated cartridges from 10''/20'' Filter gauge from 50 to 1 micron Magnetic drive pump > Flow rate from 0.4 to 4 m3/h Modular desig ign > Double chamber in-line or p er in-line or parallel versions MC 10MC 15 - 10"MC 15 - 2x10" MC 15 - 2x20" SIEBEC - GmbH SIEBEC - U.K Ltd SIEBEC - S.L SIEBEC - S.A >

Open the catalog to page 1

- Pump model - Max. output - Filtering element > M7 from 0.35 m/h to 0.375 mӳ/h 1 wound cartridge 4" for MC4 filter 1 wound cartridge 10" for MC10 filter DIMENSIONS MC4 - MC10 filtersMC4 - MC10 filters > CURVES - Pump model - Max. output - Filtering element > M15-M35 1.5 m/h 1 x 10" wound cartridge DIMENSIONS MC15 filterMC15 filter > CURVES - Pump model - Max. output - Filtering element > M35-M50 from 1.3 mӳ/h to 4 m/h 2 x 10" wound cartridges or 2 x 20" wound cartridges DIMENSIONS MC15 filterMC15 filter > CURVES

Open the catalog to page 2

MC15 filter with 1 x10" cartridge - M15 pumpMC15 filter with 1 x10" cartridge - M35 pump MC15 filter with 2 x 10" cartridges in series - M35 pumpMC15 filter with 2 x 20"cartridges in series - M50 pump MC15 filter with 2 x 10" cartridges in parallel - M35 pumpMC15 filter with 2 x 20" cartridges in parallel - M50 pump >

Open the catalog to page 4
