SCU Brochure

Product catalog summary

Company Overview
Sicon Chat Union Electric Co., Ltd. (SCU) specializes in core power technologies and integrated solutions for industrial facilities, net-zero factories, and modern energy systems. The company prioritizes sustainability, intelligence, and cleanliness in energy solutions, with a focus on customer success, integrity, and continuous improvement. SCU operates in power infrastructure, EV charging, and advanced energy systems, aiming to modernize energy systems through digital intelligence and power technologies.

Core Technologies and Innovations
SCU is known for its technology and innovation, holding numerous patents in invention, design, and utility models. The company has a large-scale manufacturing facility and contributes to the development of national and industry standards. SCU's R&D is innovation-driven, focusing on in-house development of core technologies and components.

Energy Storage Solutions
SCU offers energy storage solutions including Core Energy Storage Technologies, C&I Energy Storage Systems, and Utility-Scale Energy Storage Systems. Their products are designed for high efficiency, reliability, and intelligent energy management, featuring high-efficiency performance, rugged design, and flexible system integration.

Electric Vehicle Charging Infrastructure
The company provides comprehensive EV charging solutions, including core EV charging technologies, EV charging products, and battery-assisted EV chargers, designed to support the growing demand for EV infrastructure with high efficiency and reliability.

Data Center Infrastructure Solutions
SCU offers solutions for data center infrastructure, including core UPS technologies, UPS products, power distribution systems, and aisle containment systems, aimed at ensuring reliable power supply and efficient energy management in data centers.

Global Projects and Achievements
SCU has expanded to over 80 countries with 500+ projects worldwide, including significant projects like the Beijing 2008 Olympic Games Power Assurance and the BeiDou-3 Ground Segment. SCU's projects focus on delivering clean energy, reducing emissions, and supporting regional economic growth.

Product Specifications
The document provides detailed specifications for various products, including energy storage systems and EV charging solutions. Key parameters include efficiency ratings, voltage ranges, communication interfaces, and environmental conditions.

Versatile Applications
The system supports off-grid applications with a three-phase four-wire design, compatible with various BMS and EMS platforms, offering a fast power response time of less than 10 ms.

Safe & Reliable
The PCM250 is designed for utility-scale energy storage with a modular string architecture supporting up to 1500V DC input, including advanced grid-support functions like VSG, primary frequency regulation, and black start capability.

Technical Specifications
The system operates within a DC voltage range of 1000–1500Vdc and offers a maximum DC power of 275 kW, supporting both grid-tied and off-grid configurations with various rated power and voltage specifications.

Advanced Performance, Grid Ready
The system features a three-level topology for up to 99% conversion efficiency and supports 1500V battery systems, designed for utility-scale and C&I energy storage applications with flexible deployment options.

Communication and Control
The system supports multiple communication protocols and interfaces, including CAN, RS485, and MODBUS, integrating with BMS and EMS for coordinated control and monitoring.

Battery Management
The FM BMS offers full-matrix active balancing technology for improved cell consistency and extended battery life, including a multi-level architecture for precise battery management and system reliability.

Immersion Liquid Cooled Battery Pack
The battery pack features advanced thermal management with immersion cooling technology, providing enhanced safety, reliability, and reduced energy consumption.

POWERSYNC Multi-Energy Management System
This system integrates PV, battery storage, generators, and EV charging into a unified control platform, supporting both grid-connected and off-grid operations with fast transition times.

GRES Series
The GRES system combines grid power, diesel generators, PV, and battery storage in a containerized solution, offering modular scalability, high performance, and broad compatibility for various applications.

BRES Series
The BRES system integrates PCS and battery technology for energy storage, supporting peak shaving and microgrid operations, featuring high reliability, long service life, and comprehensive safety protection.

Overview: The document provides detailed technical specifications and features of various energy storage and charging systems, focusing on the BRES Series, GPCS Series, LRES Series, and EV charging infrastructure. It highlights the integration of advanced technologies for efficient energy management and storage solutions.

Technical Specifications: The document outlines specifications for different models, including rated power, voltage, current, energy capacity, weight, dimensions, and environmental conditions. Key parameters such as operating temperature, humidity, altitude, and noise levels are specified for optimal performance.

Key Features: The systems are designed for high performance, reliability, and scalability. Features include immersion cooling, intelligent energy management, seamless source transfer, and comprehensive safety protection. The systems support various operating modes and are adaptable to different environmental conditions.

Energy Storage Systems: The BRES Series integrates PCS, immersion-cooled batteries, and grid power for applications like peak shaving and microgrids, offering high reliability with dual AC/DC redundancy and long service life with active-balancing BMS.

Charging Solutions: The document describes high-efficiency charging modules for electric vehicles, featuring full-SiC power devices, wide voltage ranges, and intelligent digital control. The systems support global charging standards and offer flexible deployment options.

Environmental Adaptability: The systems are designed to operate in extreme conditions, including high altitudes, deserts, and coastal regions, featuring advanced thermal management and corrosion protection for durability and safety.

Intelligent Management: AI-powered diagnostics and real-time monitoring enhance system reliability and efficiency, supporting remote management and integration with major charging operators.

Compliance and Safety: The systems comply with international standards and certifications, ensuring safety and reliability in various applications.

Overview: The document provides detailed specifications and features of various electric vehicle (EV) charging systems, focusing on their compatibility, efficiency, and adaptability to different environments and standards.

Specifications: The charging systems support multiple global standards such as CCS, CHAdeMO, GB/T, and NACS, offering high efficiency (up to 97%) and designed for both indoor and outdoor installations with protection ratings like IP55.

Key Features: The chargers include customizable appearances, intelligent control systems, user-friendly interfaces, and remote management capabilities, supporting open protocols like OCPP for interoperability and featuring advanced energy management systems.

Product Variants: The document describes several models, including the EVMS Wallbox, EVMS Pro, EVMS MAX, EVPOC FLASH, and EVPOC FAST, each tailored for different power outputs and applications, from wall-mounted units to high-power, liquid-cooled systems.

Environmental and Operational Parameters: The chargers operate efficiently across a wide temperature range (-35°C to +60°C) and altitudes up to 2000m, designed for low noise operation and including features like hot-swappable modules for easy maintenance.

Advanced Features: Some models offer dynamic power sharing, intelligent energy management, and seamless integration with payment and fleet management systems, including safety features like comprehensive electrical protection and smart anti-backfeed control.

Conclusion: These charging systems are engineered to provide reliable, scalable, and efficient solutions for various EV charging needs, enhancing both user experience and operational efficiency.

Overview: The document provides detailed specifications and features of various Uninterruptible Power Supply (UPS) systems and related components, focusing on modular architecture, efficiency, and application suitability for critical environments.

CM Series Energy Storage UPS Module: This series features an integrated design with advanced control technology and double-conversion topology, using SiC power devices for high conversion efficiency and powerful charging capability. Key features include modular UPS architecture, adjustable battery voltage, intelligent battery management, and real-time monitoring interfaces.

CMS Series Modular UPS: Designed for critical power applications, this series offers high availability, flexible capacity expansion, and simplified maintenance, supporting hot-swappable power modules, independent module control, and intelligent monitoring for remote management.

DSP Series High-Frequency UPS: This series combines advanced digital control and semiconductor technologies in a double-conversion online architecture, ideal for medium and large power applications, offering high power density, efficiency, and reliable performance.

ERMS Series Embedded Modular UPS: Designed for small and medium-power applications, this series supports distributed power deployment and installation in standard racks, featuring advanced rectification, inverter, and distributed control technologies for higher efficiency and reliability.

Integrated Power Module: This module consolidates transformers, SVG compensation, power distribution, backup power, and feeder systems into a unified architecture, simplifying system integration and improving efficiency with centralized management.

EFS 224-100 Series High-Voltage Immersion-Cooled Lithium Battery System: This system features high safety, power density, and compact footprint, suitable for UPS backup power, frequency regulation, and other energy storage applications.

SIVACON 8PT Siemens Licensed Intelligent Low-Voltage Switchgear: This switchgear platform ensures global consistency, safety, and reliability, featuring a fully type-tested design, intelligent protection devices, and flexible installation options.

Overview
The document outlines the specifications and features of modular data center solutions, specifically the SmartModule200, SmartModule1000, and SmartModule2000, designed for flexible, high-performance power distribution and predictive maintenance, suitable for various applications including bank branches, business offices, telecom sites, and medium-to-large enterprises.

Specifications

Cabinet System: Enclosed cabinet design with dimensions of 600 × 1200 × 2000 mm, featuring single front glass doors and double rear perforated steel doors, with options for ambient lighting, shelves, and intelligent access control.
Power Distribution System: Rack-Mount PDUs with options for 220V single-phase or 380V three-phase input, equipped with surge protection and configurable outlets.
UPS System: Double-conversion online UPS supporting various configurations, compatible with lithium-ion and VRLA batteries, with capacities ranging from 1kVA to 200kVA.
Cooling System: Options include rack-mounted cooling (3.5–12.5kW) and in-row precision cooling (12.5–70kW), with features like EC fans and variable-speed compressors for energy efficiency.
Monitoring System: Integrated 10-inch touchscreen for monitoring UPS, power distribution, cooling, temperature, humidity, smoke, water leakage, and door access status.

Key Features

Easy Deployment & Maintenance: Modular architecture allows for fast maintenance and plug-and-play expansion, with standard monitoring and automatic alarms for system faults.
High Reliability: Features like hot/cold aisle isolation and automatic refrigerant leak detection enhance reliability and cooling efficiency.
Higher Efficiency: Energy-efficient components such as EC fans and inverter compressors contribute to a low PUE of 1.2.
Intelligent Management: 365×24 remote monitoring and expert support, with options for multi-factor access control and visualized management platforms.

Applications
The SmartModule solutions are ideal for edge computing applications, data centers, government facilities, and enterprises requiring scalable, reliable, and efficient data center infrastructure.

Catalog excerpts

S ynergize for Digital Power C ollaborate on Green Energy U nlock a Sustainable Future Built on Craftsmanship, Driven by Purpose SICON CHAT UNION ELECTRIC CO., LTD +86-311-85903762 [email protected] https://www.scupower.com No. 12, South Huangshan Street, High-tech Zone,Shijiazhuang, Hebei 050035, China Specifications subject to change without notice. Actual product shall prevall SCU reserves the right of finalinterpretation. Version：26.07 -V1

Open the catalog to page 1

03 17 43 ELECTRIC VEHICLE CHARGING INFRASTRUCTURE OVERALL SOLUTION COMPANY PROFILE ABOUT US ENERGY STORAGE SYSTEM SOLUTION Core Energy Storage Technologies 19 C&I Energy Storage Systems 31 Utility-Scale Energy Storage Systems 39 Core EV Charging Technologies EV Charging Products Battery Assisted EV Charger Data Center Infrastructure Soluti Core UPS Technologies UPS Products Power Distribution Systems Aisle Containment Systems

Open the catalog to page 2

ABOUT US Sicon Chat Union Electric Co., Ltd. (Stock Code: 833426) provides core power technologies, intelligent energy platforms, and integrated solutions for industrial facilities, net-zero factories, and modern energy systems.Guided Entered the EV charging market and launched 15kW high-efficiency charging Listed on the NEEQ, completed a new manufacturing base, and launched our Expanded into energy storage with MPCS, BMS, high-reliability battery PACKs, Recognized as a Specialized and Sophisticated “Little Giant” Enterprise. An modules and high-power DC fast chargers. third-generation high-power...

Open the catalog to page 3

SCU | 06 ynergize for Digital Power What Sets Us ApartEnd-to-End Product Portfolio • 85,000+ m2 Smart Manufacturing Facility • Large-Scale Manufacturing of Data Center, EV Charging, and Energy Storage Products Innovation-DrivenR&D • In-House Development of Core Technologies and Components ■ Contributor to Multiple National and Industry Standards FlexibleCustomization • Designed to Meet Diverse Project Requirements Strong Leadership • A Culture of Leadership Development • Long-Term Leadership Continuity • Proven Operational Resilience Extensive Customer Base • Trusted Across Data Centers, Telecommunications,...

Open the catalog to page 4

ollaborate on Green Energy

Open the catalog to page 5

CLASSIC CASE nlock a Sustainable Future Making Energy More Sustainable, Intelligent, and Cleaner SCU Net-Zero Smart Manufacturing Plant Configuration: 3MWp PV • 3MW PCS • 6MWh BESS • Energy Management Platform Investment: Total Investment: USD 1.39 Million Project Benefits: Generates approximately 10,000 kWh of clean electricity per day and 3 GWh annually, delivering a levelized electricity cost as low as USD 0.038/kWh over a 10-year lifecycle. Environmental Benefits: Equivalent to saving approximately 4,000 tons of standard coal, reducing nearly 10,000 tons of CO₂ emissions, and planting 84,200...

Open the catalog to page 6

100MW / 400MWh Grid-Forming Energy Storage Project Configuration： Total Investment: USD 55.6 Million Industry-first grid-forming string PCS with full immersion Project Benefits: Expected IRR: 12%.Delivers strong project economics 100MW / 400MWh standalone energy storage station with through operational optimization and efficient asset 20 × 5MW inverter & step-up integrated stations, one Environmental Impact： storage substation, and 960 battery clusters rated at Supports 300+ jobs, strengthens the local clean energy supply chain, and delivers reliable renewable power while contributing to regional...

Open the catalog to page 7

3,000P Cross-Strait Intelligent Computing Center Critical Power Support for the Beijing Winter Olympics Public Transportation Charging Project Country: Pingtan, Fujian, China Country: Beijing, China Country: Thailand Country: Nigeria Configuration: UPS Power Protection System Configuration: EVMS PRO High-Power DC Fast Configuration: BRES Energy Storage Container + Charging Station Data Center Project for the Mining Industry Audi Charging Station Daxing Airport Green Mobility Project Country: Indonesia Country: Italy Country: Beijing, China Configuration: EVMS Chargers Configuration: Satellite...

Open the catalog to page 8

DHL GoGreen Initiative Country: China Configuration: Dual-Gun DC Fast Chargers and Satellite DC EV Charging System Smart Charging Infrastructure Accelerating EV Adoption in Wuhai Country: Inner Mongolia, China Configuration: Satellite DC EV Charging System Heavy-Duty EV Charging Projects for the Steel Industry Zhengding International Airport Green Airport Project Country: China Country: Hebei, China Configuration: Fast Charging System for Configuration: Satellite DC EV Charging System Heavy-Duty Electric Trucks Smart EV Charging Hub for an Automotive Industrial Park Commercial & Industrial BESS...

Open the catalog to page 9

SPS SeriesOn/Off-Grid Hybrid Energy Storage Inverter SPS30/SPS75 Hybrid Energy Storage Inverter features a highly integrated modular architecture, combining PV inverter (MPPT), bidirectional PCS, and seamless on/off-grid switching (STS) into one intelligent platform.Designed for stable and uninterrupted power delivery, the system enables optimized multi-energy management for applications with weak or unstable grid conditions. High-Efficiency Performance ■ 30kW / 75kW output with SiC power devices and DSP control, efficiency >98%; ■ Supports 110% overload operation and 150% PV oversizing with...

Open the catalog to page 11

Built on a modular string architecture, the PCM 125 supports flexible system scaling through parallel operation and centralized control.Advanced digital control enables grid-forming, grid-connected, and off-grid operation while ensuring high reliability.Flexible battery integration improves battery utilization, extends service life, and maximizes system value. Flexible Deployment • Wide DC voltage range of 650-950V, compatible with both air-cooled and liquid-cooled battery systems • 125kW modular design compatible with a wide range of battery capacities • Standardized modular design for simplified...

Open the catalog to page 12

PCM 250 Grid-Following / Grid-Forming PCSUtility-Scale Energy Storage PCS Built on a modular string architecture with up to 1500V DC input, the PCM250 supports both grid-following and grid-forming operation.Ad-vanced grid-support functions, including VSG, primary frequency regulation, and black start capability, ensure stable operation in utility-scale and renewable energy applications. • Three-level topology delivers up to 99% conversion efficiency and supports 1500V battery systems with both air- and liquid-cooled configurations. • Modular architecture enables independent operation, simplified...

Open the catalog to page 13

All Sicon Chat Union Electric Co., Ltd catalogs and technical brochures

Archived catalogs

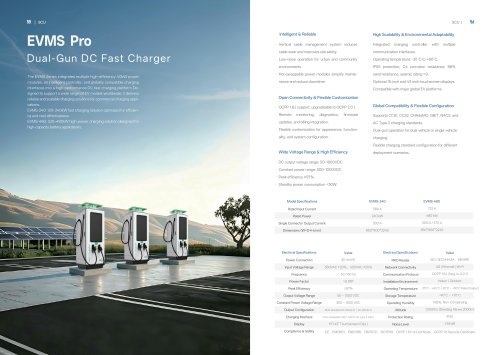

EVMS PRO
