Product Overview: The WT9-2P160 is a photoelectric proximity switch from the W9-2 product group, designed for energetic sensing applications. It features an adjustable scanning distance and is equipped with an infrared LED emitter.

Technical Specifications:

Model Name: WT9-2P160
Part Number: 1019097
Emitter: LED IR
Scanning Distance: Adjustable, 50 to 1,500 mm
Switching Frequency: 500 Hz
Outputs: Short-circuit protected
Ambient Operating Temperature: -40°C to +60°C
Sensing Range: 50 to 1,500 mm for objects with 90% remission
Adjustment: Potentiometer
Light Source: Infrared light
Light Spot Diameter: 600 mm at 1,500 mm distance
Design: Cuboid, Dimensions: 12 x 40 x 22 mm
Supply Voltage: DC 10 to 30 V
Ripple: <= 5 Vss
Power Consumption: <= 30 mA
Switching Output: PNP antivalent
Signal Voltage PNP HIGH/LOW: Vs - 2.9 V / approx. 0 V
Max. Output Current: <= 100 mA
Response Time: <= 1,000 µs
Connection Type: Cable, 2 m, 4 cores
Conductor Cross Section: 0.14 mm²
Circuit Protection: Reverse-polarity and short-circuit protection, interference suppression
Enclosure Rating: IP 67, IP 69K
Ambient Storage Temperature: -40°C to +75°C
Weight: Approximately 80 g

Additional Information: The product is subject to change without notice, and the specified features and technical data do not represent any guarantee. For more information, contact SICK AG or visit their website.

Catalog excerpts

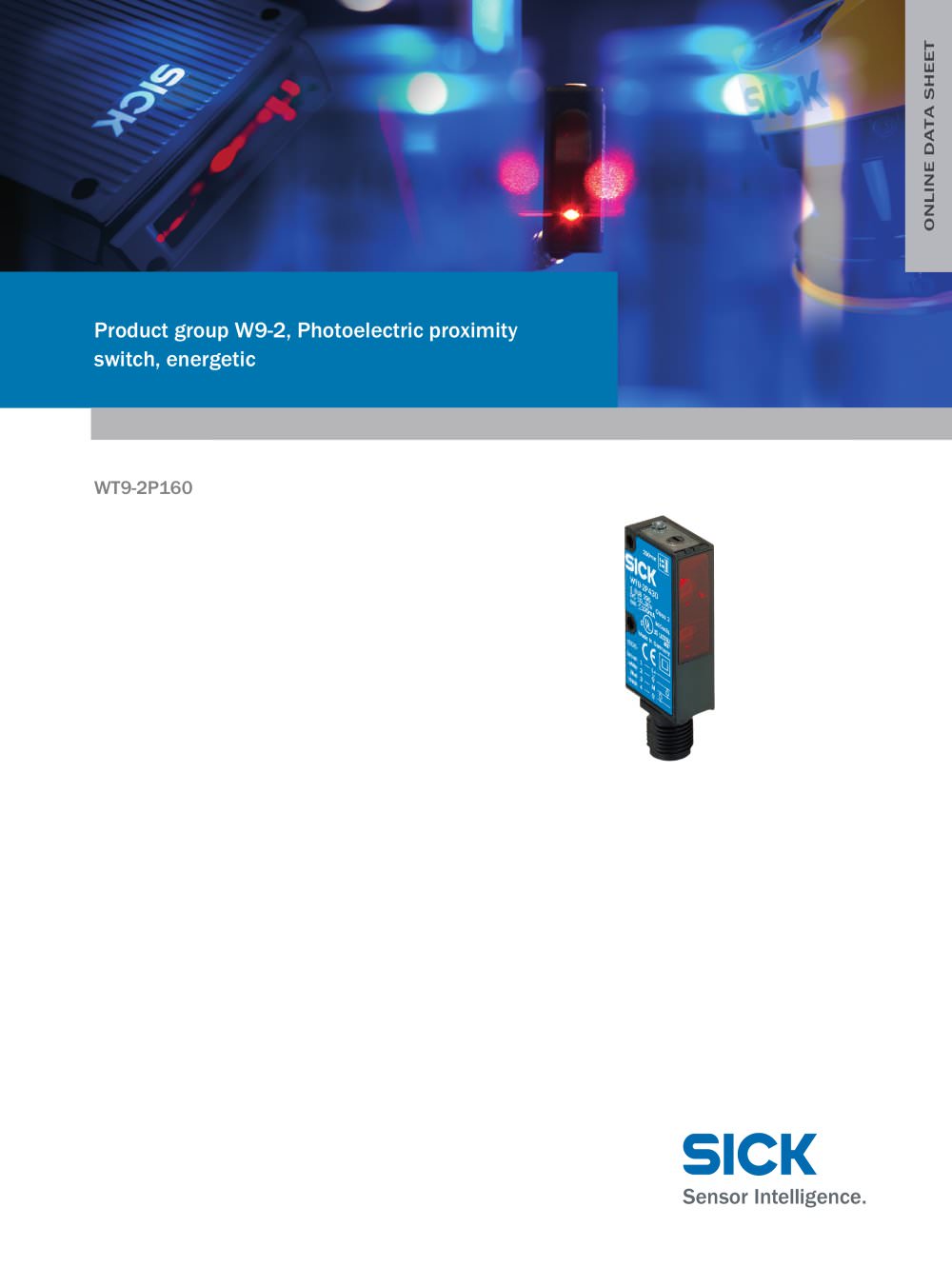

ONLINE DATA SHEET Product group W9-2, Photoelectric proximity switch, energetic WT9-2P160
