Overview: The S3000 Professional safety laser scanner, model S30A-4011DA, is designed for comprehensive vehicle safeguarding with a sensor head and I/O module. It features switchable protective and warning fields, configurable speed ranges, and a protective field range of up to 7 meters.

Key Specifications:

Model Name: S30A-4011DA
Part No.: 1028936
Protective Field Range: 4 m, 5.5 m, or 7 m
Laser Protection Class: 1
Enclosure Rating: IP 65
Safety Integrity Level: SIL2
Performance Level: PL d
Operating Temperature: -10 °C to 50 °C
Dimensions: 155 mm x 185 mm x 160 mm
Weight: 3.3 kg
Scan Angle: 190°
Response Time: 60 ms, 120 ms
Supply Voltage: 16.8 V DC, 24 V DC, 28.8 V DC

Benefits:

Variable protective fields adapt to vehicle speed changes.
Integration with control systems for complete safeguarding.
Fast diagnostics and easy device replacement reduce downtime.
Largest protective field range enhances application opportunities.
Easy installation for both stationary and mobile applications.

Applications:

Hazardous area protection (vertical and horizontal)
Access protection (vertical)

Functions:

Simultaneous monitoring of two areas
Static control outputs for warning field switching
Incremental encoder inputs
External device monitoring
Integrated configuration memory
Safe device communication via EFI/SDL

Technical Data:

Number of Field Sets: 8
Resolution: Selectable (30 mm to 150 mm)
Distance Measuring Range: 49 m
Electrical Connection: Plug-in connection housing with screw terminals
Configuration and Diagnostics Interface: RS-232
Data Interface: RS-422

Contact Information: For further assistance, contact SICK representatives in various countries as listed on their website.

Catalog excerpts

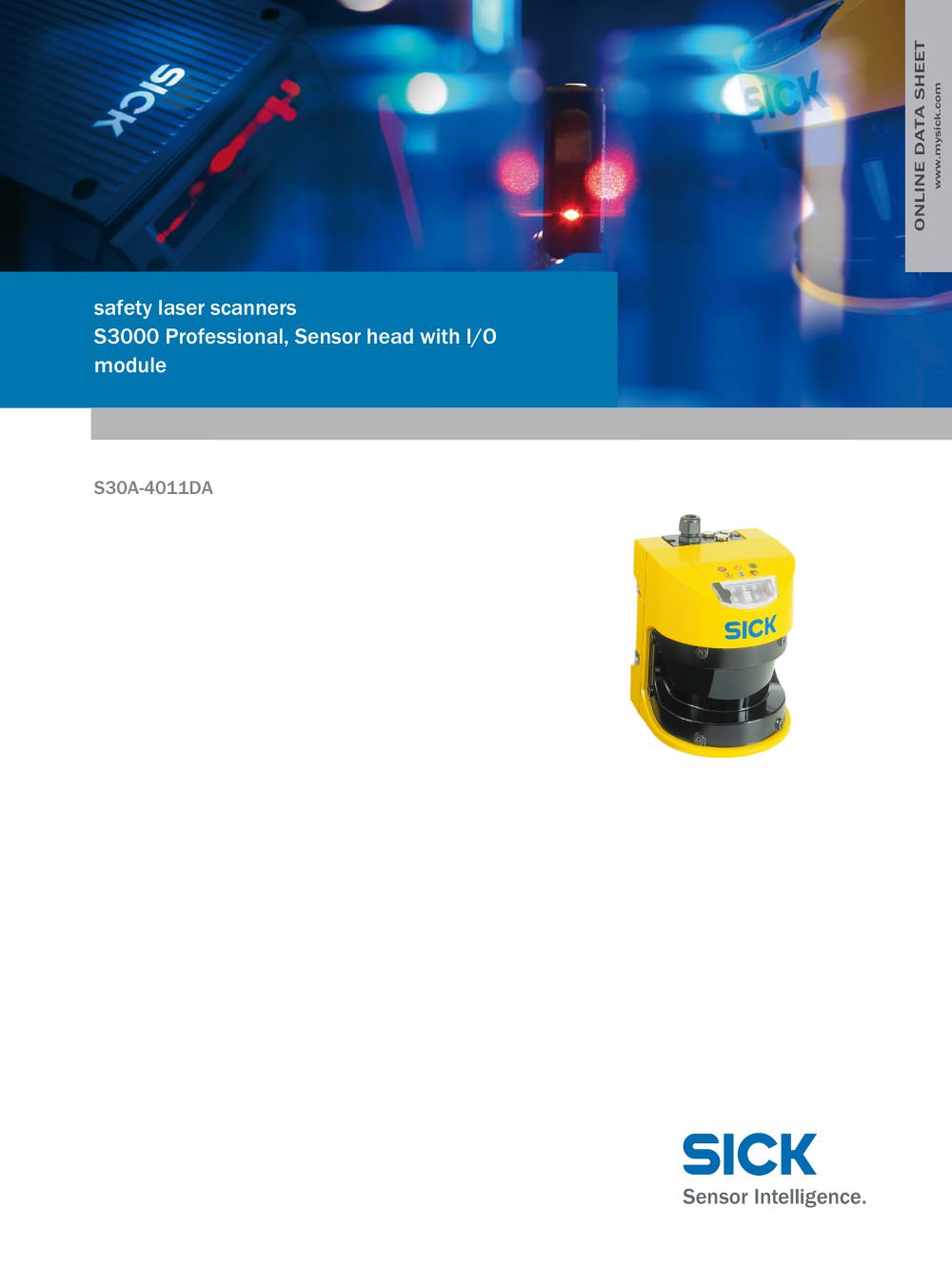

ONLINE DATA SHEET www.mysick.com safety laser scanners S3000 Professional, Sensor head with I/O module S30A-4011DA

Open the catalog to page 1

safety laser scannersAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA5/16/2011 9:28:27 AM safety laser scanners S3000 Professional, Sensor head with I/O module Model Name > S30A-4011DA Part No. > 1028936 At a glance • 8 switchable protective/warning fields • 4 static and 2 optionally dynamic inputs can be used for protective field switching • Freely configurable speed ranges • Protective field range of 4 m, 5.5 m or 7 m • Configuration memory in the system plug • Selectable resolutions Your benefits • Variable protective fields for change in vehicle speed Integration of...

Open the catalog to page 2

safety laser scannersAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA5/16/2011 9:28:27 AM 1) Depending on basic response time and multiple sampling Laser protection class: 1 (21 CFR 1040.10 and 1040.11, DIN EN 60825:2001) Enclosure rating: IP 65 (EN 60529) Protection class: II (EN 50178) Type: Type 3 (IEC/EN 61496-3) Safety integrity level: SIL2 (IEC 61508), SILCL2 (EN 62061) Category: category 3 (EN ISO 13849) Performance level: PL d (EN ISO 13849) PFHd: 7.67 * 1E-08 TM (Mission Time): 20 a Ambient operating temperature from ... to: -10 °C ... 50 °C Dimensions (W x H x...

Open the catalog to page 3

safety laser scannersAAAAAAAAAAAAA© SICK AG. Subject to change without notice.AAAAAAAAAAAAA5/16/2011 9:28:27 AM Dimensional drawing

Open the catalog to page 4

SICK AG | Waldkirch | Germany | www.sick.com USmod 4c int35 Australia Phone +61 3 9497 4100 1800 33 48 02 – tollfree E-Mail [email protected] Belgium/Luxembourg Phone +32 (0)2 466 55 66 E-Mail [email protected] Brasil Phone +55 11 3215-4900 E-Mail [email protected] Ceská Republika Phone +420 2 57 91 18 50 E-Mail [email protected] China Phone +852-2763 6966 E-Mail [email protected] Danmark Phone +45 45 82 64 00 E-Mail [email protected] Deutschland Phone +49 211 5301-301 E-Mail [email protected] España Phone +34 93 480 31 00 E-Mail [email protected] France Phone +33 1 64 62 35 00 E-Mail [email protected] Great Britain...
