Product overview Industrial Sensors
100Pages

{{requestButtons}}

Catalog excerpts

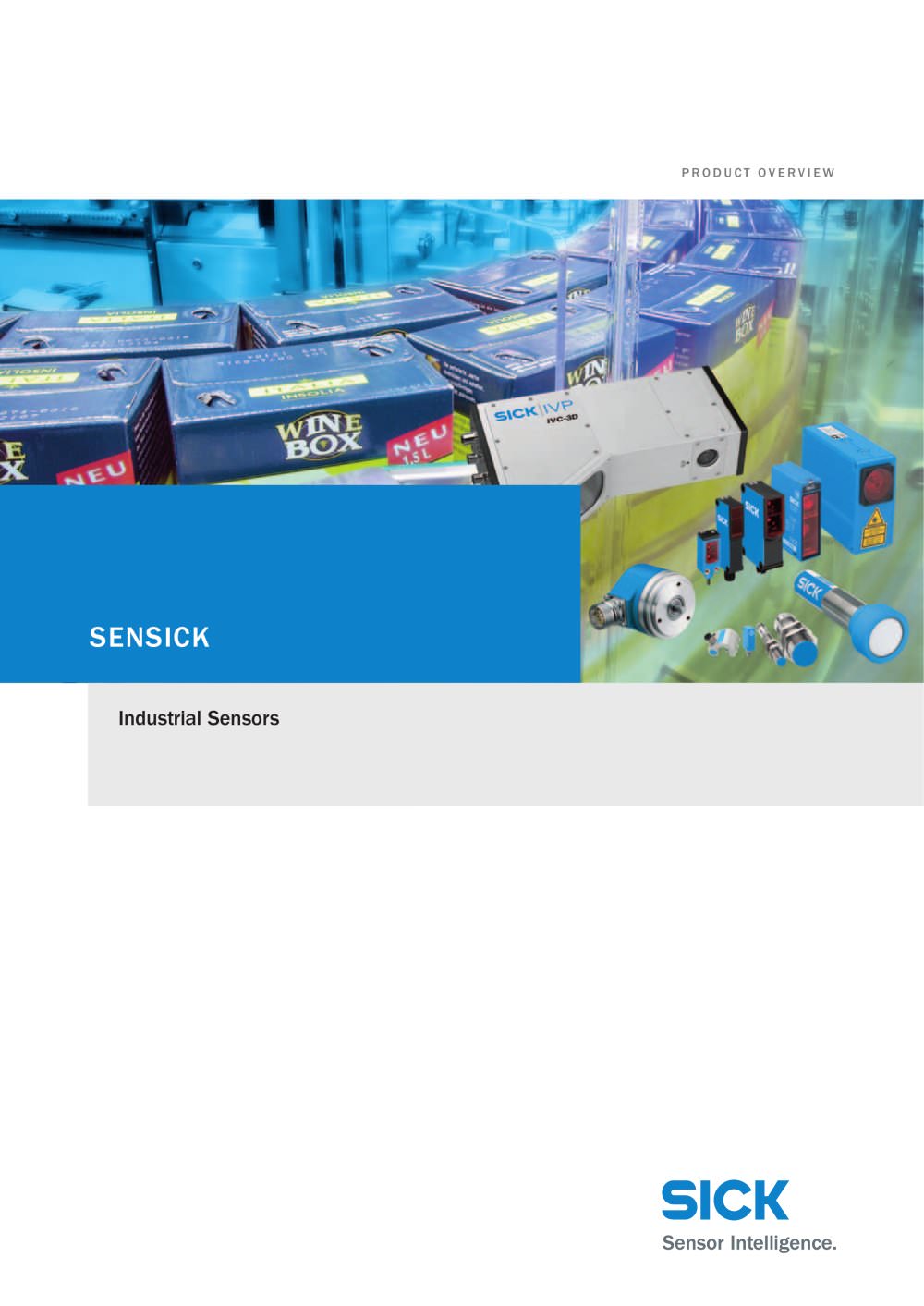

Product overview Industrial Sensors - 1

PRODUCT OVERVIEW

Open the catalog to page 1
Product overview Industrial Sensors - 4

Encoder Magnetic cylinder sensors Contrast-, Color-, Luminescence-, Sensors for profile cylinders with C-slot Transmission sensors Rotary encoders Sensors for profile cylinders with T-slot Contrast scanners Absolute encoders Sensors for tie-rod cylinders Color sensors Incremental encoders Sensors for integrated profile cylinders Luminescence scanners Sensors for round-body cylinders Fork sensors Linear encoders Sensors for cylinders with dovetail groove Absolute encoder Light grids Wire draw encoder Photoelectric switches and photoelectric Light grids proximity switches Reflex light grids...

Open the catalog to page 4
Product overview Industrial Sensors - 5

Encoders > Page 6 Ultrasonic sensors > Page 16 Inductive proximity sensors > Page 20 Capacitive proximity sensors > Page 30 Magnetic proximity sensors > Page 34 Magnetic cylinder sensors > Page 38 Photoelectric sensors and photoelectric proximity sensors > Page 44 C ontrast-, C olor-, L uminescence-, T ransmission sensors > Page 64 Light grids > Page 72 Distance sensors > Page 76 Machine Vision > Page 84 Accessories > Page 96 24-04-2006SICK5 size="-2">

Open the catalog to page 5
Product overview Industrial Sensors - 7

Incremental encoders, rotary > Incremental encoders generate information relat-ing to position and angle in the form of electricalimpulses. The number of pulses per revolution determines the resolving capability. The individual position is determined by counting these pulses from a point of reference. When the power is first switched on an initialising reference run is neededto determine absolute position. Absolute encoders, rotary > Absolute encoders generate information relatingto position, angle or number of revolutions in the form of unique codes. A unique code is assignedto each...

Open the catalog to page 7
Product overview Industrial Sensors - 8

Rotary encoders Incremental encoders Singleturn absolute encoders Multiturn absolute encoders Number of pulses from1to 10,000Zero-pulse Teach-in at the press of a button Opto-ASIC with chip-on- board technologyWide range of flanges andhollow shafts Various electrical interfaces Number of steps from 2 to 32,768Simple electronic zero-set at the push of a button or via a signal line Opto-ASIC with chip-on-board technologyWide range of flanges and hollow shafts Various interfaces Number of steps perrevolution from 2 to 8,192.Maximum number of revolutions: 8,192. The multiturn function is...

Open the catalog to page 8
Product overview Industrial Sensors - 9

Technical data DKS40 DRS60 Number of pulses per rotation 1 ...2,048 all conventional Any number of pulses numbers of pulses 1 ...8,192 Dimensions 50 mm ؘ 60 mm Interfaces/drivers Open Collector NPN, TTL/RS422, HTL/push pull TTL/RS422, HTL/push pull Supply voltage 4.5 ...5.5 V DC 4.5 ...5.5 V DC or 10 ...30 V DC or 10 ...32 V DC Approvals Solid shaft Servo flange 6 mm solid shaft Face mount flange 8 mm solid shaft 10 mm solid shaft Max. operating speed 6,000 min > 1 6,000/10,000 > 1) min > ֖1 Working temperature range 0 C ...+60 аC 20 ְC ...+85 C Connection type Cable can be used radially...

Open the catalog to page 9
Product overview Industrial Sensors - 10

Technical data DRS61 DGS60/DGS65/DGS66 Number of pulses per rotation Any number of pulses between 100 to 10,000 all conven- 1 ...8,192 programmable tional numbers of pulses by Programming Tool Dimensions 60 mm ؘ 60 mm Interfaces/drivers TTL/RS422, HTL/push pull TTL/RS422, HTL/push pull Supply voltage 4.5 ...5.5 V DC 4 ...6 V DC, or DC 10 ...32 V 10 ...30 V DC Approvals Solid shaft DGS60 Servo flange 6 mm solid shaft 6 mm solid shaft Face mount flange 10 mm solid shaft 10 mm solid shaft Max. operating speed 6,000/10,000 > 1) min > 1 6,000/10,000 > 1) min > ֖1 Working temperature range 20 ְC...

Open the catalog to page 10
Product overview Industrial Sensors - 11

Technical data DKV60 Resolution 2,000 pulses per 200 mm Dimensions of measuring drum 200 mm or 210 mm (o-ring) Surface of measuring drum Knurl DIN82-RAA 1, o-ring EPDM highly resistant to abrasion Interfaces TTL/RS422, HTL/push pull Operating voltage 4.5 ...5.5 V DC, 10 ...30 V DC Approvals Max. operating speed 1,500 min > 1 Working temperature range 0 ְC ...+60 C Connection type Universal cable Enclosure rating IP 65 > 24-04-2006SICK11 size="-1">

Open the catalog to page 11
Product overview Industrial Sensors - 12

Technical data ARS60 ATM60/ATM90 Singleturn encoder Multiturn encoder Resolution Any resolution from 8,192 steps per revolution 2 32,768 steps 8,192 revolutions (max. 25 bit with SSI) Dimensions Ř 60 mm 60 mm (ATM60) ؘ 93 mm (ATM90) Interfaces SSI or parallel (push-pull) SSI, RS 422 parameter interf., Profibus, DeviceNet, CANopen Supply voltage 10 ...32 V DC 10 ...30 V DC Approvals Solid shaft ATM60 Servo flange 6 mm solid shaft 6 mm solid shaft Face mount flange 10 mm solid shaft 10 mm solid shaft Max. operating speed 6,000/10,000 > 1) min > 1 6,000 min > ֖1 Working temperature range 20 ְC...

Open the catalog to page 12
Product overview Industrial Sensors - 13

Technical data PRF Incremental wire draw PKS Compact incremental encoder wire draw encoder Measurement range Up to 50 m Up to 5 m Resolution Up to 0.025 mm Up to 0.05 mm Reproducibility 1 measuring step ѱ3 measuring step Interfaces SSI, RS-422 parameter interf., TTL/RS 422 Profibus, DeviceNet, CANopen Operating voltage 4.5 ...5.5 V DC or 4.5 ... 5.5 V DC 10 ... 32V DC Approvals Working temperature range 20 ...+70 ְC 10 ...+70 ְC Connection type Screw-in system Screw-in system Enclosure rating Up to IP 64 Up to 52 Wire draw mechanism Measuring wire diameter 0.81 mm respectively 1.35 mm 0.6...

Open the catalog to page 13
Product overview Industrial Sensors - 14

Technical data BTF Absolute wire draw BKS Compact absolute encoder wire draw encoder Measurement range Up to 50 m Up to 5 m Resolution Up to 0.025 mm Up to 0.05 mm Reproducibility 1 measuring step ѱ3 measuring step Interfaces SSI,RS 422 parameter interf., SSI Profibus, DeviceNet, CANopen Supply voltage 10 ... 32 V DC 12 ... 30 V DC Approvals Working temperature range 20 ...+70 ְC 10 ...+70 ְC Connection type Screw-in system Screw-in system Schutzart Up to IP 64 Up to 52 Wire draw mechanism Measuring wire diameter 0.81 mm respectively 1.35 mm 0.6 mm Operating speed 4 m/s max. 3,5 m/s Drum...

Open the catalog to page 14
Product overview Industrial Sensors - 15

Technical data POMUX > KH53 Measurement range Up to 1,700 m Resolution 0.1 mm Reproducibility 0.3 mm Interfaces SSI, RS422, Profibus Operating voltage 10 ...32 V DC Ambient operating temperature Ζ20 ...+60 C Connection type Cable or round screwing system Enclosure rating IP 65/IP66 Max. process speed 6.6 m/s with continual measurement value output Approvals Scanning interval SSI 0.8 ms RS422 0.9 ms Profibus 1.1 ms > 24-04-2006SICK15 size="-1">

Open the catalog to page 15
