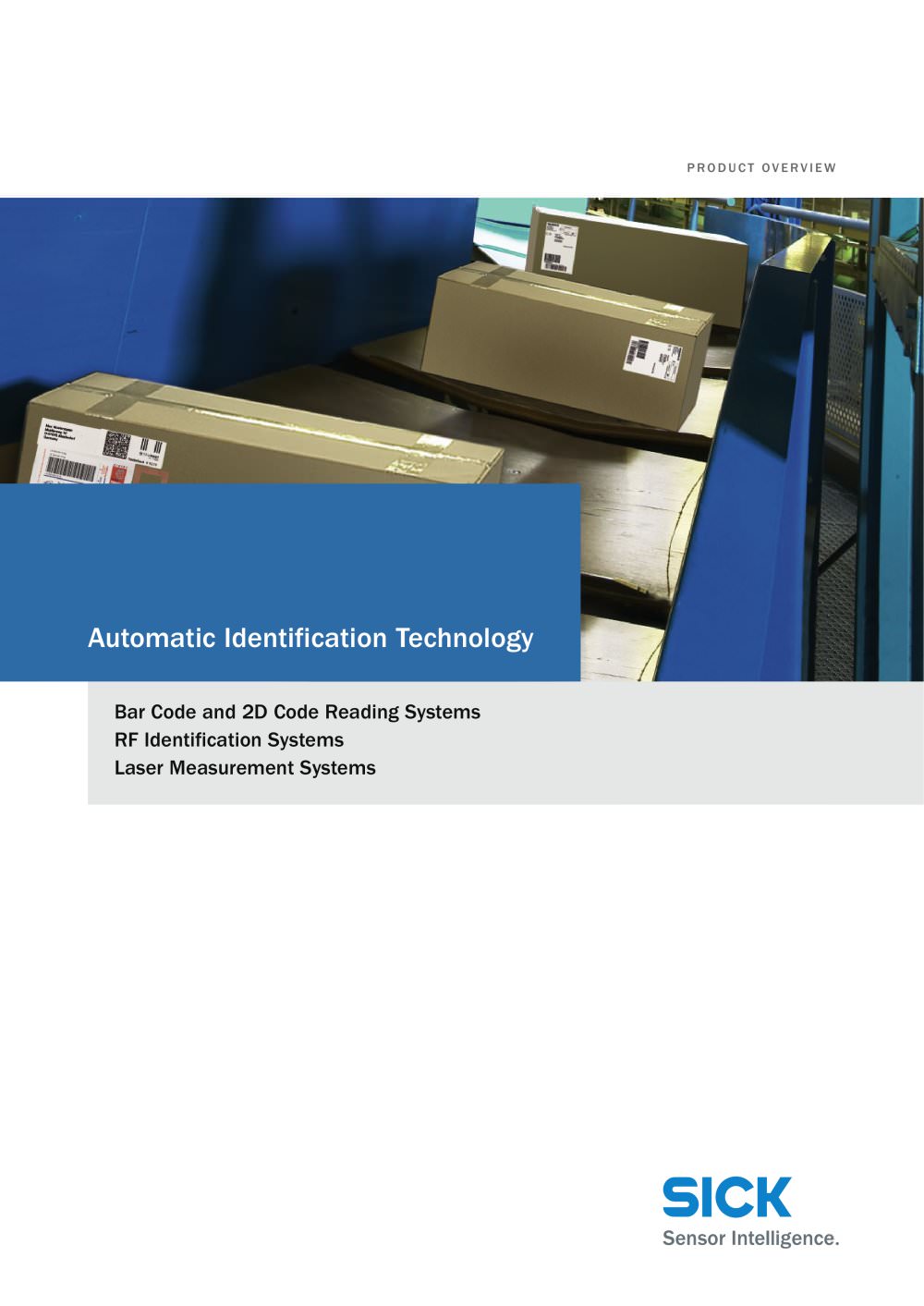

PRODUCT OVERVIEW Bar Code and 2D Code Reading SystemsRF Identification Systems Laser Measurement Systems >
Open the catalog to page 1SICK has a solution for your identification task. Any sys-tem has to be commercially viable so we also evaluate the cost parameters and use this as a basis for sug-gesting the best possible individual solution for you. Installation SICK service technicians install bar code and 2D code scanners, RFID systems, assembly frames and scanner networks world-wide. In doing so, they prepare the systems for commissioning. Engineering SICK engineering teams develop intelligent solu-tions and combine these to create individual systems. The SICK quality management system ensures that every aspect of...
Open the catalog to page 2Servicing Hotline SICK scanners and RFID systems are mainte-nance-free. However, it is recommended that they are cleaned and adjusted at regular inter-vals depending on external conditions. This also allows the operator to identify any altera-tions or damage and perform repairs to the application. Regular servicing guarantees that the system will provide the best possi-ble performance throughout its long operat-ing life. SICK sales organisations can be contacted via a free technical hotline. Most questions about SICK products can be answered quickly on the telephone. However, it can also be...
Open the catalog to page 3Special features Auto SetupProfile programming Setup button Bargraph for visualisation Raster scanner > Reading ranges Technical data > 0.250.350.5 0.20.350.5 0.20.350.5 Scanning frequencyOperating voltageData interfacesSwitching inputs/outputsDimensions (L, W, H)WeightEnclosure rating300 to 1,000 Hz5 V DC 5 % RS 232 (True, TTL) 2 x IN/3 x OUT 44.5/44.5/21.6 mm 57 g IP 52200 to 800 Hz5 to 30 V DCRS 232, RS 422/4852 x IN/3 x OUT 59/62/35 mm 250 g IP 65400 to 1,200 Hz10 to 30 V DC RS 232, RS 422/485, CAN 2 x IN/2 x OUT 59/62/35 mm 250 g IP 65 > 50100150200250300Reading distance (mm) Module...
Open the catalog to page 4Special features Adjustable focusSMART decoder Tracking software Host and Aux interfaces Oscillating mirror Optional heating for operating temperature down to 35 ְC Remote diagnostics > Reading ranges > 2004006008001000120014001600 60010001400180022000.350.30.5 Reading distance (mm) Module width (mm)0.350.30.5 Reading distance (mm) Module width (mm) Technical data Reading width max. 1,200 mm HD max. 1,600 mmLD ֖ max. 2,200 mmReading width max. 1,200 mm Scanning frequencyOperating voltageData interfacesSwitching inputs/outputsDimensions (L, W, H)WeightEnclosure rating600 to 1,200 Hz18 to 30...
Open the catalog to page 6Special features 2D imagerOperating temperature down to 10 ְC Green aiming line > Reading ranges > 0.19 Technical data Scanning frequencyOperating voltageData interfacesDimensions (L, W, H)WeightEnclosure ratingShock test270 Hz4.5 to 14 V DC RS 232 TTL/True, USB, keyboard wedge, wand emulation 163/135/81 mm 213 gIP 5450 drops from 2 mDepending on application5 V/9 V DC RS 232 TTL, USB, keyboard wedge 134/84/175 mm 270 g (IT6300) 330 g (IT6320 incl. battery) IP 54 50 drops from 2 m (IT6300) 25 drops from 2 m (IT6320) > 050100150200250300350 204060801001201400.130.250.5 Reading distance (mm)...
Open the catalog to page 9Special features OMNI bar code and Data Matrix code identification Auto Setup Ethernet assistant Code quality evaluation Host and Aux interfaces Megapixel CMOS technology > Reading ranges > 0.50.35 Technical data > 0204060801001200.50.350.2 8590951001051101150.50.350.25 5055606570 Scanning frequencyOperating voltageData interfacesSwitching inputs/outputsDimensions (L, W, H)WeightEnclosure rating25 Hz10 to 30 V DC RS 232, RS 422/485, CAN, Ethernet 2 x IN/2 x OUT 112/80/39 mm 900 g IP 6515 kHz10 to 30 V DC RS 232, RS 422/485, CAN, Ethernet 2 x IN/2 x OUT 115/80/39 mm 900 g IP 6545 kHz10 to 30...
Open the catalog to page 10Reading ranges Special features RF interrogator (reader/writer for passive transponders) Compatible with ISO/IEC- 15693, ISO 18000-3 Mode 1 Simultaneous reading of max. 50 transponders per second > 05001,0002 W 05001,0002 W 01,0002,0002 W4 W Reading/writing distance (mm) Output power Reading/writing distance (mm) Output power Reading/writing distance (mm) Output power Application areas Technical data Theoretically achievable read-ing/writing distance. Dependent on the antenna, output power, transponder type and environ- ment. High-bay warehouse management Tote and pallet handling Automotive...
Open the catalog to page 12Reading ranges > 0.20.250.3 Special features Airport Luggage Identification System Bar code identification in all positions SMART decoder Modular concept Host and Aux interfaces Scanners will be custom- designed and custom- mounted Remote diagnostics > 60010001400180022000.5 14003000200015002500Reading distance (mm) Module width (mm) Reading distance (mm) Module width (mm) Suited for T-codes and linear codesVariable widths and multi-side reading possible Suited for bar codes and 2D codesVariable widths and multi- side reading possible Application areas Technical data Airport luggage...
Open the catalog to page 14Special features Object size (L x W x H): min. 50/50/50 mm (1.2 m/s) min. 100/100/50 mm (2 m/s) max. 2.5/1/1 m Scale interval: d = 5 mm at v = 1.2 m/s d = 10 mm at v = 2.0 m/s > Technical data Scanning frequencyOperating voltageData interfacesSwitching inputs/outputsDimensions (L, W, H)WeightEnclosure ratingMax. 500 Hz24 V DC 15 % RS 232/RS 422, Ethernet 6 x IN/4 x OUT 179/130/106 mm2.3 kgIP 54/IP 65Max. 500 Hz24 V DC ѱ 15 % RS 232/RS 422, Ethernet 6 x IN/4 x OUT 179/130/106 mm4.6 kg (2 sensors)IP 54/IP 65Max. 75 Hz115/230 V AC +10 %/15 % RS 232/RS 422/485, Ethernet 3 x IN/5 x OUT...
Open the catalog to page 15Special features Diagnosis LEDsConfiguration switches Termination resistor for network configuration Closed lid installation Connection diagram integrated in the lid Extension slot for additional module > Technical data Operating voltageData interfacesSwitching inputs/outputsDimensions (L, W, H)WeightEnclosure rating18 to 30 V DCRS 232, RS 422/485, CAN (depending on scanner type), service interface (Aux) 2 x IN/2 (3) x OUT 124/113/54 mm 250 g (without accessories) IP 6518 to 30 V DC (100 to 250 V AC) RS 232, RS 422/485, CAN (depending on scanner type), service interface (Aux) 2 x IN/2 (3 or...
