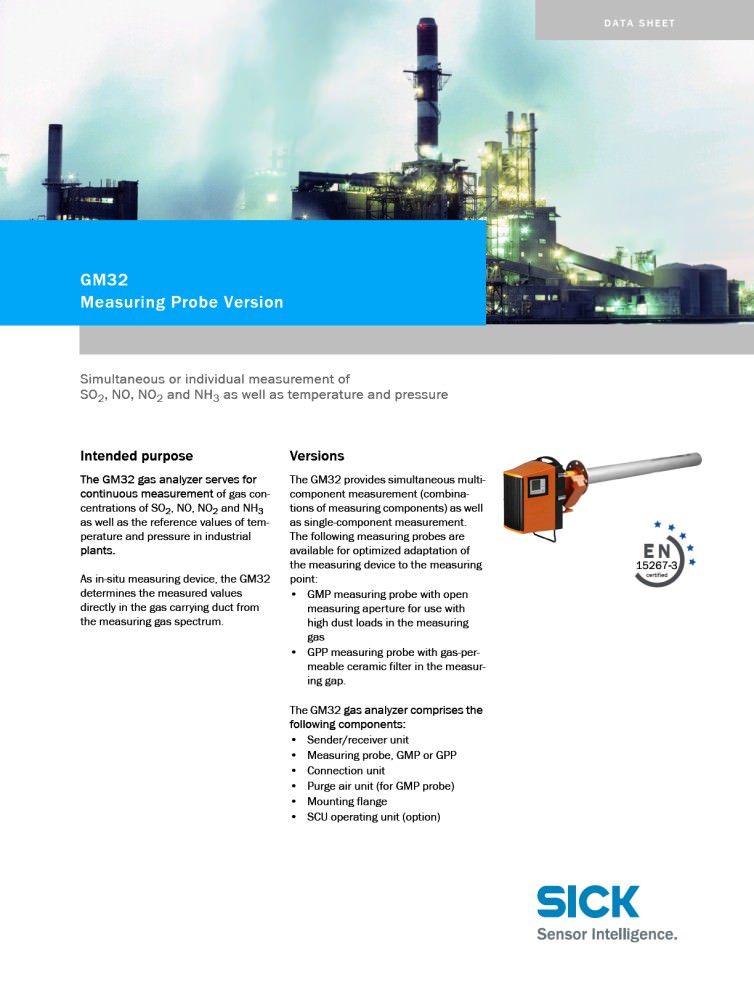

Intended purpose The GM32 gas analyzer serves for continuous measurement of gas concentrations of SO2, NO, NO2 and NH3 as well as the reference values of temperature and pressure in industrial plants. As in-situ measuring device, the GM32 determines the measured values directly in the gas carrying duct from the measuring gas spectrum. Versions The GM32 provides simultaneous multicomponent measurement (combinations of measuring components) as well as single-component measurement. The following measuring probes are available for optimized adaptation of the measuring device to the measuring point: • GMP measuring probe with open measuring aperture for use with high dust loads in the measuring gas • GPP measuring probe with gas-permeable ceramic filter in the measuring gap. The GM32 gas analyzer comprises the following components: • Sender/receiver unit • Measuring probe, GMP or GPP • Connection unit • Purge air unit (for GMP probe) • Mounting flange • SCU operating unit (option) Simultaneous or individual measurement of SO2, NO, NO2 and NH3 as well as temperature and pressure DATA SHEET GM32 Measuring Probe Version certified

2 GM32 | SICK Project planning and preparation Project planning of the measuring device is very important to ensure unrestricted function and efficient start-up. The main requirements and preparations at the installation site as well as a wiring example with connection options are described in the following. Requirements at the installation site • Determination of measuring point – Provide for an unhindered inlet and outlet paths. – Provide for calibration openings at easily accessible places. Ensure that the measuring device and the calibration probe do not influence each other; provide for...

GM32 | SICK 3 Wiring and connections The Figure below shows a wiring example with the connections of the GM32 components. See the Operating Instructions for details for the concrete connection assignments, e.g. from the connection unit. Wiring example: Measuring probe version Measuring probe Sender/receiver unit (SR) Purge air unit SLV 4 (for GMP measuring probe) Connection unit (AE) For wiring and technical data, see Data Sheet SLV4 (3) (5) (4) (6) (3) connection: Purge air attachement (4) connection: Power supply (5) connection: CAN cable (6) connection: PC/network SOPAS ET (3) (1) (4) (5)...

4 GM32 | SICK Technical Data Technical Data GM32 Measuring Parameters Measuring principle Differential Optical Absorption Spectroscopy (DOAS) Measured components SO2, NO, NO2, NH3 thereof TÜV-tested for suitability: SO2, NO Available measuring ranges (calibration ranges) Min. Max. TÜV tested for suitability at T = 140 °C and active measuring path = 1.25 m SO2: 0 … 40 mg/m3Operation•m 0 … 20.000 mg/m3Operation•m 0 … 75 mg/m3Standard NO: 0 … 50 mg/m3Operation•m 0 … 2.500 mg/m3Operation•m 0 … 70 mg/m3Standard NO2: 0 … 100 mg/m3Operation•m 0 … 2.000 mg/m3Operation•m – NH3: 0 … 25 mg/m3Operation•m...

GM32 | SICK 5 General information System components • Sender/receiver unit • Measuring probe with purge air fixture – Type GMP with open measuring aperture or – Type GPP, gas diffusion probe • Flange (option) • Purge air unit with GMP probe: See Operating Instructions SLV4 • Connction unit • SCU operating unit: See Operating Instructions SCU Dimensions (L x W x H) (see Dimensions) • Sender/receiver unit (including purge air fixture): 586 x 315 x 580 mm • Measuring probes: See ¨ P. 7, Fig. 3, ¨ P. 7, Fig. 4 • Connection unit: 450 x 400 mm, ¨ P. 8, Fig. 6 • Purge air unit SLV4: 550 x 550 x 270...

6 GM32 | SICK Dimensions Fig. 2 GM32 sender/receiver unit The housing of the sender/receiver unit can be swiveled open to the left or right of the device flange (max. 180°/105°).

Fig. 3 GM32 measuring probe, type GMP – open measuring probe Fig. 4 GM32 measuring probe, type GPP – gas diffusion probe

SICK MAIHAK GmbH | Germany Nimburger Str. 11 | D-79276 Reute | www.sick.com Phone +49 7641 469-0 | Fax +49 7641 469-1149 | [email protected] 8012710/2009-02• Printed in Germany • Subject to modifications • Specified product characteristics and technical data do not serve as guarantee declarations Fig. 5 Mounting flange Fig. 6 Connection unit ø 240 ø 178 ø 125 ø 133 14 240/500 8 18 45° 200 M20
