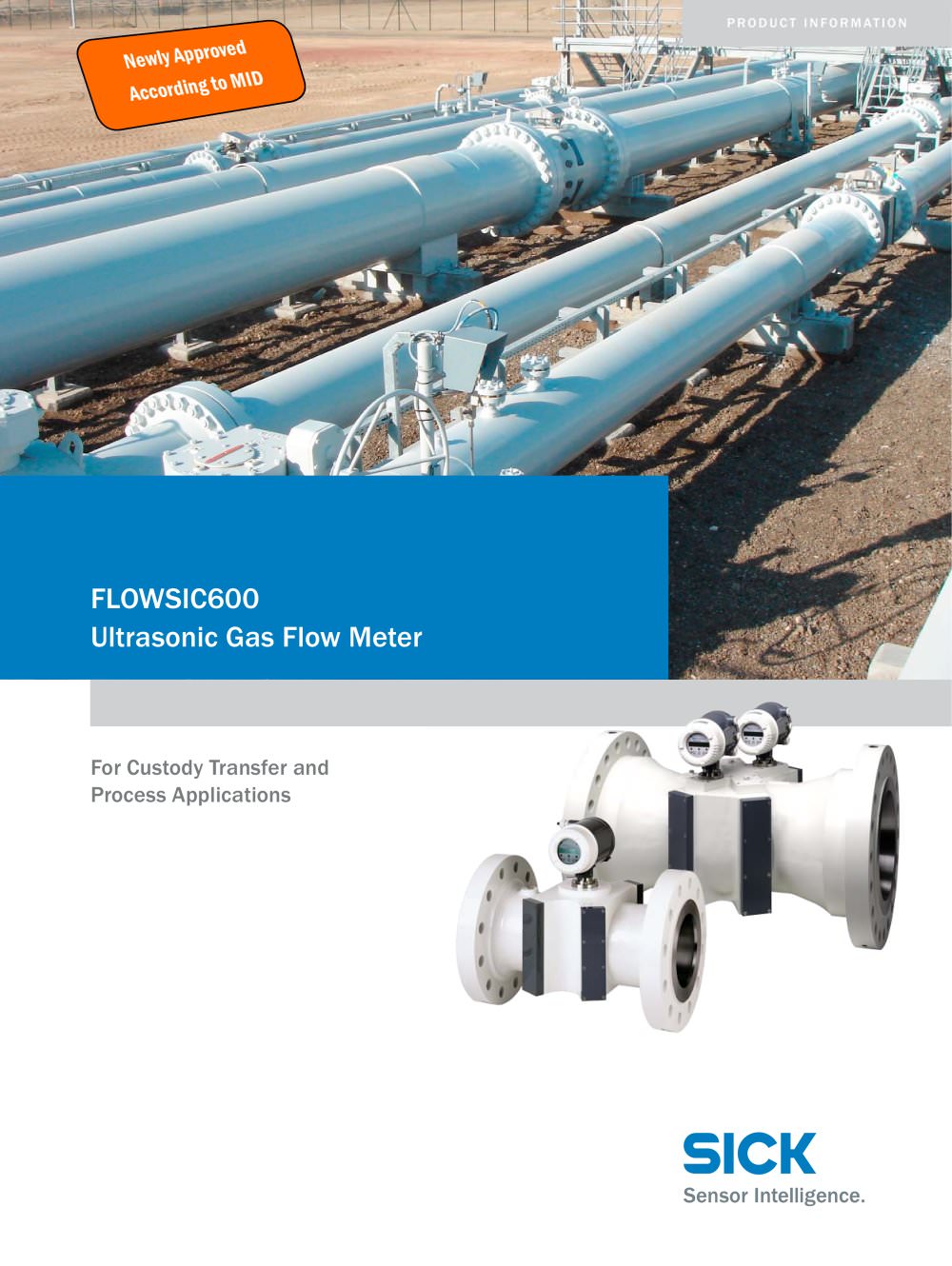

ve d Newly Appro MID According to FLOWSIC600 Ultrasonic Gas Flow Meter For Custody Transfer and Process Applications P r o d uct I n fo r matio n

FLOWSIC600 Gas flow measurement for process and custody applications A r e as of A pplicatio n • Fiscal metering • Natural gas production, transportation, distribution and storage • Onshore and offshore applications • Dry, wet, corrosive and abrasive gases FLOWSIC600 4 - P at h FLOWSIC600 2 - P at h • Process control • Power plants, refineries and chemical industry • Steam and cryogenic • Process gases like N2, O2, H2, CO2, Cl2 etc. • Gases like sour gas or biogas with high H2S content FLOWSIC600 2plex • 4 path • 4 + 1 path • 2" ... 48"/ DN50 ... DN1200 • 3" ... 48"/ DN80 ... DN1200 • 3" ......

S y st e m C ompo n e n ts Signal Processing Unit (SPU) Pressure tap Marking for positive flow direction Meter body with flanges Flange Ultrasonic transducers L e a d i n g E d g e T r a n s d uc e r T e c h n olog y The heart of an ultrasonic flow meter is the ultrasonic transducer. The sealed, titanium transducer design, and the working frequencies of 135 kHz, 210 kHz and 350 kHz, permit using the FLOWSIC600 in virtually all applications in gas flow metering – dry or wet, corrosive or ultrasonically noisy. This characteristics are complemented by a temperature range of –194 °C ... 280 °C (–317...

Meter characteristics Measuring parameters Natural gas, process gases, air Measured value Volume flow (actual and standard), volume (actual and standard), velocity of gas, speed of sound Pressure range 0 barg ... 250 barg; up to 450 barg on request (0 ... 3600 psig; up to 6500 psig on request) Typical uncertaintyl: 4 paths: ±0.5 % (dry calibrated), ±0.2 % (after flow calibration + adjustment with constant factor) ±0.1 % (after flow calibration + adjustment with polynomial correction) CSA: Class I, Division 1, Groups D T4; Class I, Division 2, Groups D T4 _Class I, Division 1, Groups B,C,D T4;...
