Explosion proof electric pedestrian stackers- Zone 2

Product catalog summary

Overview: The document provides detailed information about Sichelschmidt's range of electric pedestrian stackers and trucks designed for explosion hazardous environments, specifically categorized under 3G/3D (Zone 2/22). These products are engineered for efficient load handling in narrow warehouse and production aisles.

Specifications:

d 400 EEx Z2/22: Compact design for transporting and stacking loads up to 2000kg in explosion hazardous areas.
d 100 EEx Z2/22: Ideal for horizontal transportation of pallets, capable of lifting 2500kg with a low tare weight.
d 1200 EEx: Versatile reach stacker with high load capacities and lifting heights, suitable for various applications.
d 500 EEx Z2/22: Designed for handling non-standard loads and GMA pallets with wide base-legs and hook type forks.

Safety and Certification: All equipment is explosion-proof and certified by TUV Nord CERT GmbH & Co. KG for use in 3G/3D hazardous areas. For North America, NRTL approved EE rated equipment is available for specific hazardous classes and divisions.

Technology and Benefits: Powered by electric three-phase ASM-AC motor technology, offering reduced maintenance costs, improved uptime, increased productivity, reduced energy consumption, and programmable driving characteristics.

Options: The d 100 and d 400 models can be equipped with a fold-down or fixed rider platform, allowing travel speeds up to 10 km/h as a rider truck and 6 km/h in pedestrian mode. The d 400 EEx B option includes a base lift for handling bumps and slopes.

Contact Information: Sichelschmidt's contact details are provided for further inquiries.

Catalog excerpts

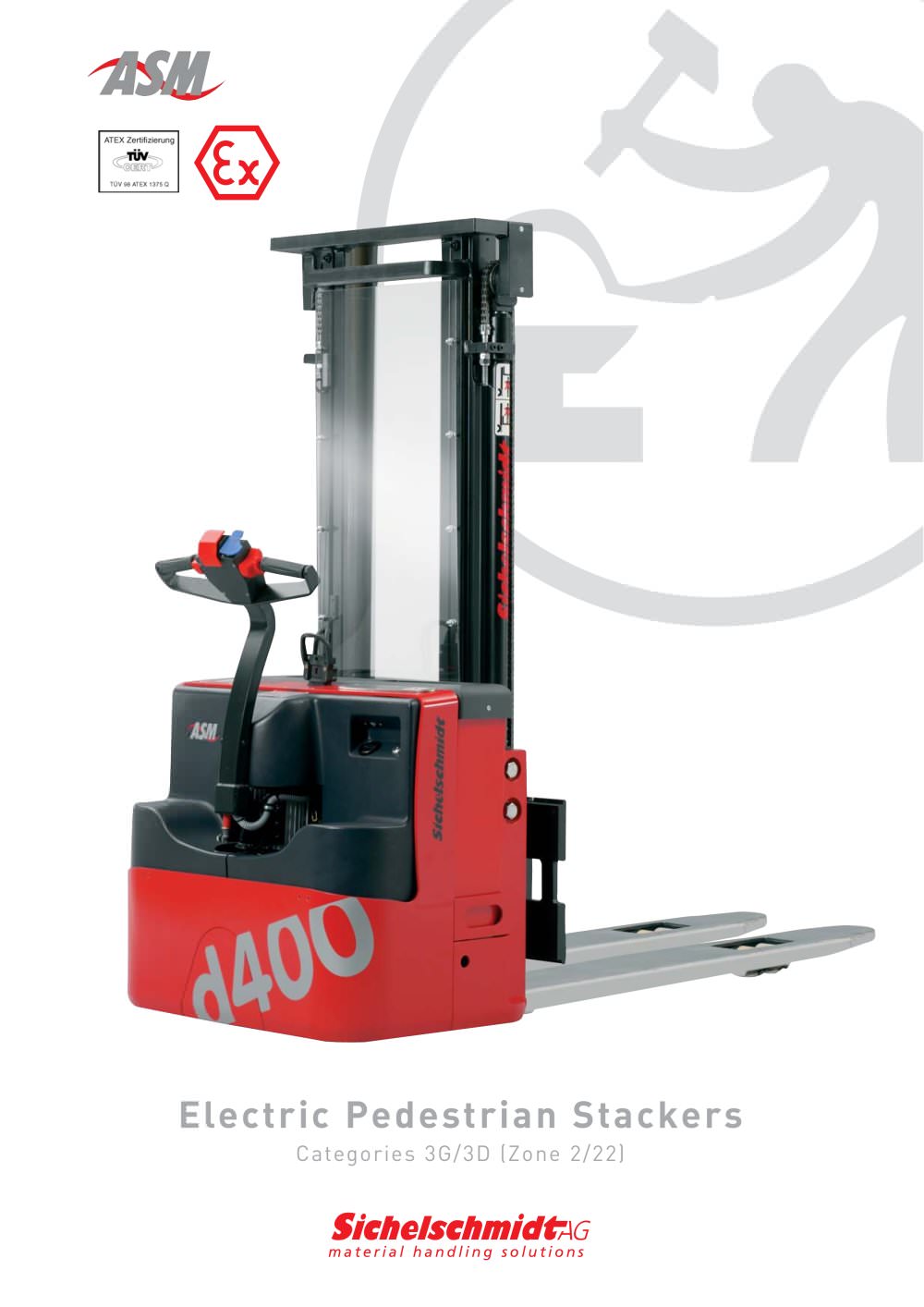

Explosion proof electric pedestrian stackers- Zone 2-1

Electric Pedestrian Stackers Categories 3G/3D (Zone 2/22)

Open the catalog to page 1

Explosion proof electric pedestrian stackers- Zone 2-2

Electric Pedestrian Stacker d 400 EEx When things get tight, the d 400 EEx Z2/22 will show its skills. The compact design of the stacker ensures an orderly flow of loads weighing up to 2000kg along narrow warehouse and production aisles. The d 400 EEx Z2/22 is engineered to transport and stack (Euro) pallets and containers in 3G/3D explosion hazardous environments. Electric Pedestrian Pallet Truck d 100 EEx The d 100 EEx Z2/22 is small, compact and ideal for the horizontal transportation of pallets and containers. EX protected and built with the renown Sichelschmidt quality, it can lift 2500kg...

Open the catalog to page 2

Explosion proof electric pedestrian stackers- Zone 2-3

Electric Pedestrian Reach Stacker d 1200 EEx The pedestrian reach truck is the most versatile unit we offer. With its compact design, tight right angle stacking capabilities, high load capacities and impressive lifting heights, the d 1200 EEx offers a solution for almost every application. This truck is the ideal link between warehousing and production. The universal design allows for a variety of attachments to be added and removed through a quick disconnect hydraulic sys - tem. Electric Pedestrian Straddle Stacker d 500 EEx With its wide base-legs, the d 500 EEx Z2/22 is designed for handling...

Open the catalog to page 3
